Fuel Damper Valve: Removal

  1. Release fuel pressure. Refer to FUEL .
  2. Remove fuel damper valve from fuel delivery and return lines.
CAUTION: Right and left portion of fuel damper valve are not identical. Do not confuse them when installing.
Right and left portion of fuel damper valve are colored differently on their upper side. The RH portion is colored olive, and the LH portion is colored yellow.

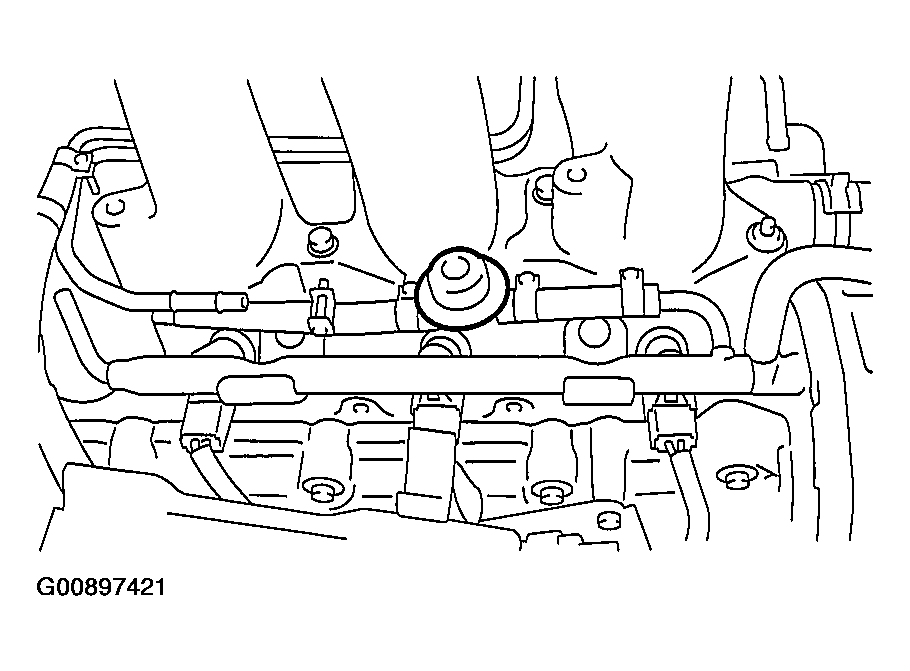

Fig 1: Removing Fuel Damper Valve From Fuel Delivery And Return Lines
G00897421Courtesy of SUBARU OF AMERICA, INC.
