Camshaft Position Sensor: Removal

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00897230Courtesy of SUBARU OF AMERICA, INC.
  2. Remove ground cable from fuel pipe protector RH.

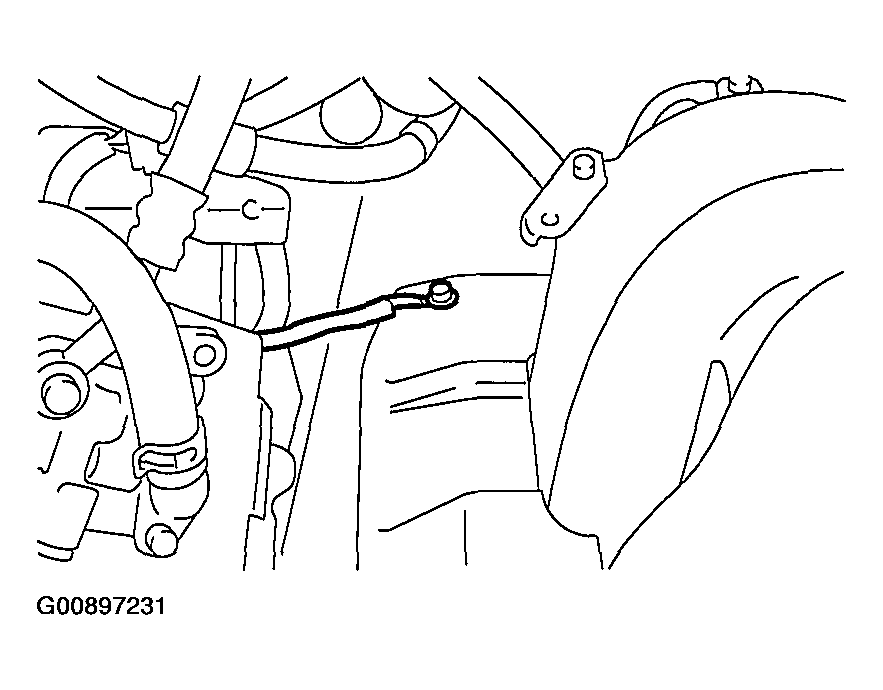

    Fig 2: Removing Ground Cable
    G00897231Courtesy of SUBARU OF AMERICA, INC.
  3. Remove fuel pipe protector RH.

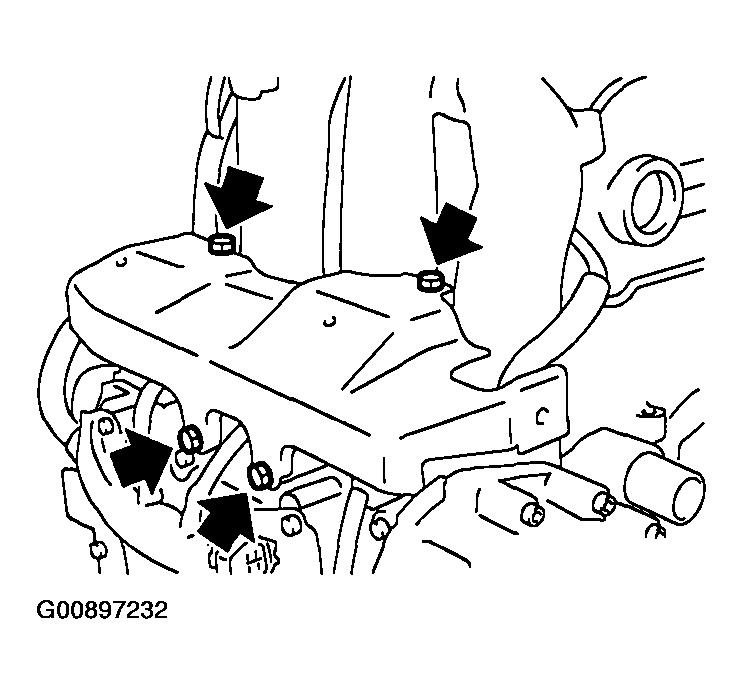

    Fig 3: Removing Fuel Pipe Protector
    G00897232Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect connector from camshaft position sensor.
  5. Remove camshaft position sensor.
    Fig 4: Removing Camshaft Position Sensor
    G00897233Courtesy of SUBARU OF AMERICA, INC.
