Home >> Subaru >> 2004 >> Outback Base, 4D Sedan >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Lubrication (H6DO) >> General Description >> Component

Lubrication (H6DO): General Description: Component

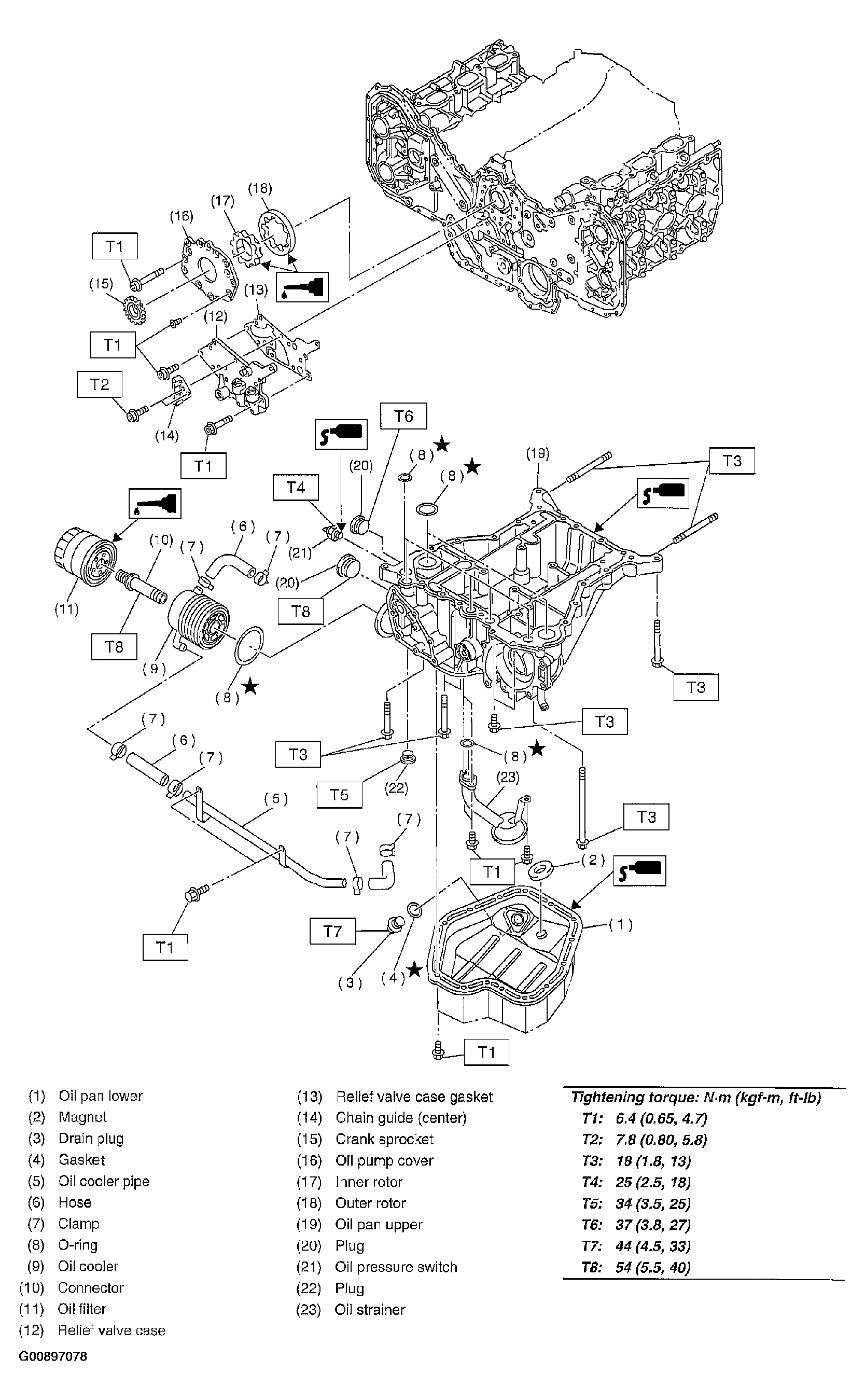

Fig 1: Lubrication System Replacement Components With Torque Specifications

G00897078

Courtesy of SUBARU OF AMERICA, INC.
