Fuel Filter: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
NOTE: The fuel filter is built in fuel pump assembly.
  1. Release the fuel pressure. Refer to FUEL .
  2. Remove the fuel pump assembly. Refer to FUEL PUMP .
  3. Disconnect the ground cable from filter holder.

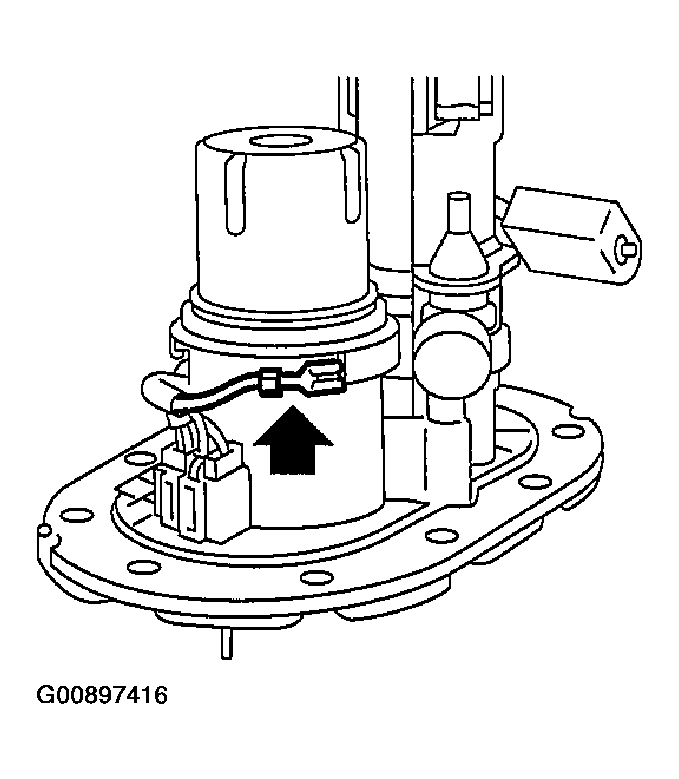

    Fig 1: Disconnecting Ground Cable From Filter Holder
    G00897416Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the filter holder by turning it to the left from the body pawls, and then take out the filter.

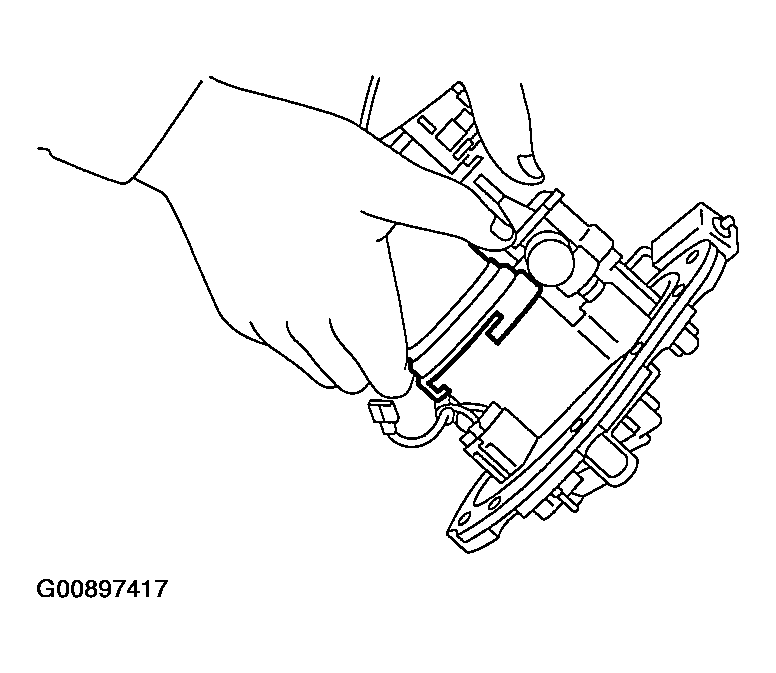

    Fig 2: Removing Filter Holder By Turning It To Left From Body Pawls
    G00897417Courtesy of SUBARU OF AMERICA, INC.
