Transmission Control Module Connector End Views - Without VDC System & Sport Shift

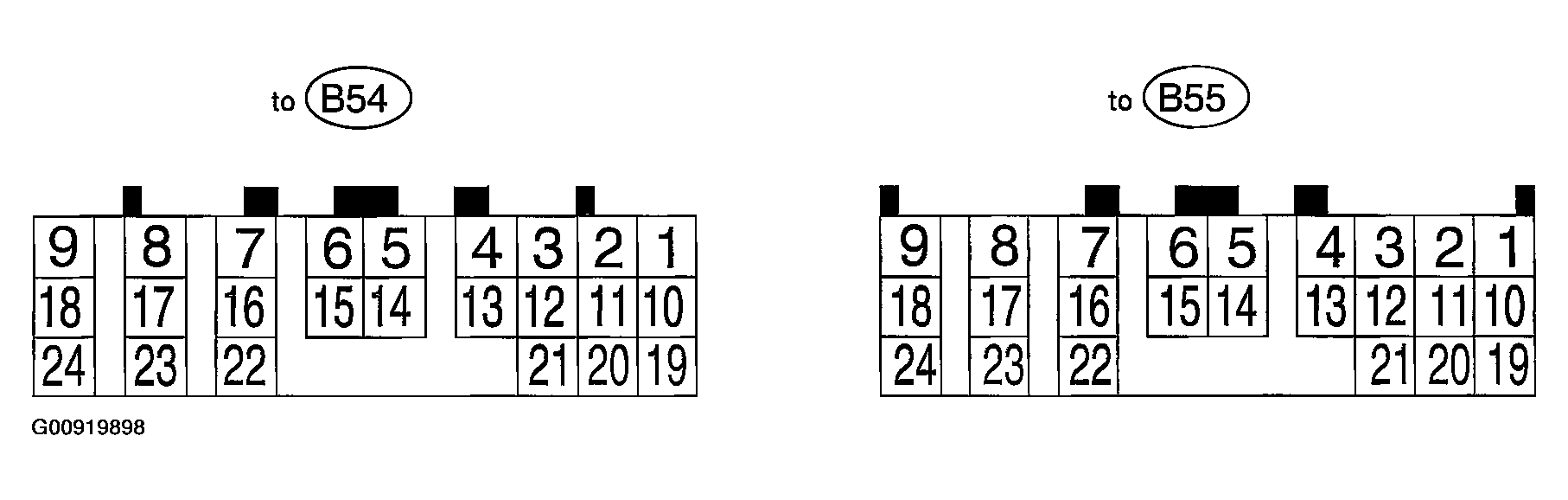

Fig 1: Transmission Control Module Connector End Views - Without VDC System & Sport Shift
G00919898Courtesy of SUBARU OF AMERICA, INC.
