Hydraulic Control Unit (H/U)

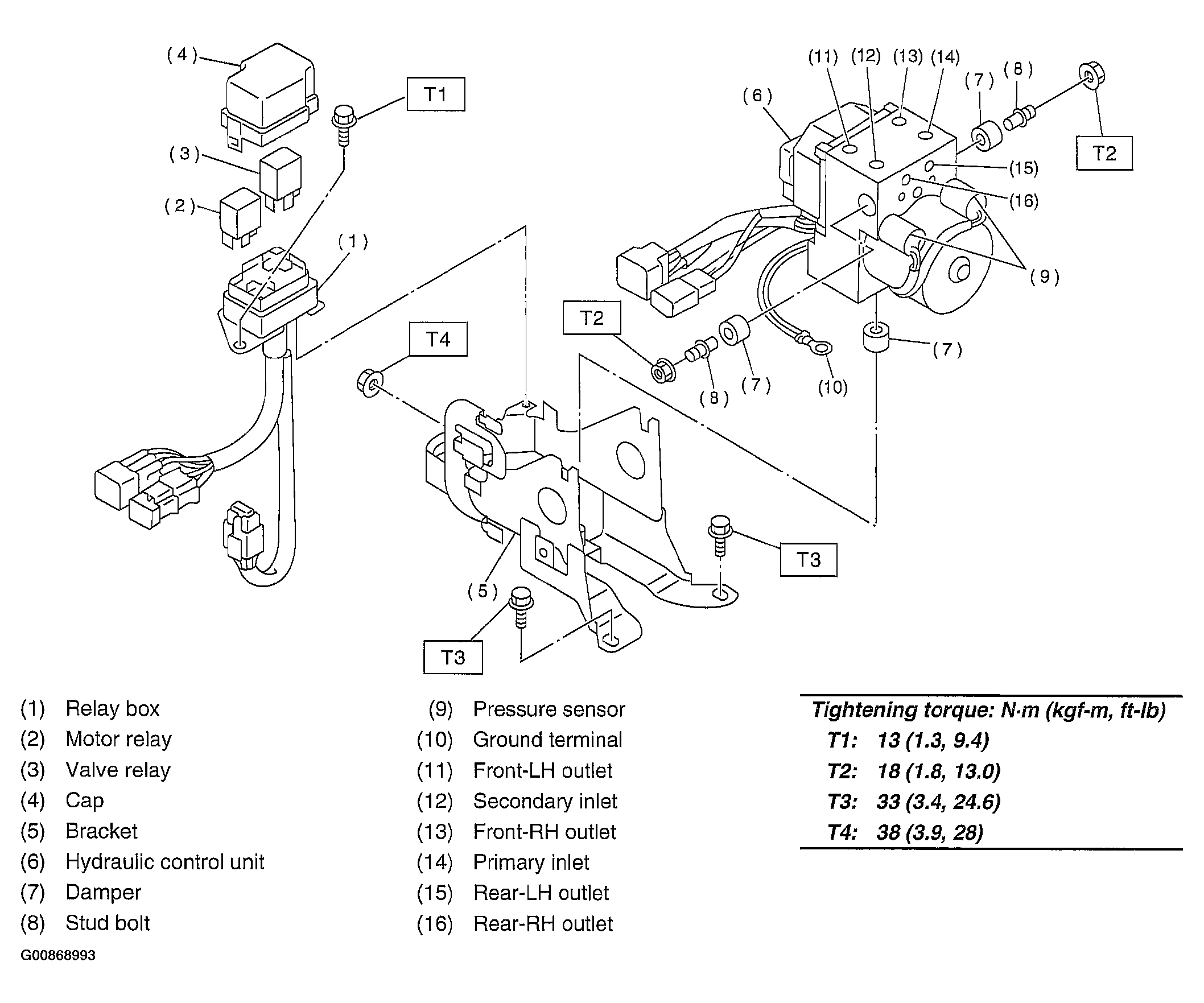

Fig 1: Identifying Hydraulic Control Unit (H/U)
G00868993Courtesy of SUBARU OF AMERICA, INC.
