Switch Back Gate: Assembly
Install in the reverse order of removal.
NOTE:

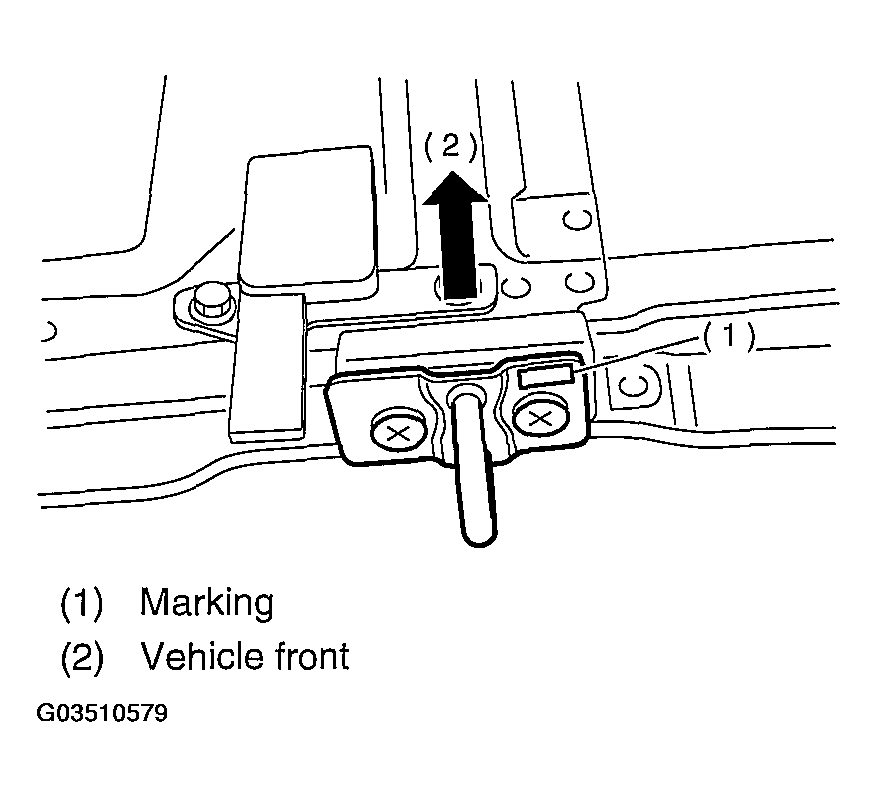

- Install striker with marked portion facing vehicle front.
- There are left/right indicating marks on the switch back gate hinge. When installing, do not mistake the direction.
GATE HINGE MARKING SPECIFICATION
| Marking | |
|---|---|
| RH | 65R |
| LH | 65L |
Tightening torque:
Release lever:
7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
Striker:
18 N.m (1.8 kgf-m, 13 ft-lb)
