Fender Panel: Removal

  1. Disconnect ground cable from battery.
  2. Remove side sill spoilers. Refer to REMOVAL , Side Sill Spoiler. (If fitted)
  3. Remove side protectors and fender protectors. (OUTBACK)
  4. Remove front bumper face. Refer to REMOVAL , Front Bumper.
  5. Remove headlights. Refer to REMOVAL , Headlight Assembly.
  6. Remove mud guard. Refer to REMOVAL , Mud Guard.
  7. Remove bolts and clips to remove front fender.

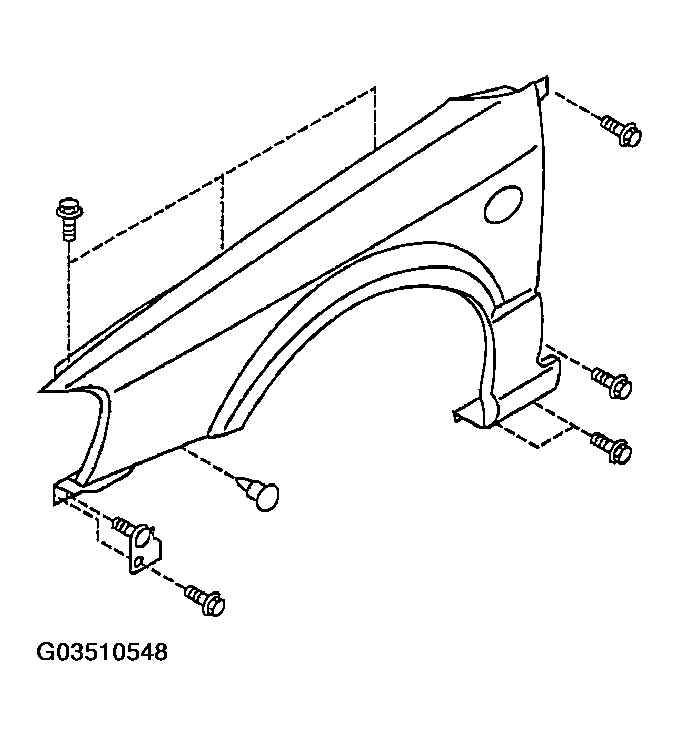

    Fig 1: Removing Bolts & Clips To Front Fender
    G03510548Courtesy of SUBARU OF AMERICA, INC.
