Tail Gate Latch Assembly: Removal

Remove tail gate tray. Refer to REMOVAL , Tail Gate Tray.
Remove tail gate cover.

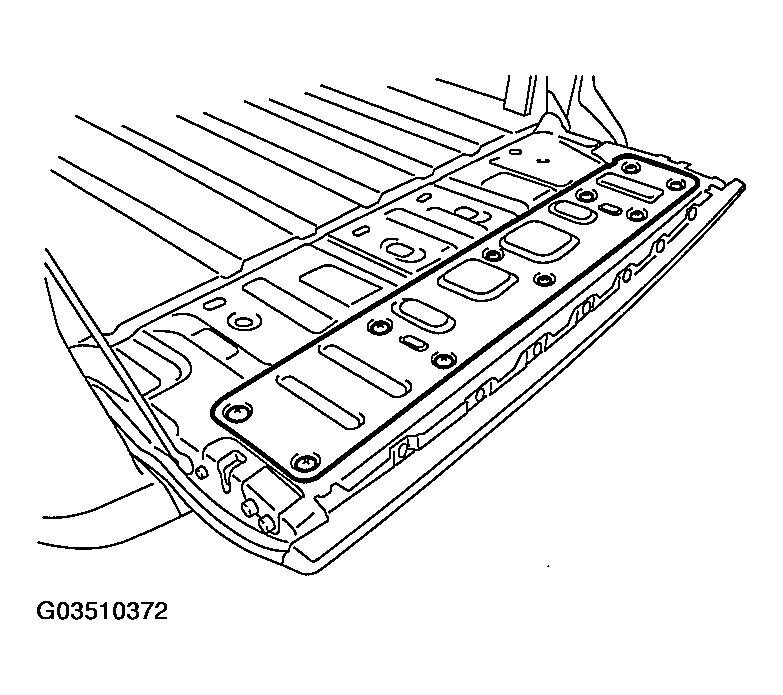

Fig 1: Removing Tail Gate Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove rod clamp.

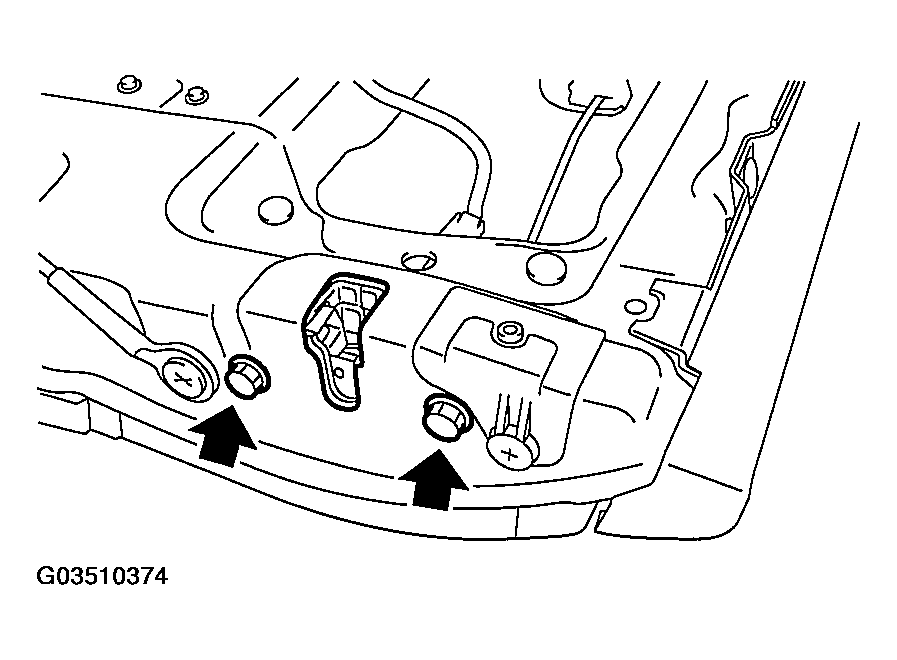

Fig 2: Removing Rod Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts and tail gate latch.

Fig 3: Removing Bolts Of Tail Gate Latch
Courtesy of SUBARU OF AMERICA, INC.
