Rear Gate Latch Assembly: Removal

  1. Disconnect ground cable from battery.
  2. Remove the rear gate trim (lower). Refer to REMOVAL , Rear Gate Trim.
  3. Remove the rear gate key cylinder rod.
  4. Remove the rear gate outer handle. Refer to REMOVAL , Rear Gate Outer Handle.
  5. Remove the three bolts.

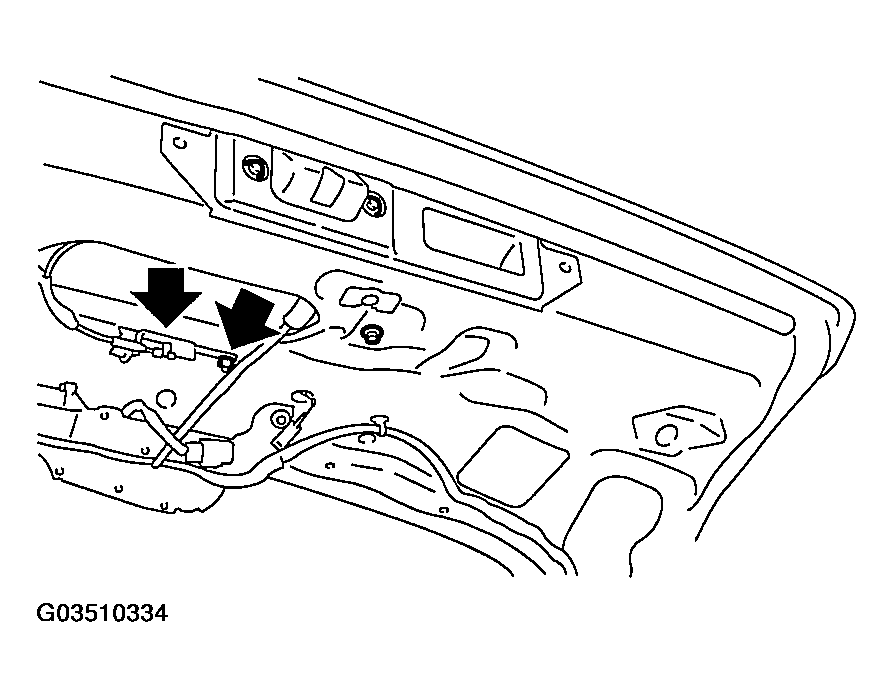

    Fig 1: Removing Rear Gate Outer Handle
    G03510334Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the two connectors and pull out the latch.
