General Diagnostic Table: Inspection: Engine

NOTE: Malfunction of parts other than those listed is also possible. < Ref. to ENGINE TROUBLE IN GENERAL .>

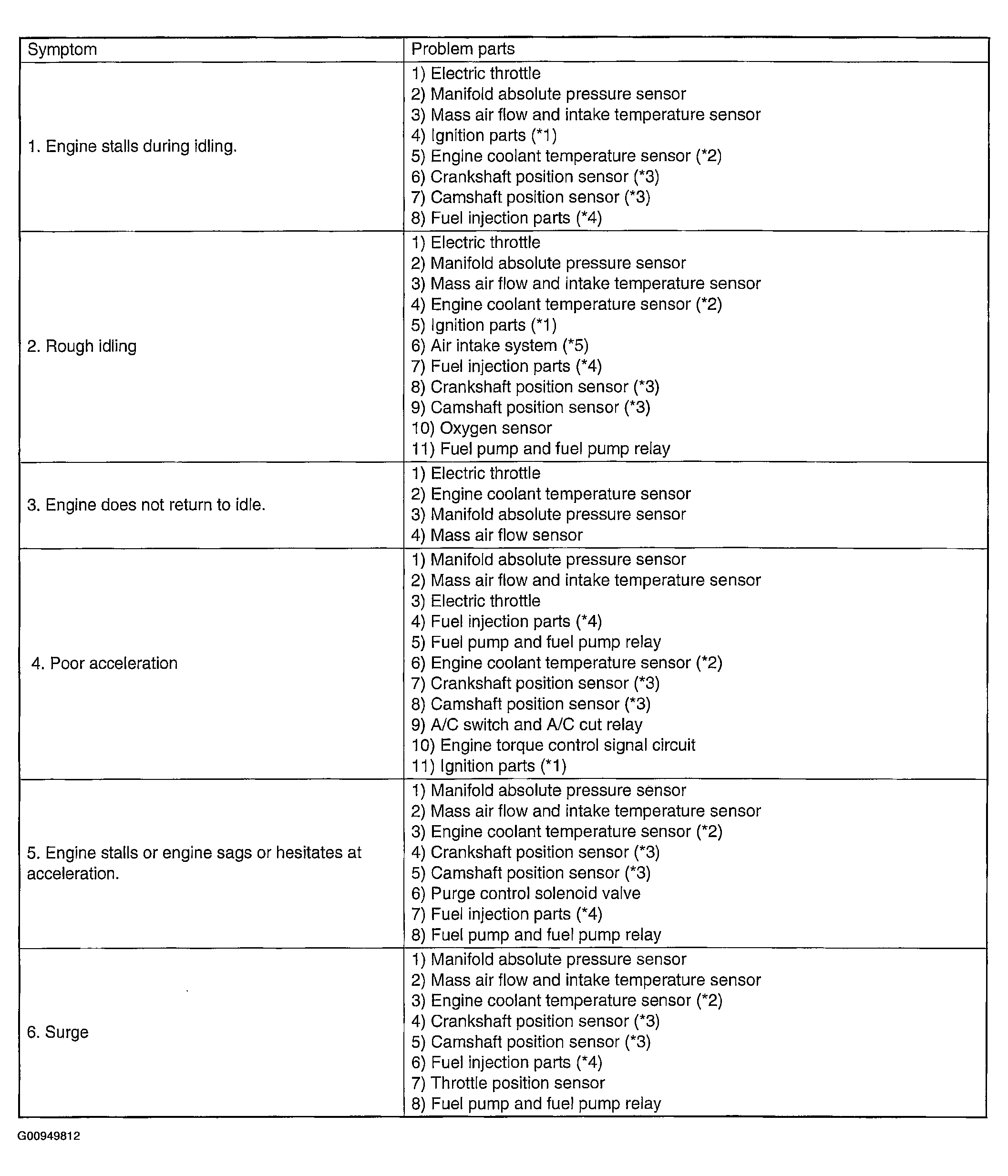

Fig 1: Symptom Problem Table (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

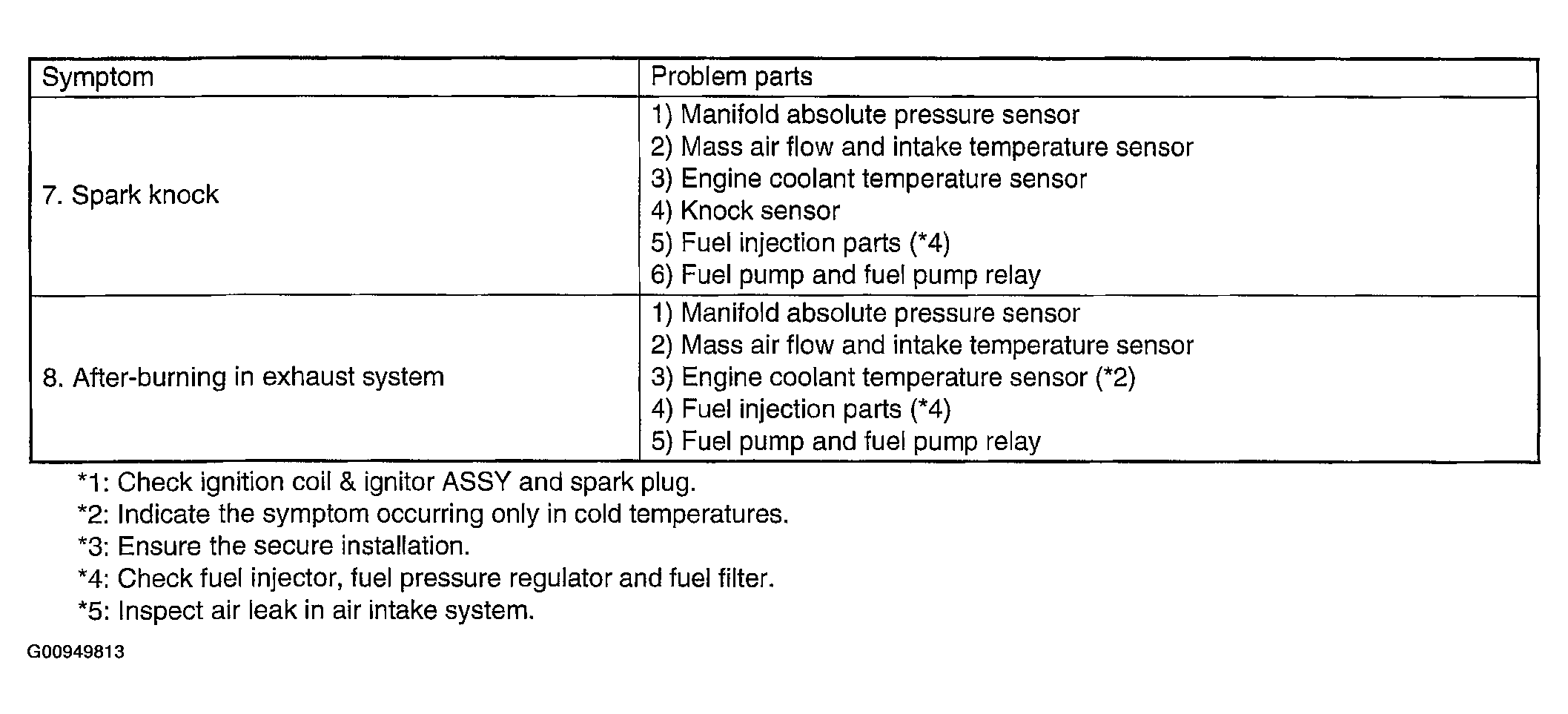

Fig 2: Symptom Problem Table (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
