Electrical Components Location: Location: Engine

Module

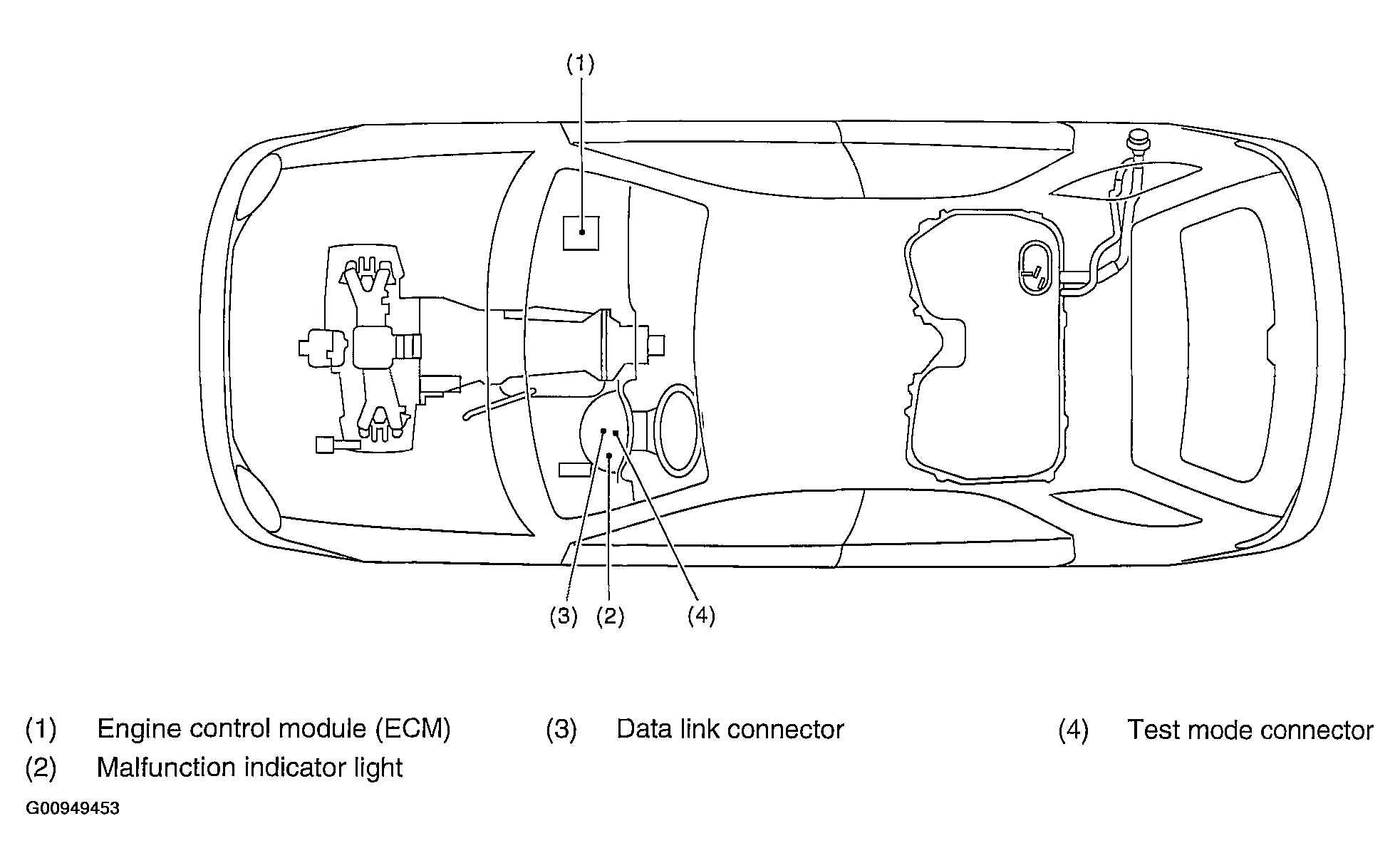

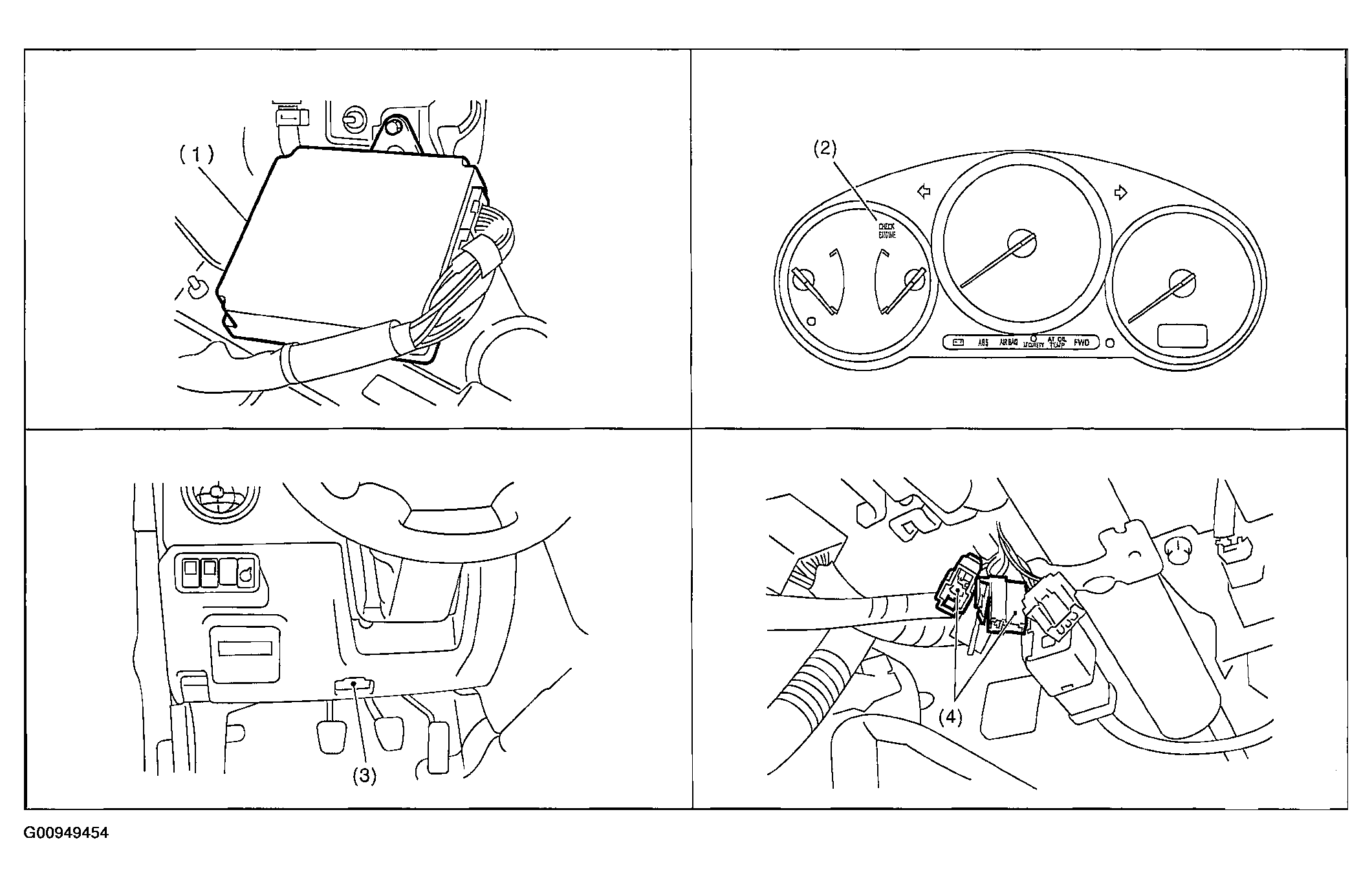

Fig 1: Locating Electrical Components Of Engine (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Locating Electrical Components Of Engine (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

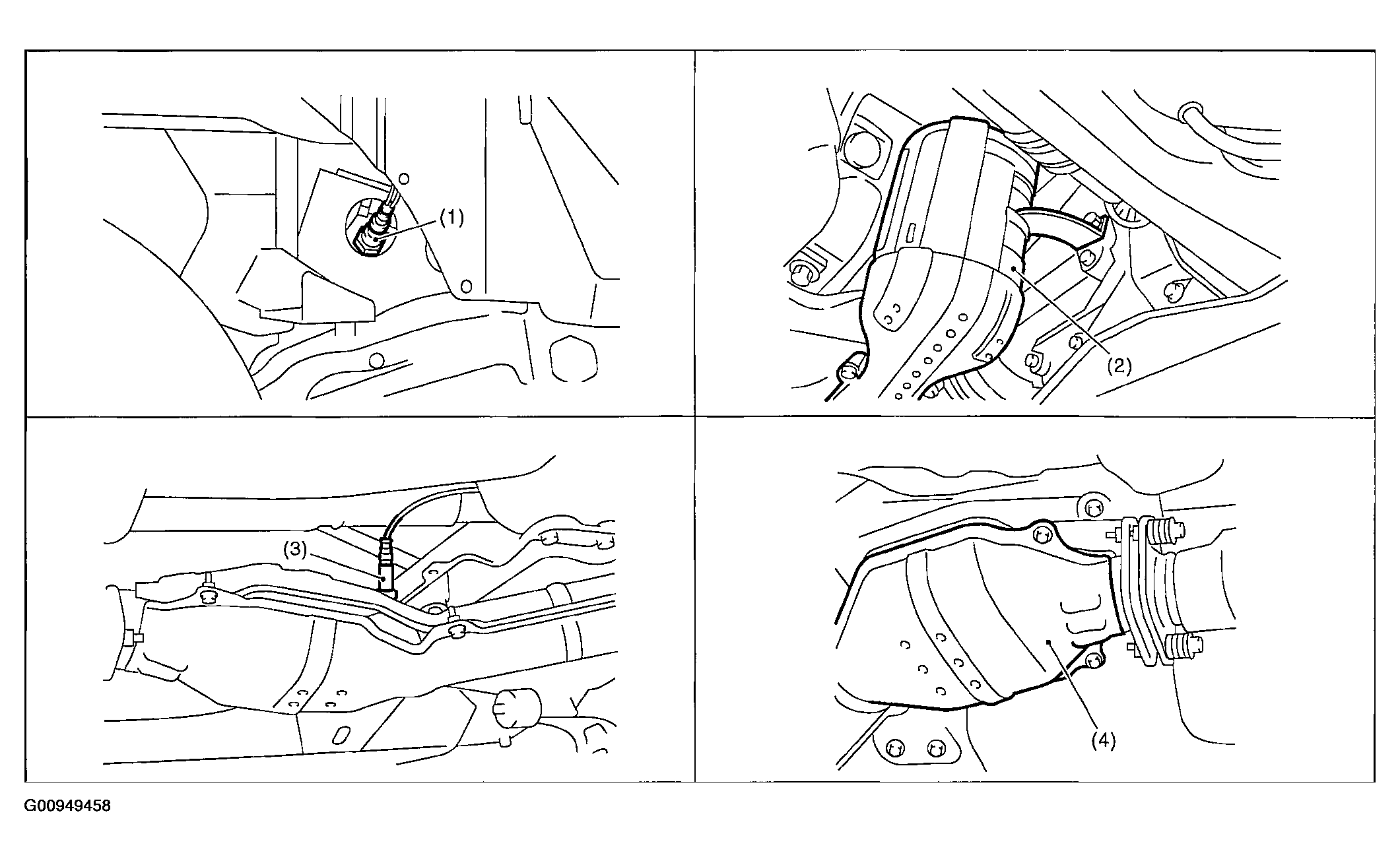

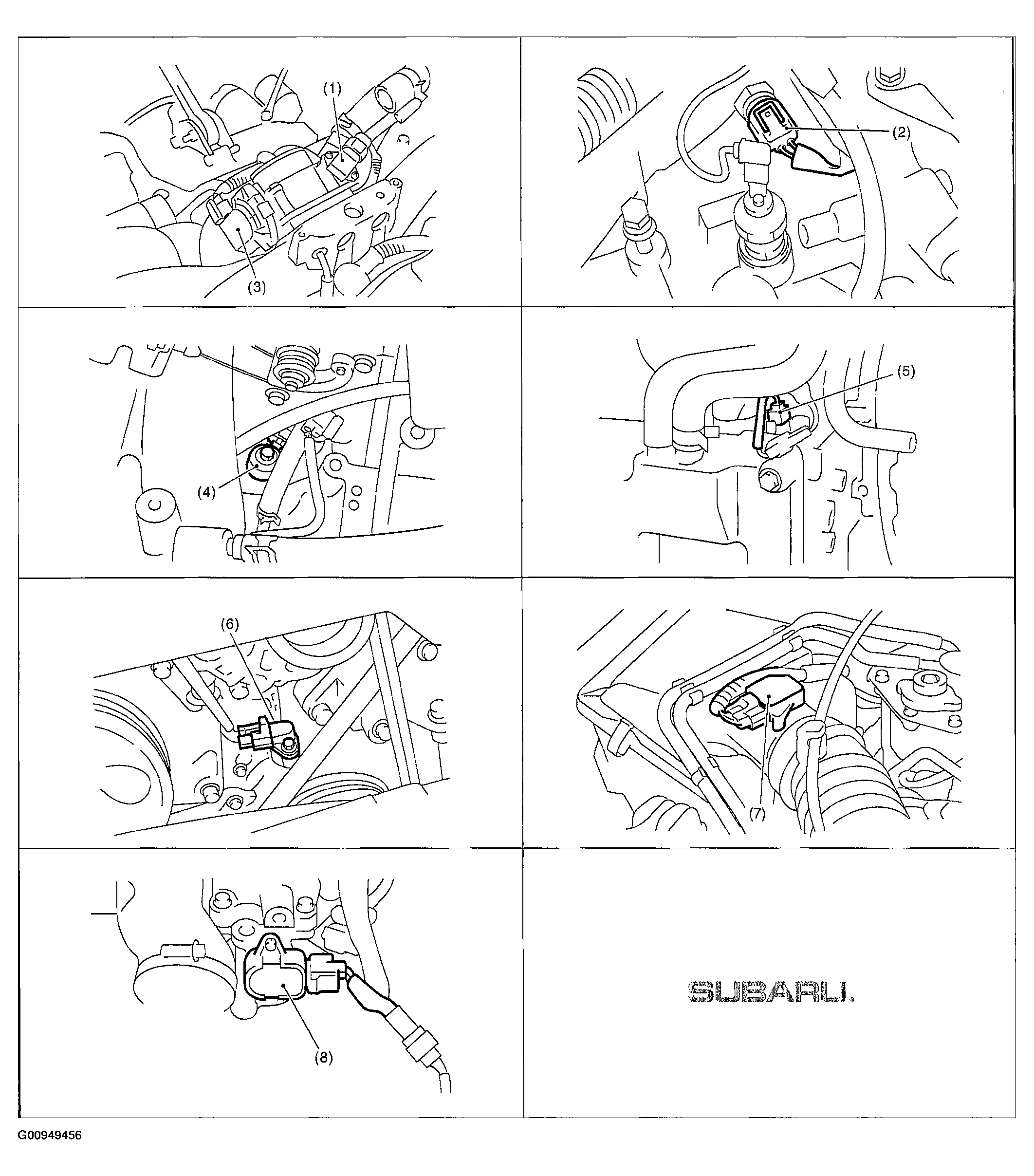

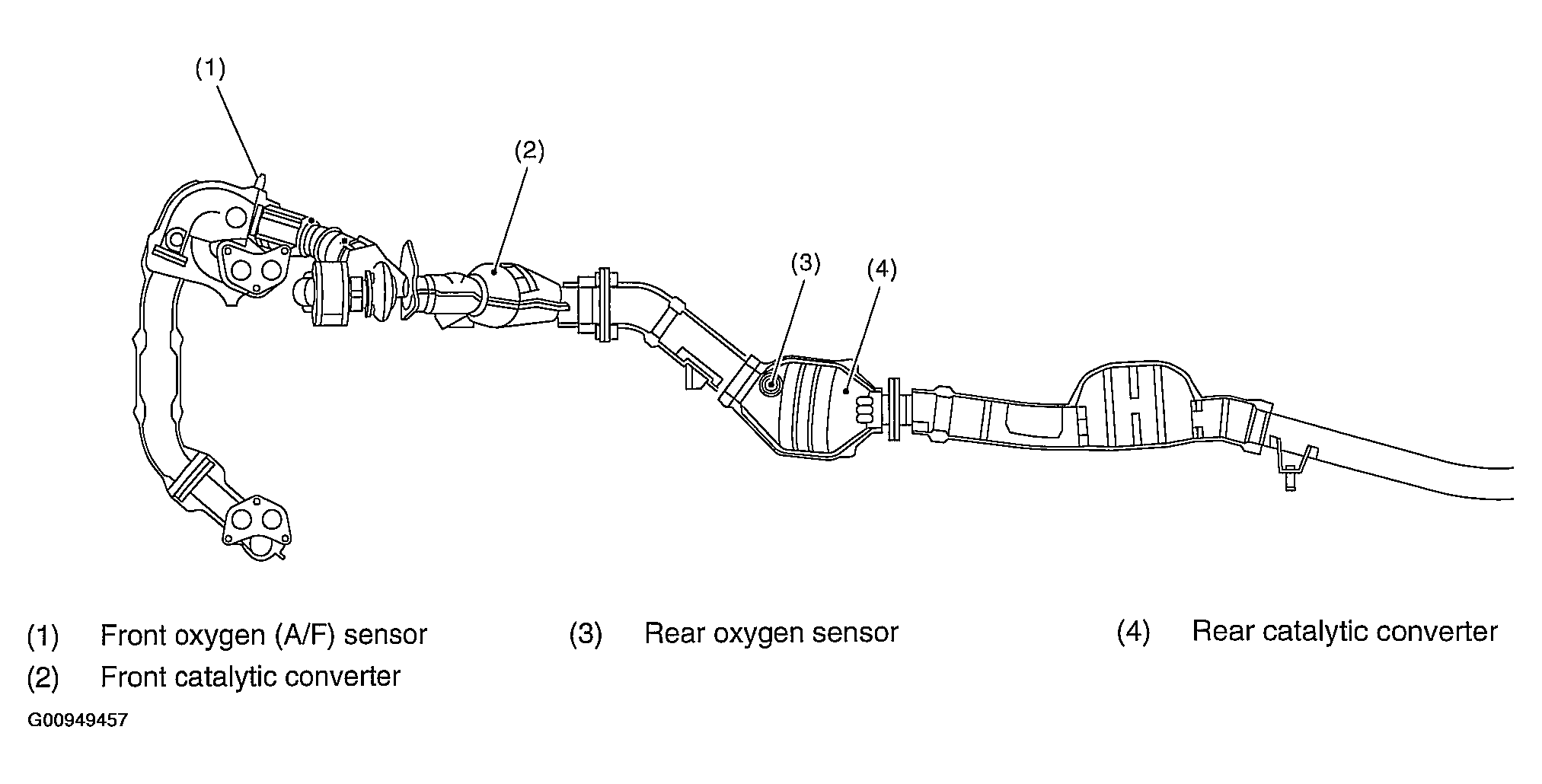

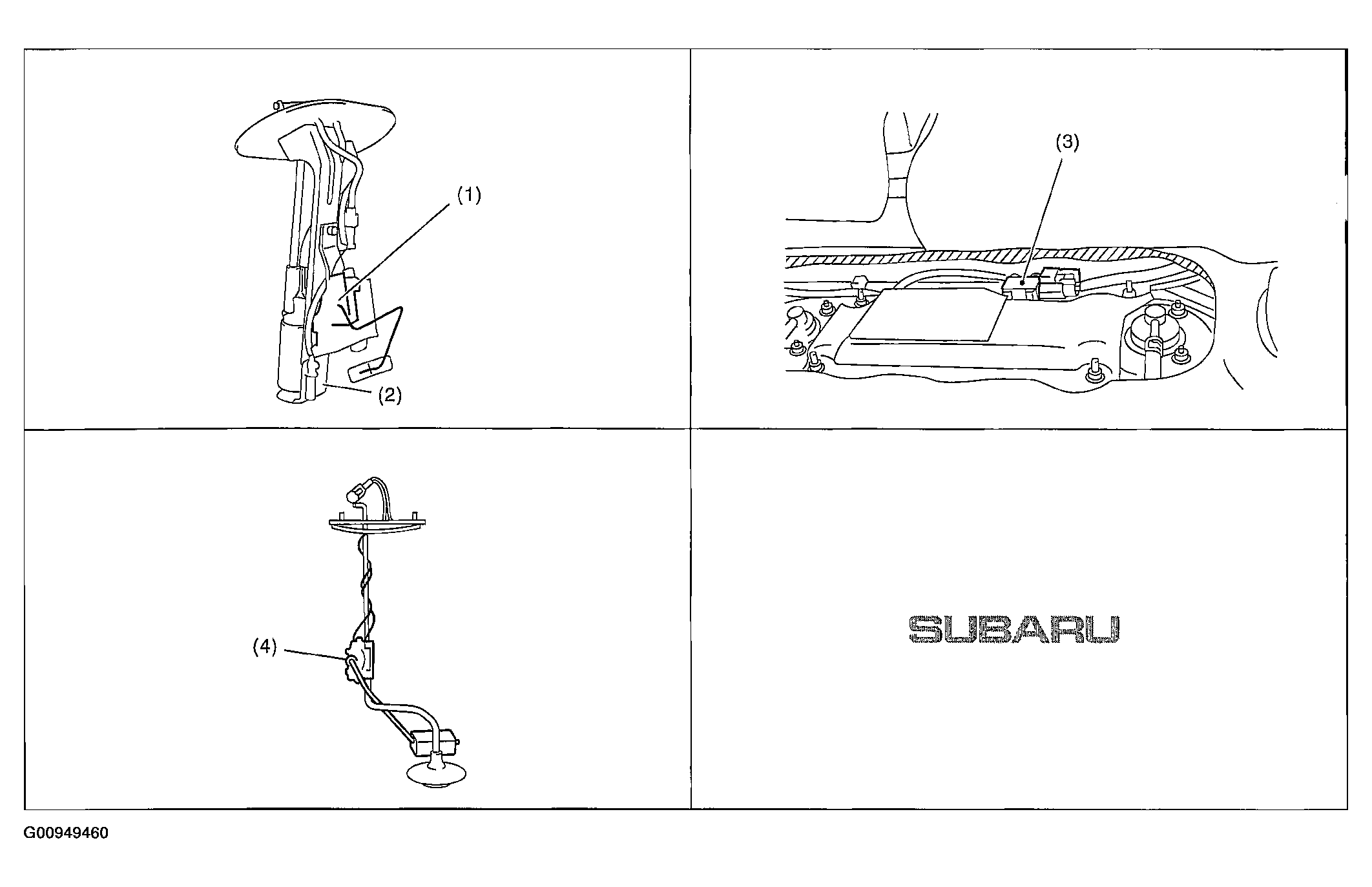

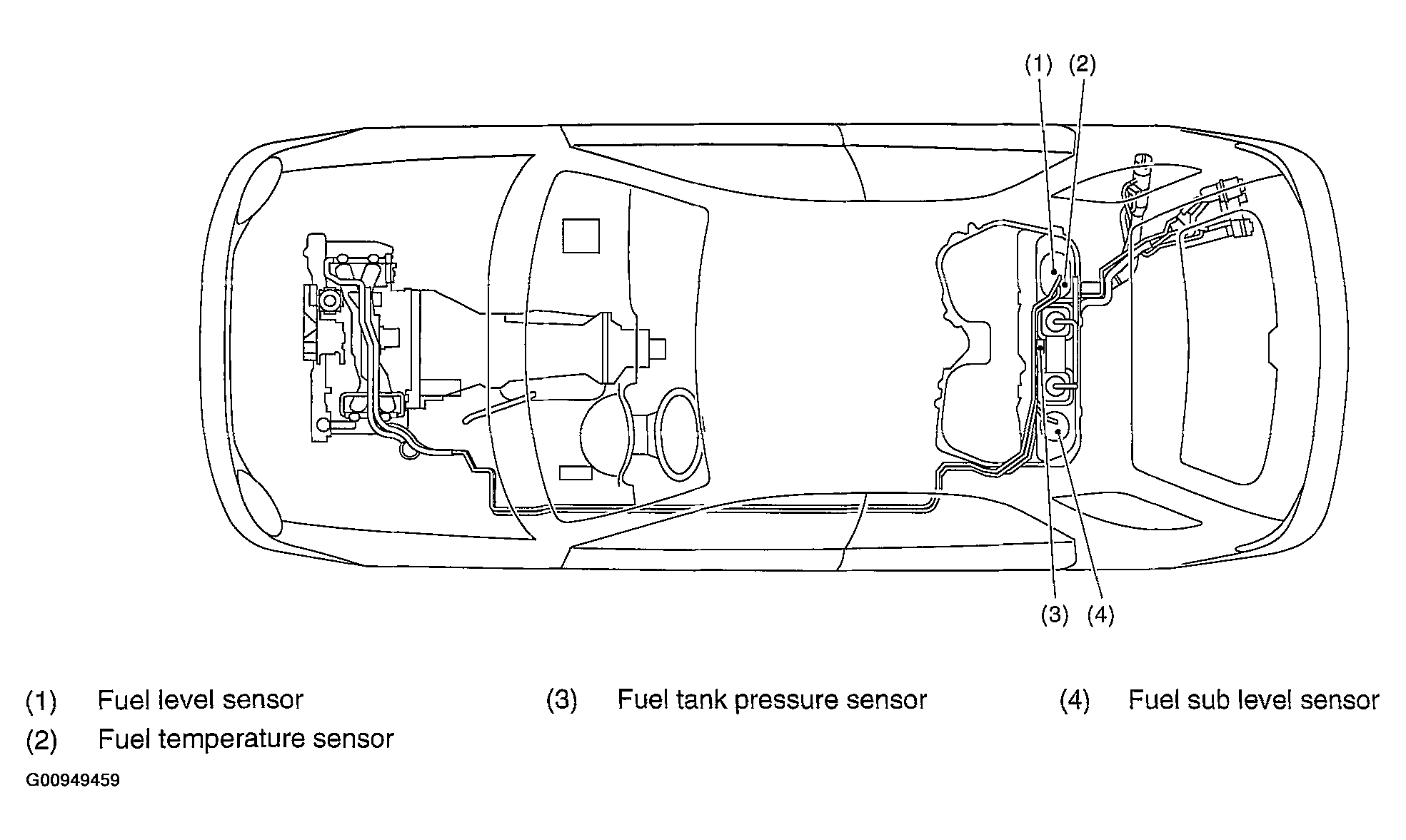

Sensor

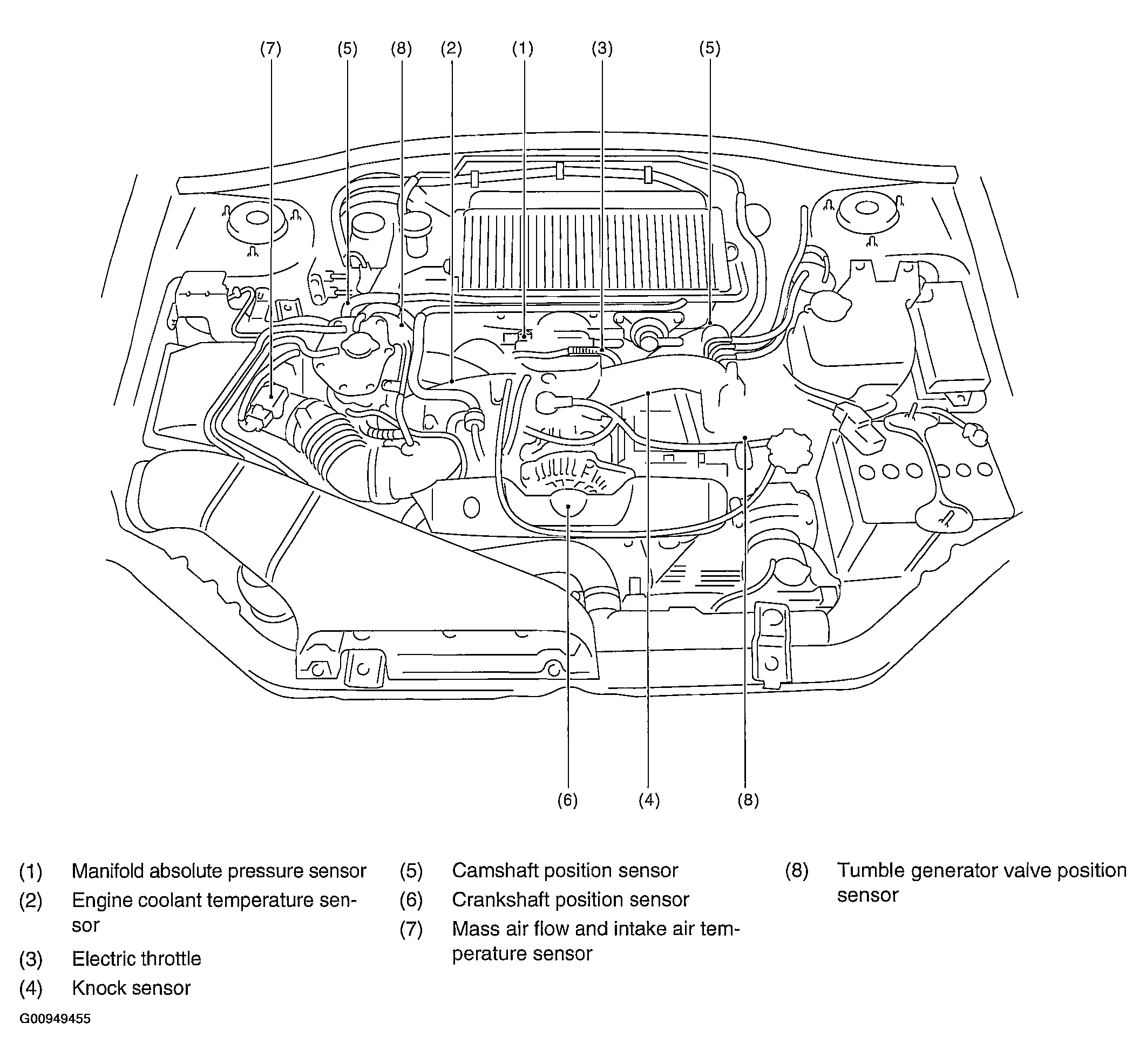

Fig 3: Identifying Sensors (1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Sensors (2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Sensors (3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Sensors (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Sensors (5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Sensors (6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

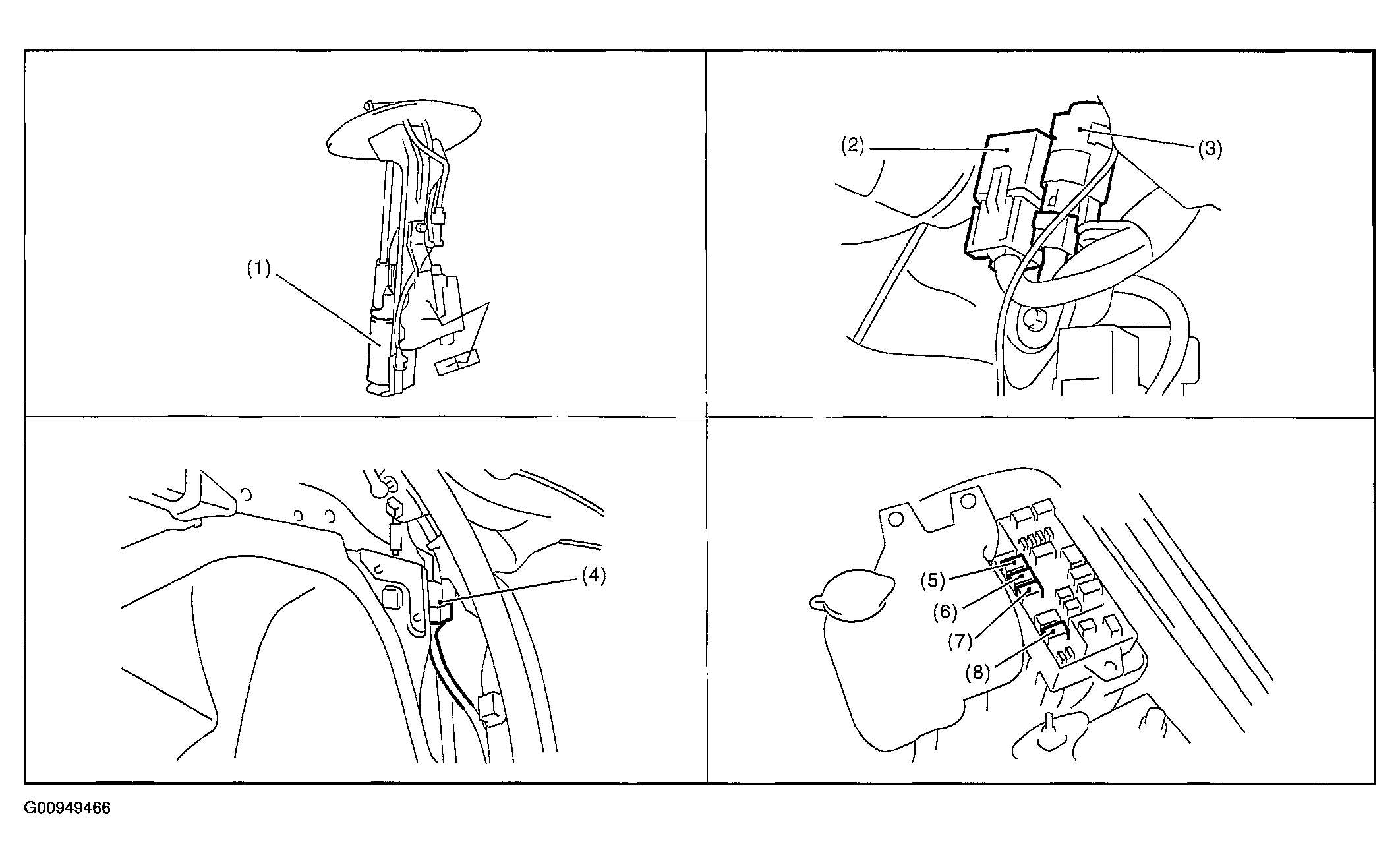

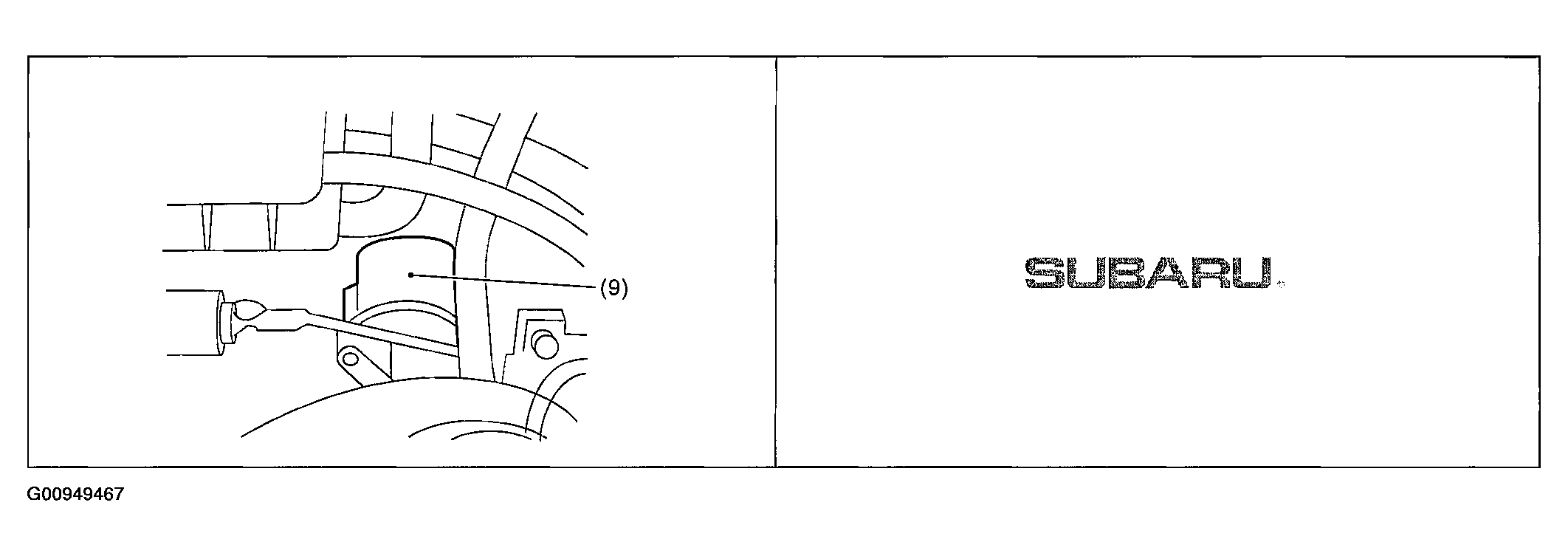

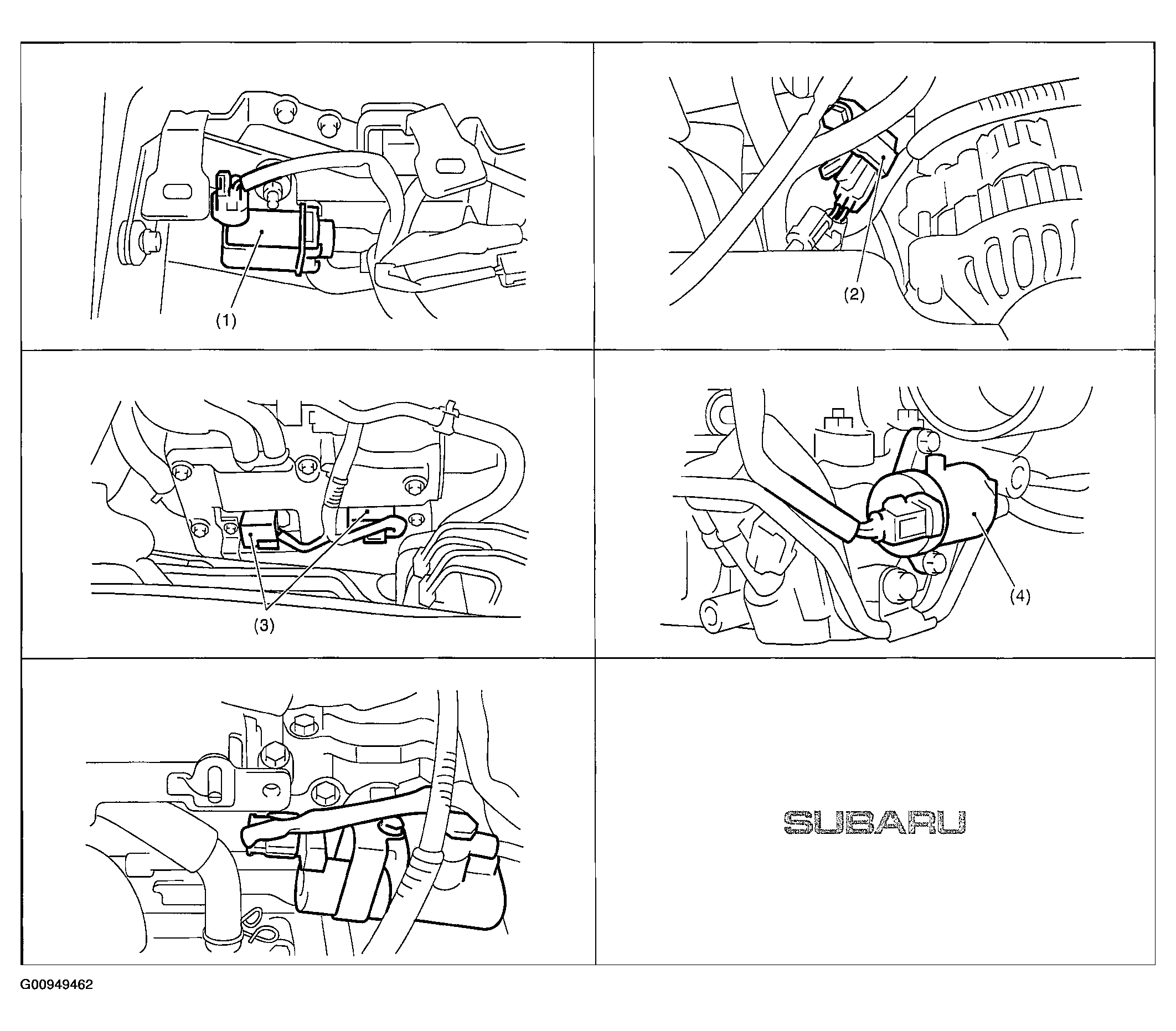

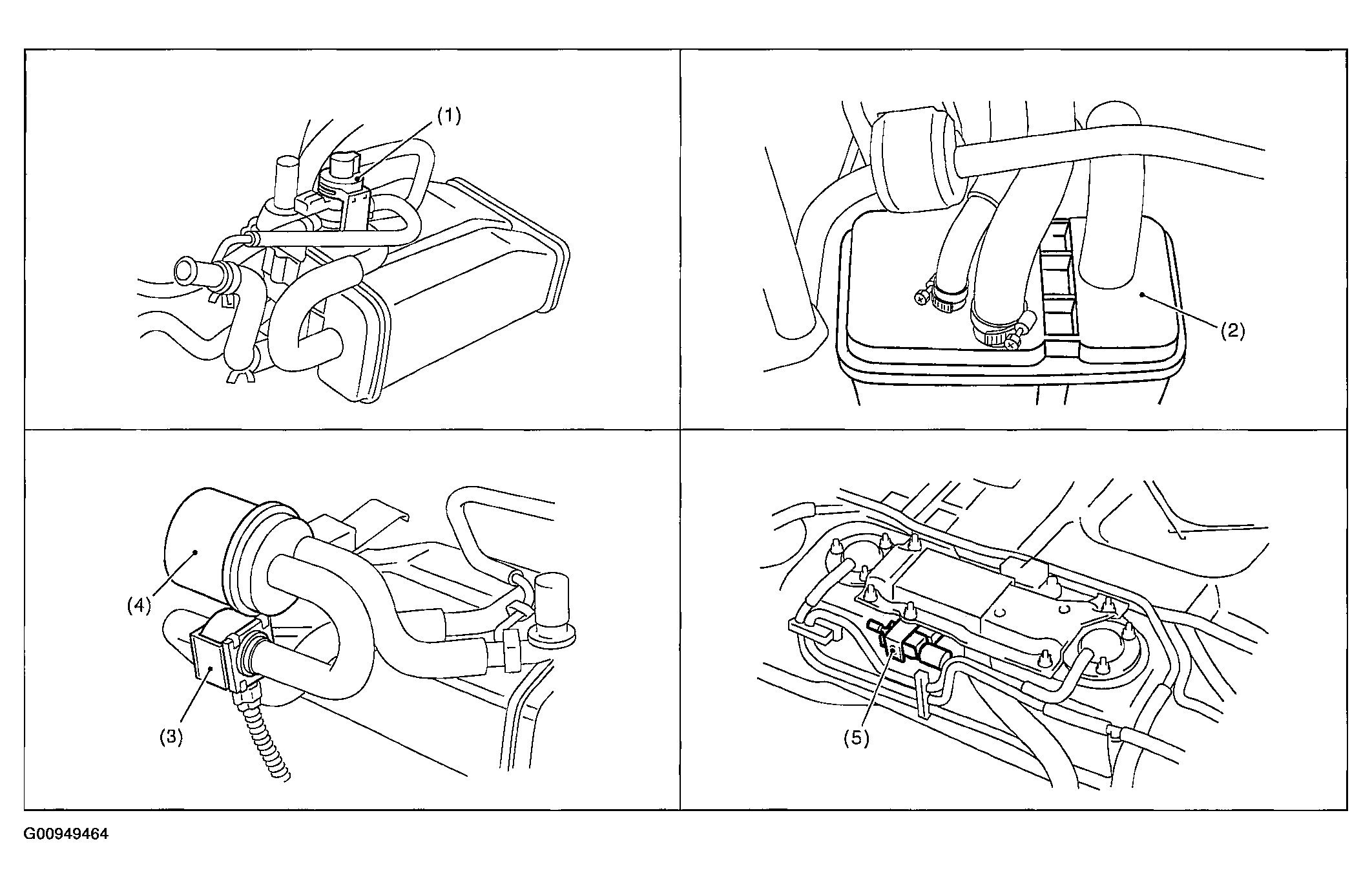

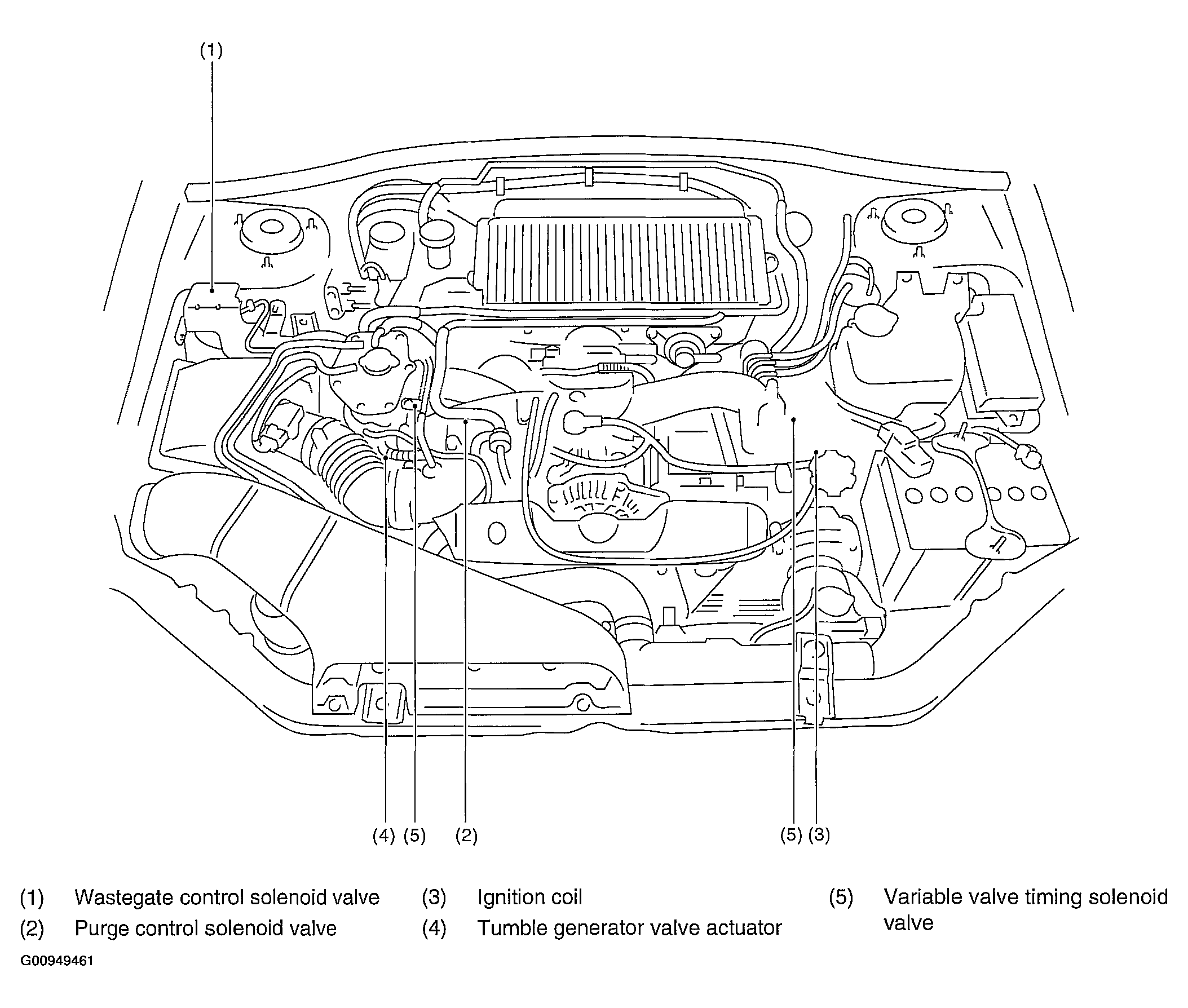

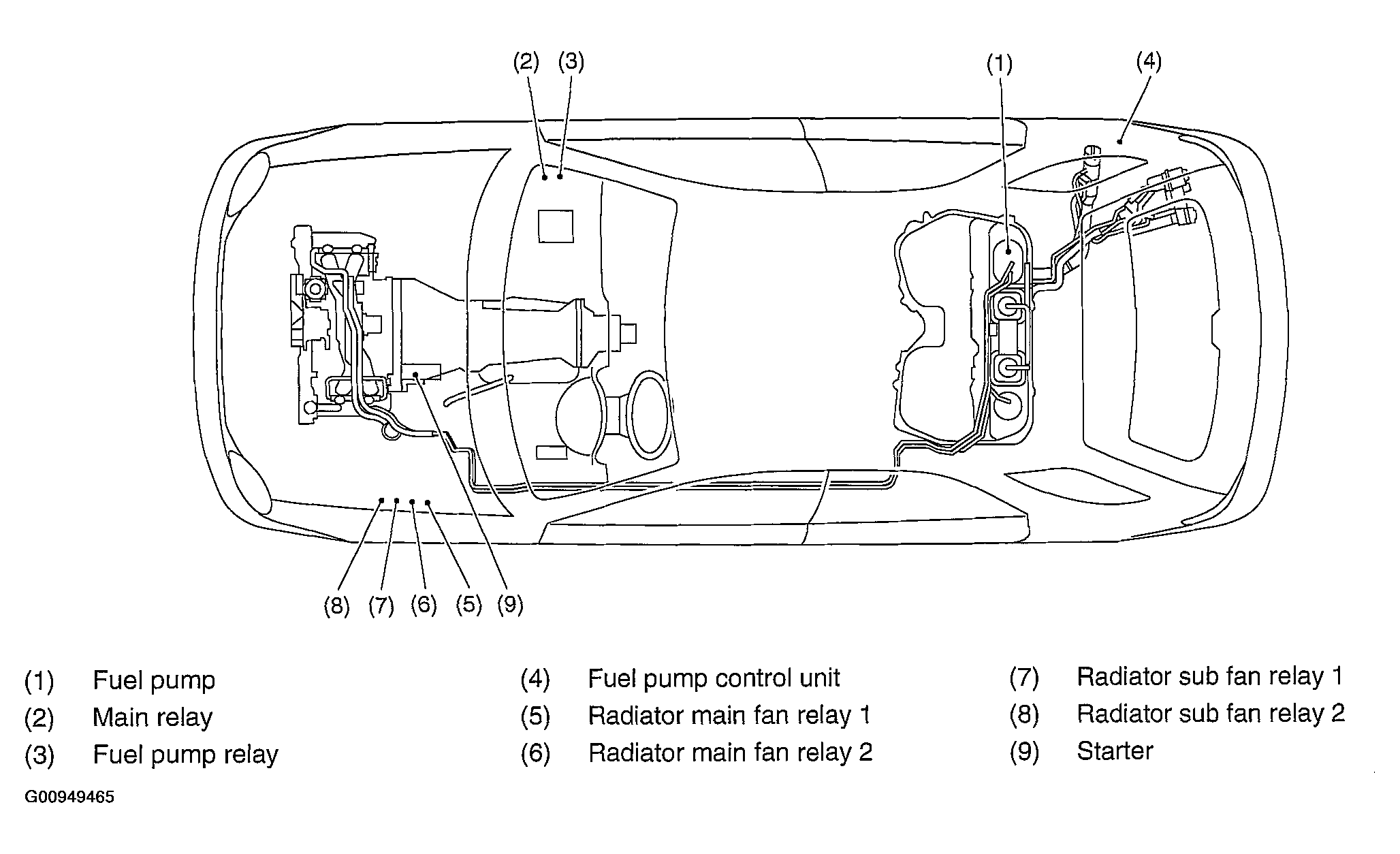

Solenoid Valve, Actuator, Emission Control System Parts and Ignition System Parts

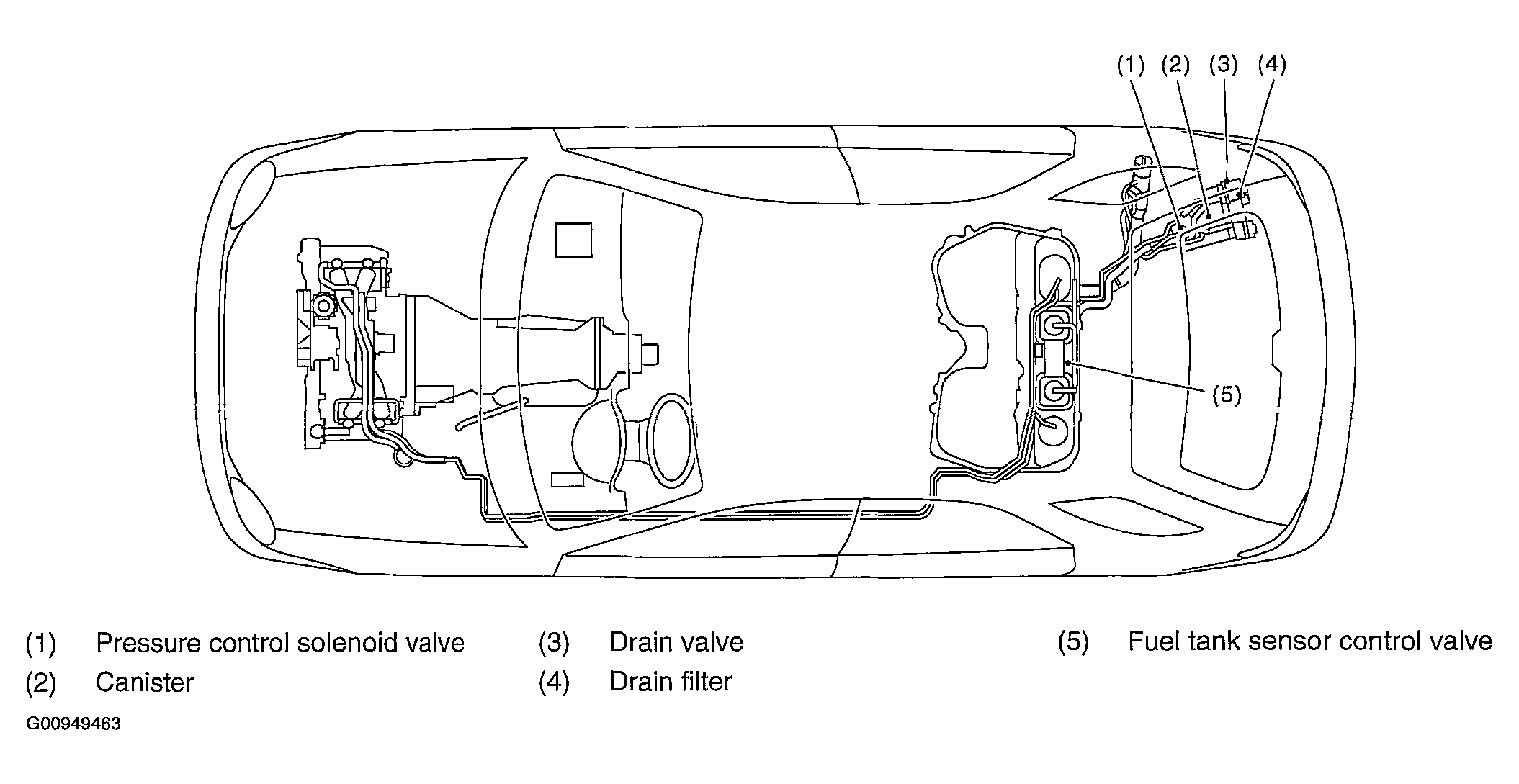

Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (1 Of 7)
Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (2 Of 7)
Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (3 Of 7)
Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (4 Of 7)
Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (5 Of 7)
Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (6 Of 7)
Courtesy of SUBARU OF AMERICA, INC.

Fig 15: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts (7 Of 7)
Courtesy of SUBARU OF AMERICA, INC.
