ENGINE (DIAGNOSTICS) (STi)
>>
Diagnostics for Engine Starting Failure
>>
Ignition Control System
>>
Diagnostic Chart:
Diagnostic Chart:

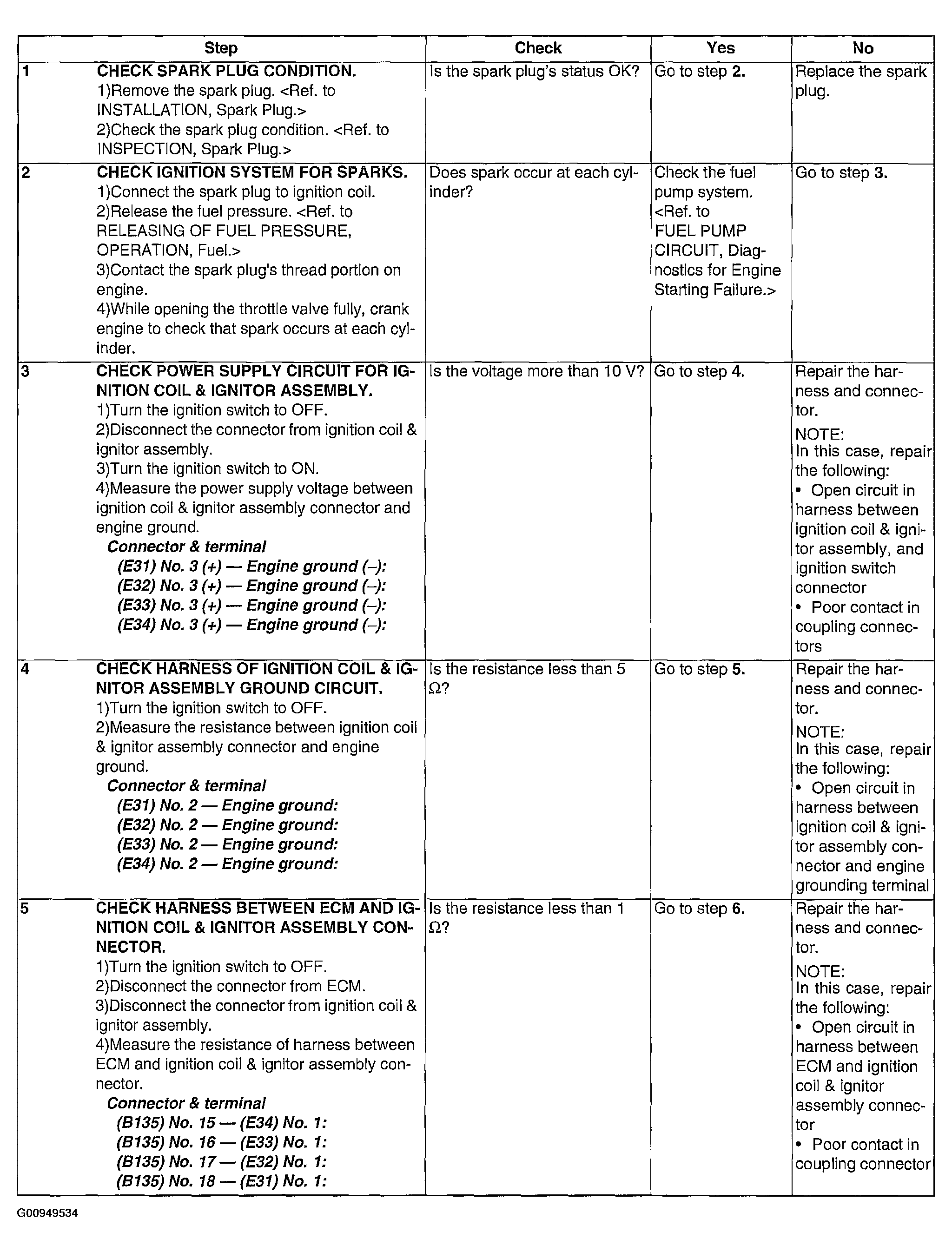

Fig 1: Diagnosis Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

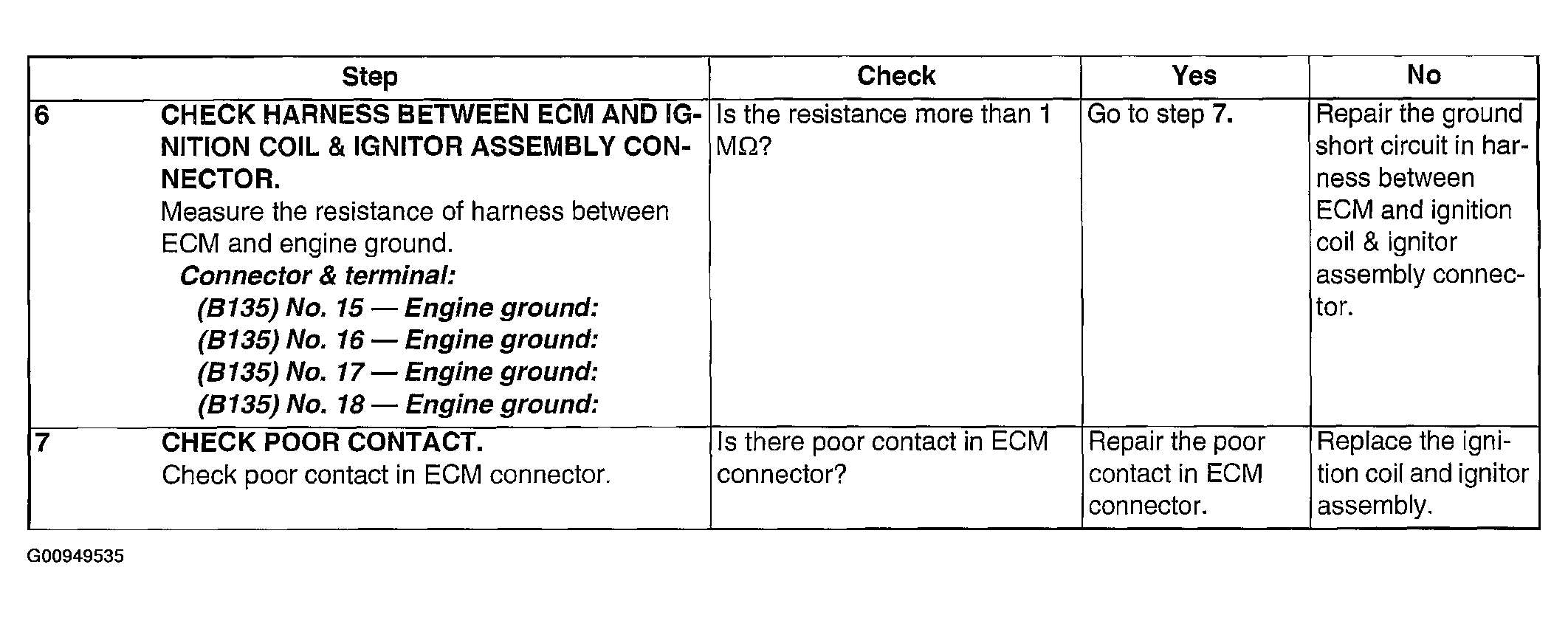

Fig 2: Diagnosis Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
