Data Link Connector: Note

This connector is used both for the OBD-II general scan tools and Subaru Select Monitor.

CAUTION: Do not connect any scan tools other than the OBD-II general scan tools and Subaru Select Monitor, because the circuit for Subaru Select Monitor may be damaged.

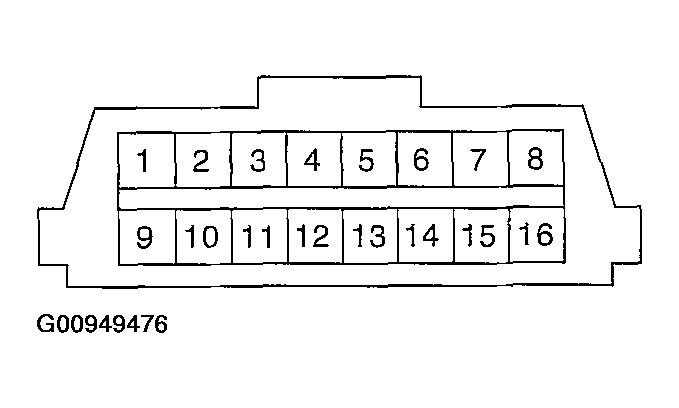

Fig 1: Identifying Data Link Connector (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

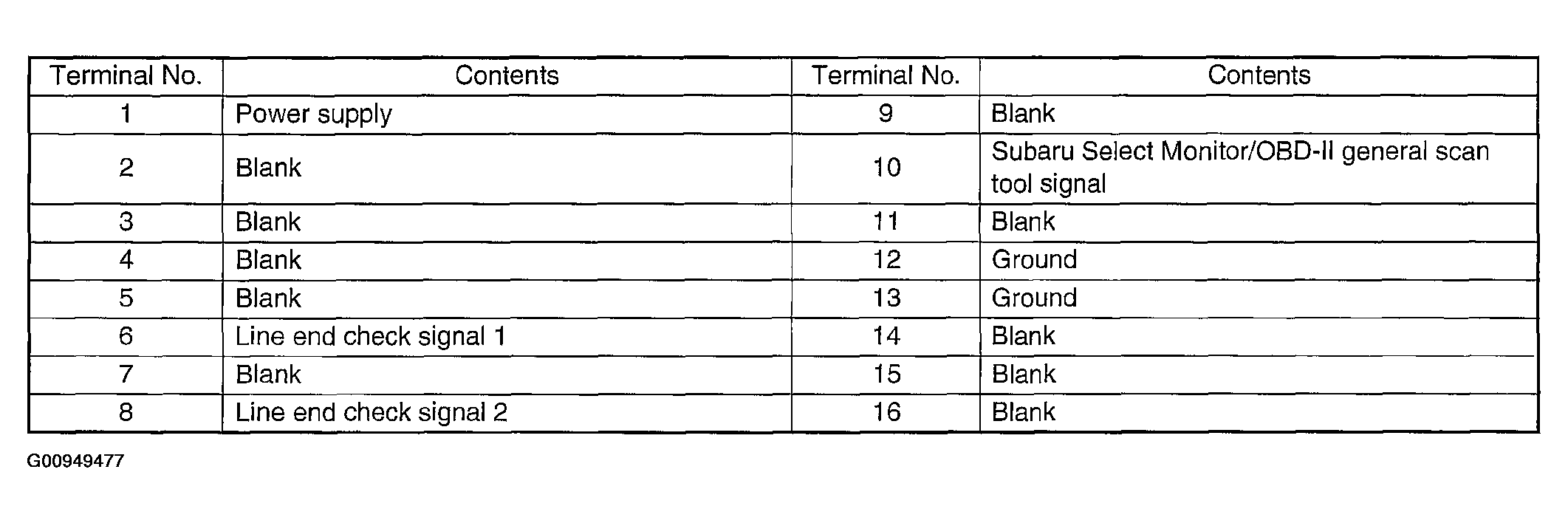

Fig 2: Identifying Data Link Connector (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
