ENGINE (DIAGNOSTICS) (STi)
>>
Basic Diagnostic Procedure
>>
DTC P0607: Control Module Performance
>>
Wiring Diagram:
Wiring Diagram:

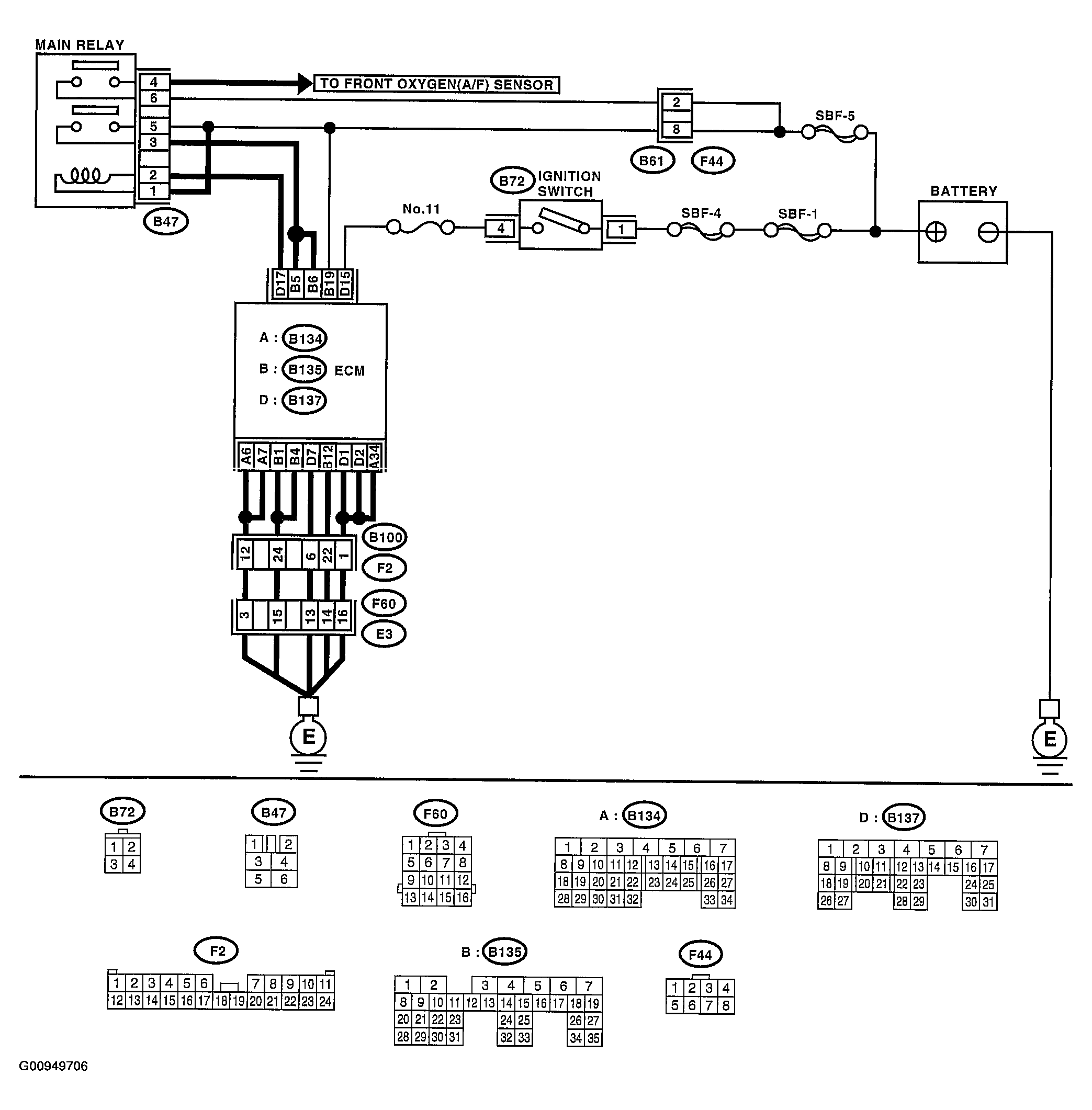

Fig 1: Identifying Wiring Diagram Of Control Module Performance
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
