RH Side

  1. Disconnect the ground cable from battery.

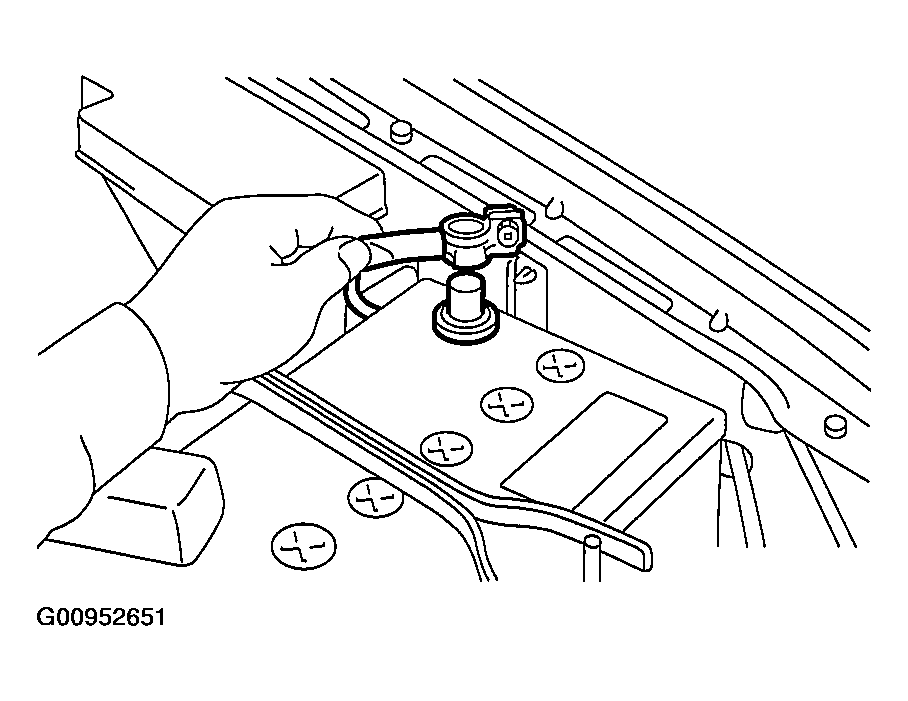

    Fig 1: Disconnecting Ground Cable From Battery
    G00952651Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air cleaner lower case. < Ref. to REMOVAL , Air Cleaner. >
  3. Disconnect the connector from ignition coil.

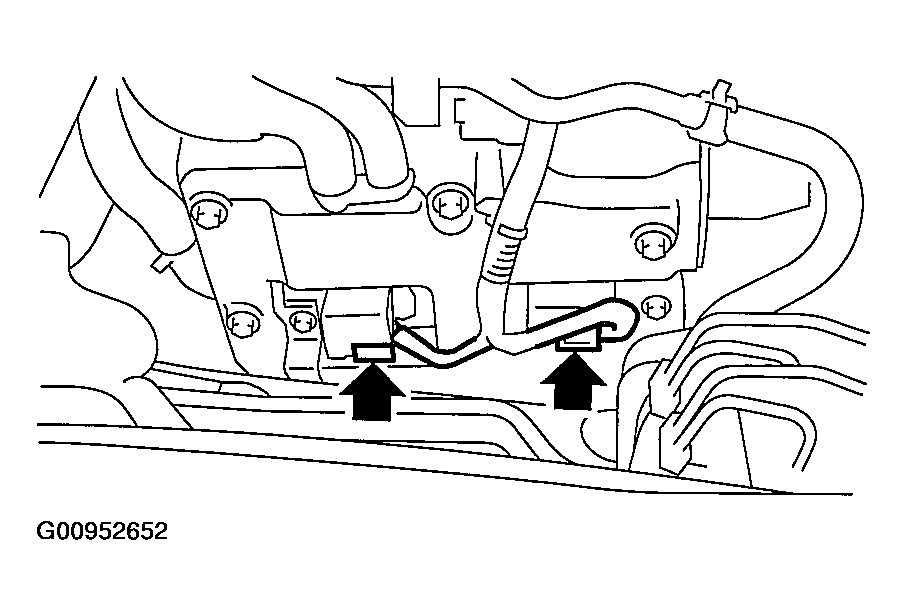

    Fig 2: Disconnecting Connector From Ignition Coil
    G00952652Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the ignition coil.

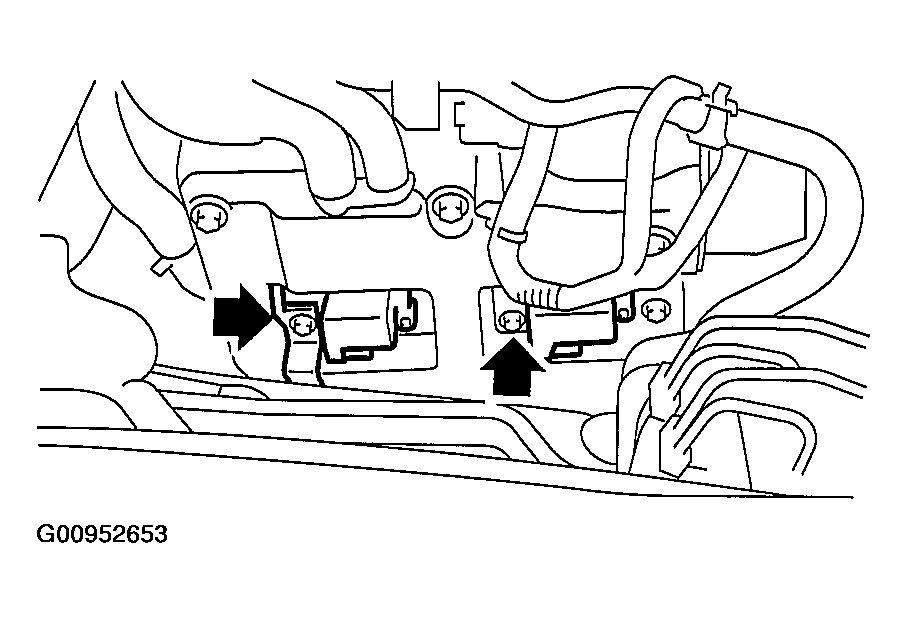

    Fig 3: Removing Ignition Coil
    G00952653Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spark plugs with the spark plug sockets.

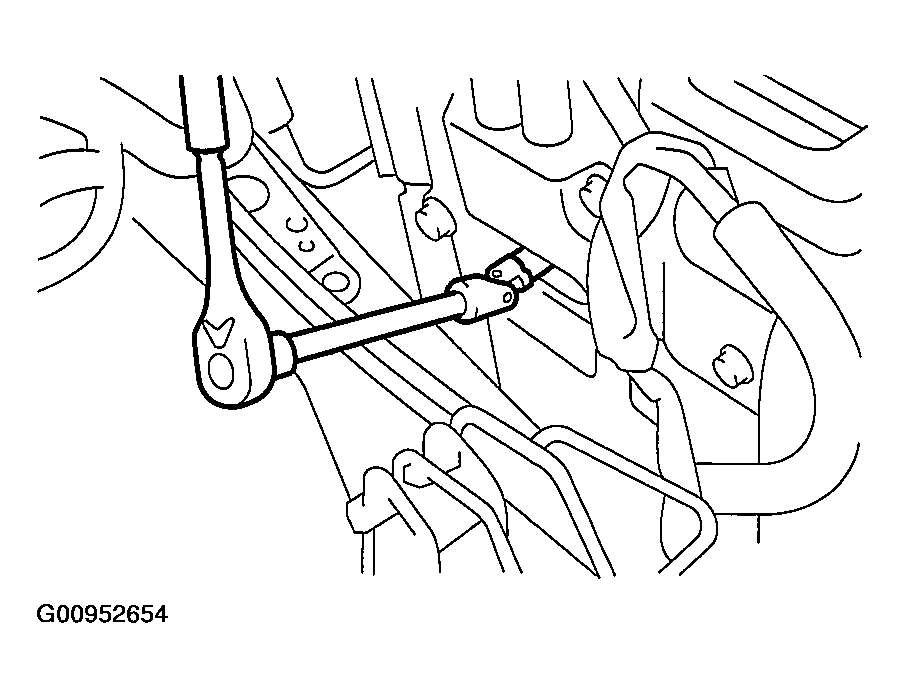

    Fig 4: Removing Spark Plugs With Spark Plug Sockets
    G00952654Courtesy of SUBARU OF AMERICA, INC.
