LH Side

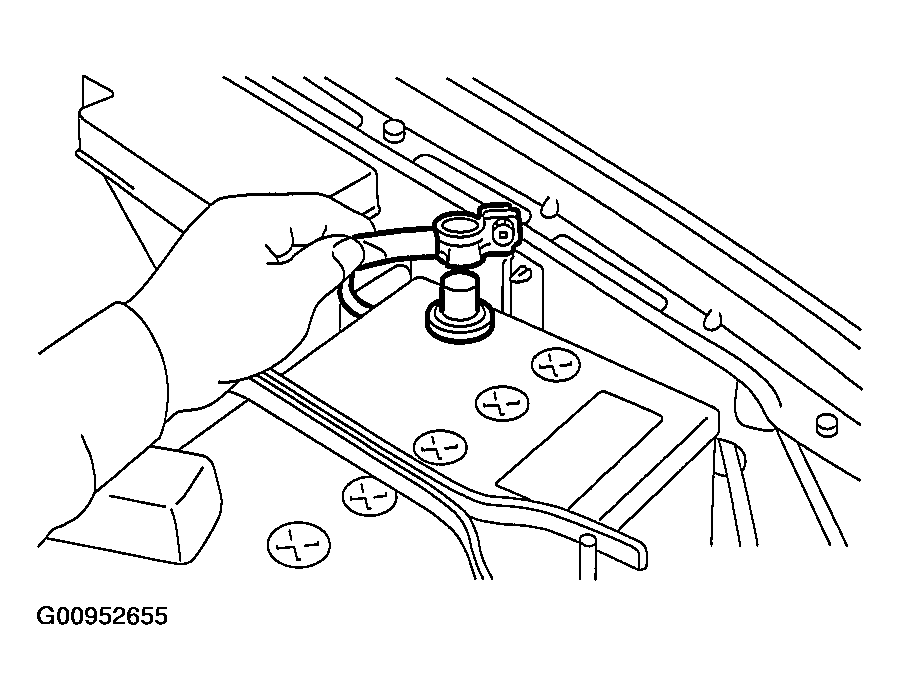

Disconnect the battery cables, and then remove the battery and battery carrier.

Fig 1: Removing Battery And Battery Carrier
Courtesy of SUBARU OF AMERICA, INC.

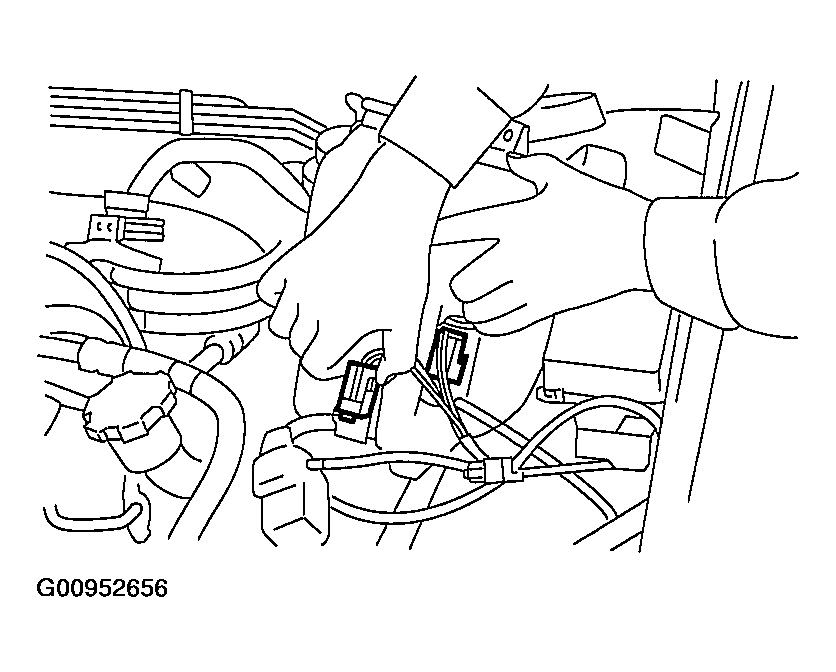

Disconnect the washer motor connector.

Fig 2: Disconnecting Washer Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the rear window glass washer hose from washer motor, then plug connection with a suitable cap.

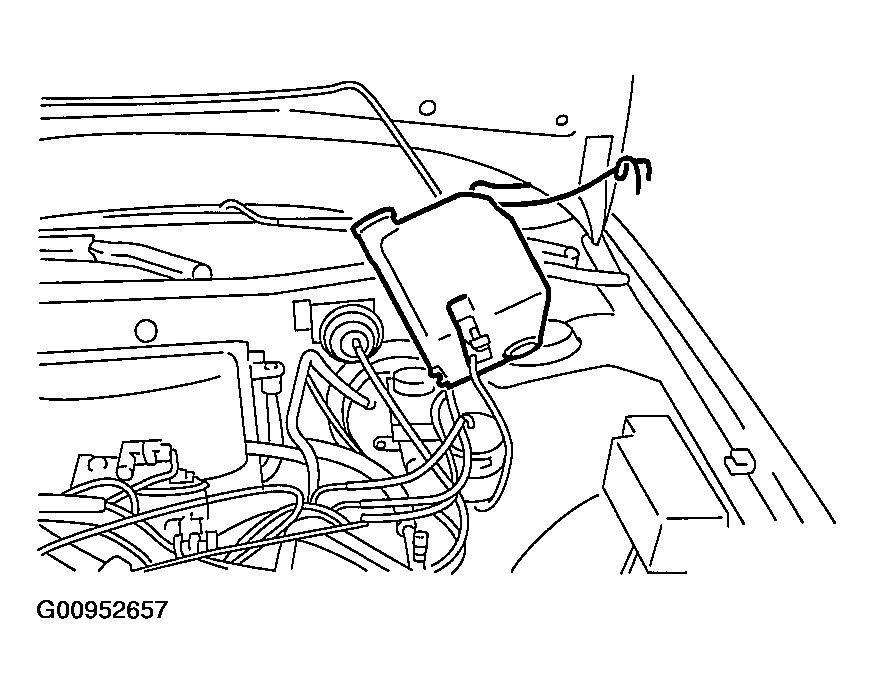

Remove the two bolts which hold washer tank, then take the tank away from working area.

Fig 3: Moving Rear Window Washer Tank Away From Work Area
Courtesy of SUBARU OF AMERICA, INC.

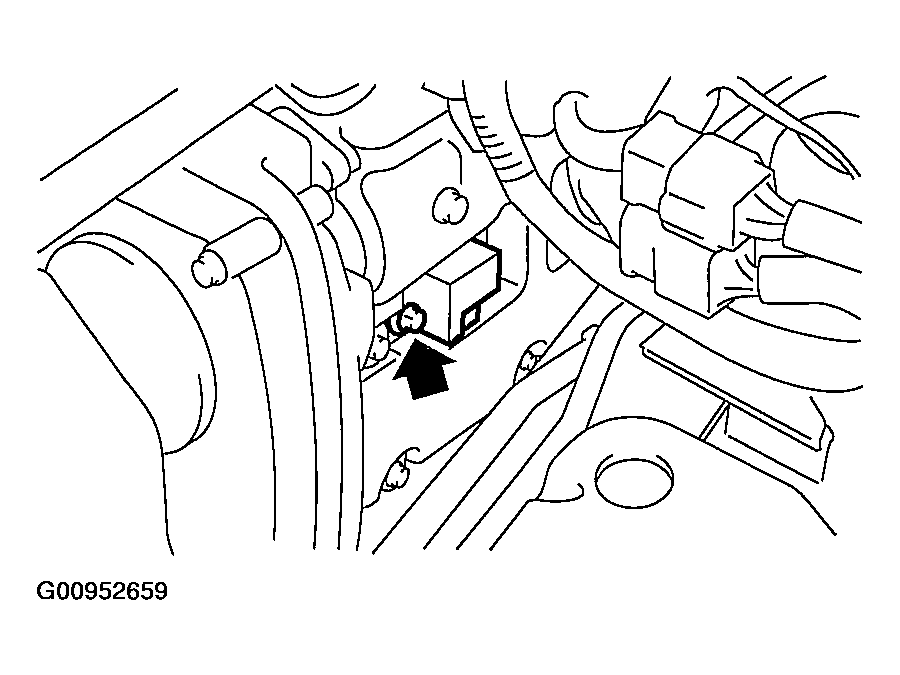

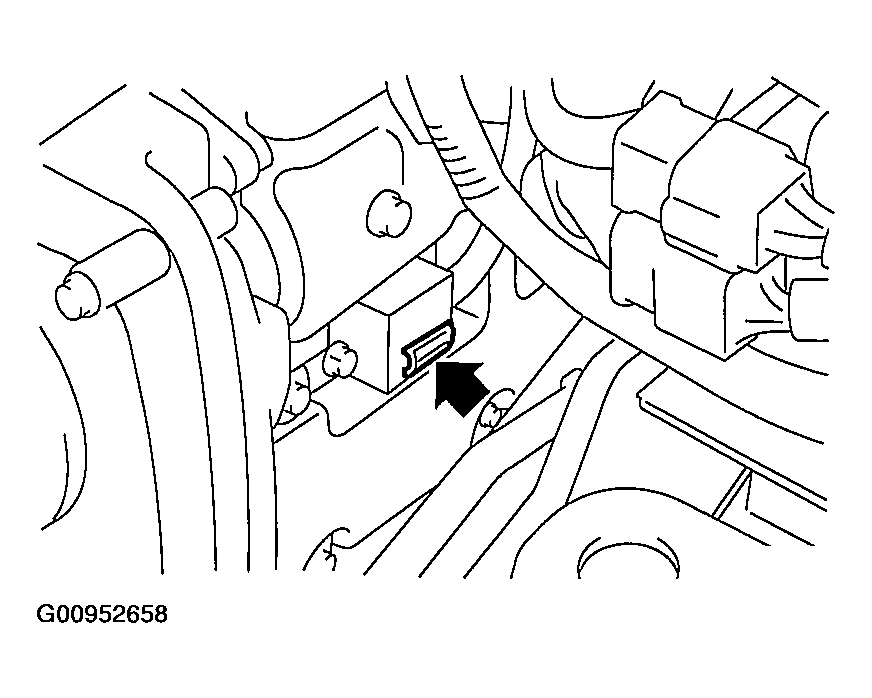

Disconnect the connector from ignition coil.

Fig 4: Disconnecting Connector From Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.

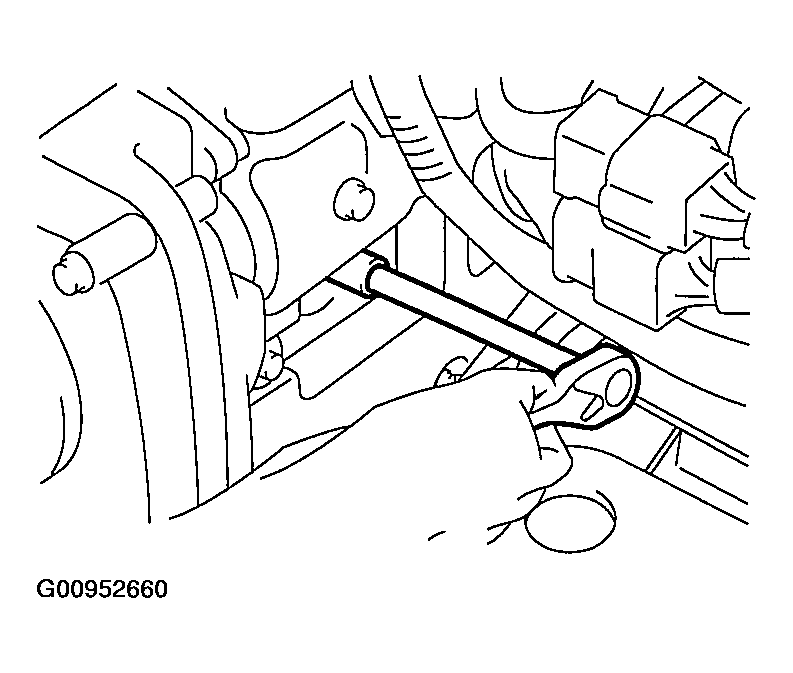

Remove the ignition coil.

Fig 5: Removing Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plugs with the spark plug sockets.

Fig 6: Removing Spark Plugs With Spark Plug Sockets
Courtesy of SUBARU OF AMERICA, INC.
