Read Current Data
- On the "Main Menu" display screen, select the {Each System Check} and press "YES" key.
- On the "System Selection Menu" display screen, select the {Brake Control System} and press "YES" key.
- Press the "YES" key after the information of ABS type is displayed.
- On the "Brake Control Diagnosis" display screen, select the {Current Data Display & Save} and press "YES" key.
- On the "Data Display Menu" display screen, select the {Data Display} and press "YES" key.
- Using the scroll key, move the display screen up or down until desired data is shown.

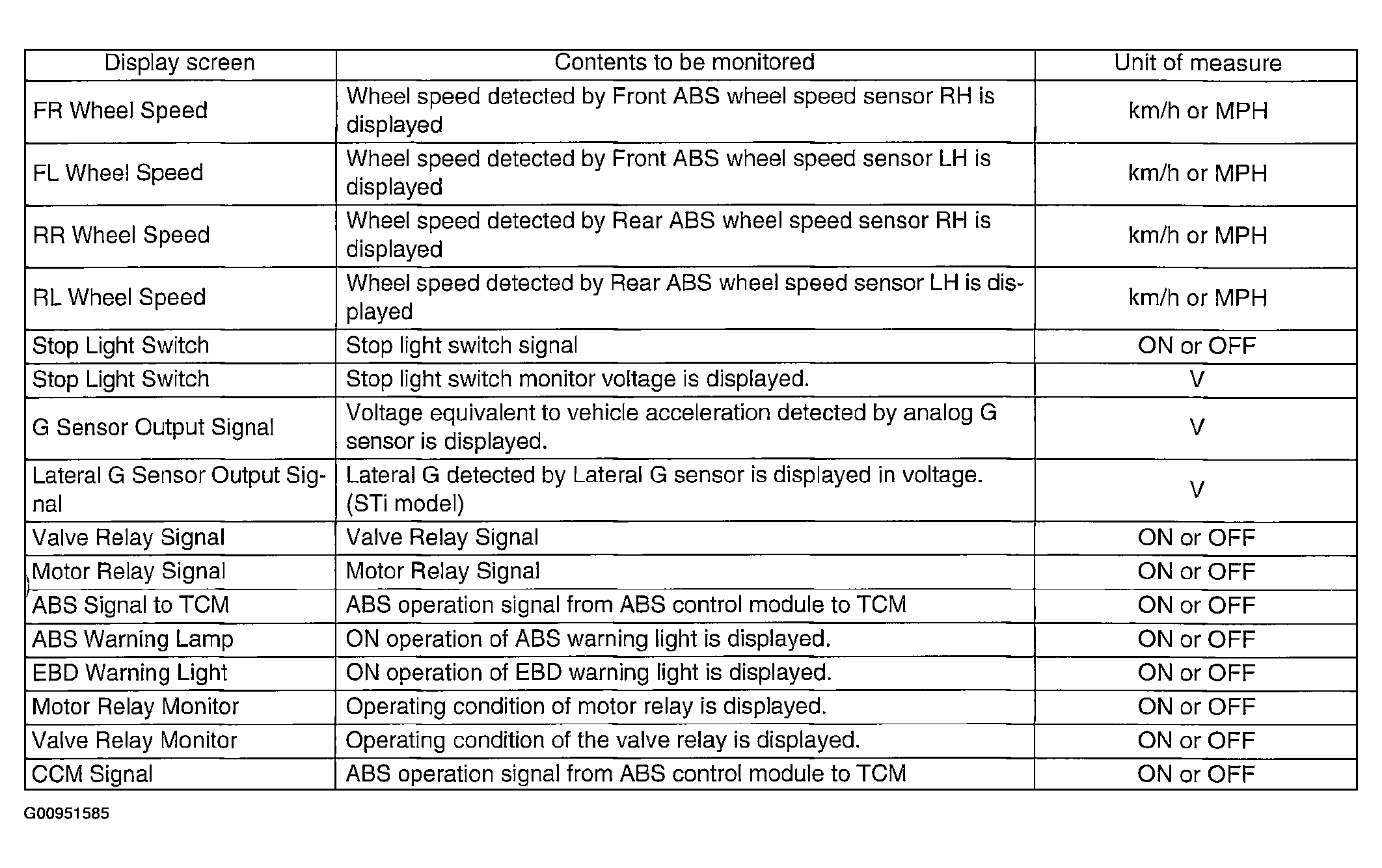

- A list of the support data is shown in the following table.
NOTE:
For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL
.
