Clear Memory Mode

  1. On the "Main Menu" display screen, select the {2. Each System Check} and press "YES" key.
  2. On the "System Select Menu" display screen, select the {Brake System} and press "YES" key.
  3. Press the "YES" key after the information of engine type is displayed.
  4. On the "Brake Control Diagnosis" display screen, select the {Clear Memory} and press "YES" key.

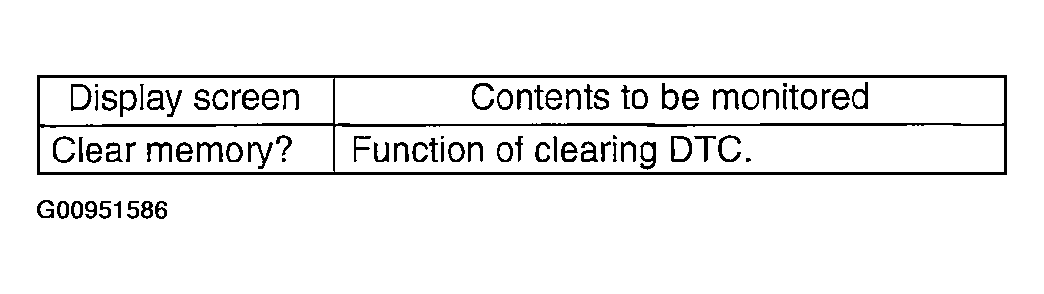

    Fig 1: Display Chart (Clear Memory Mode)
    G00951586Courtesy of SUBARU OF AMERICA, INC.
  5. When the "Done" and "turn ignition switch to OFF" are shown on display screen, turn the Subaru Select Monitor and ignition switch to OFF.
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL .
