Diagnostic Chart

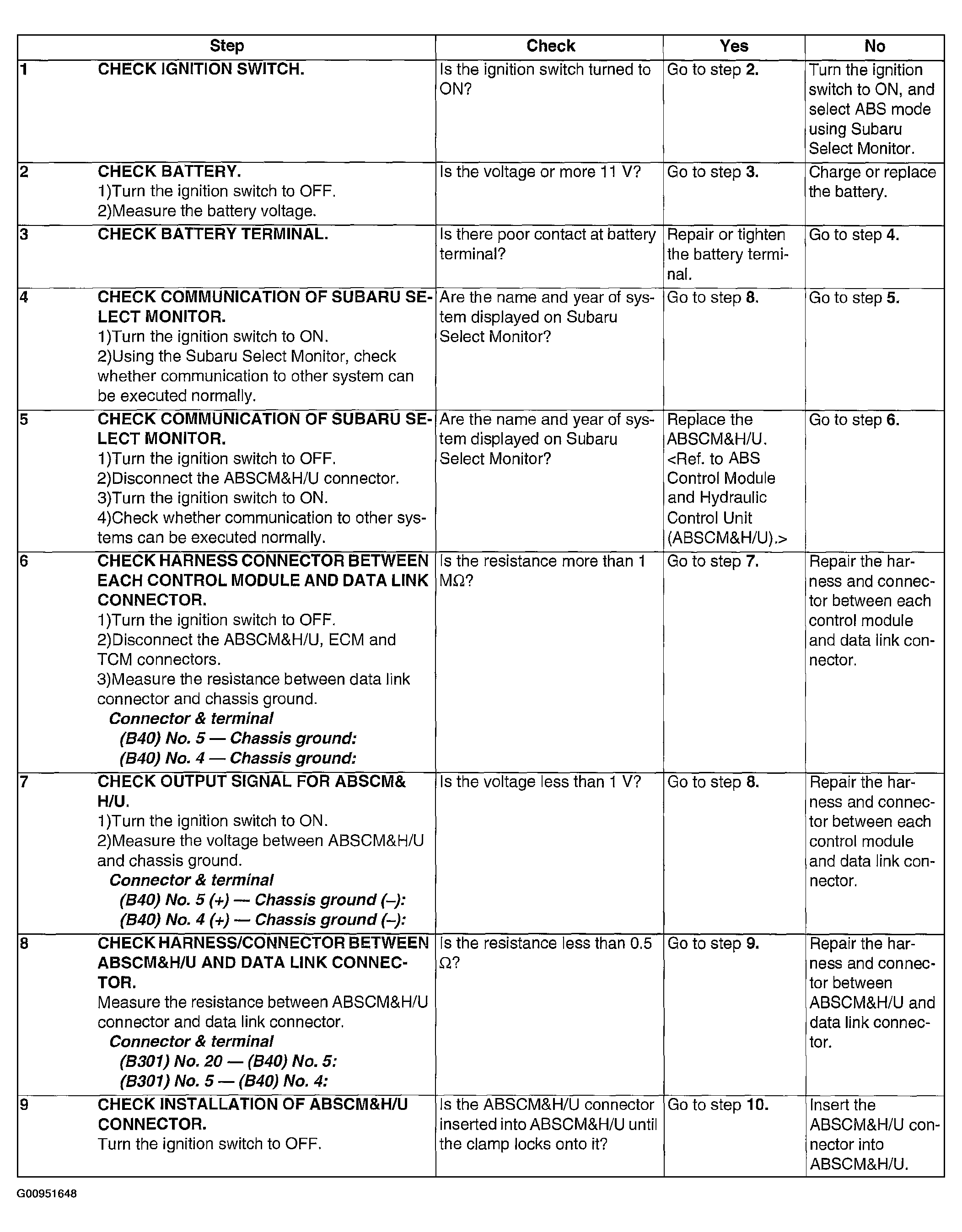

Fig 1: Communication For Initializing Impossible Chart (1 Of 2)
G00951648Courtesy of SUBARU OF AMERICA, INC.

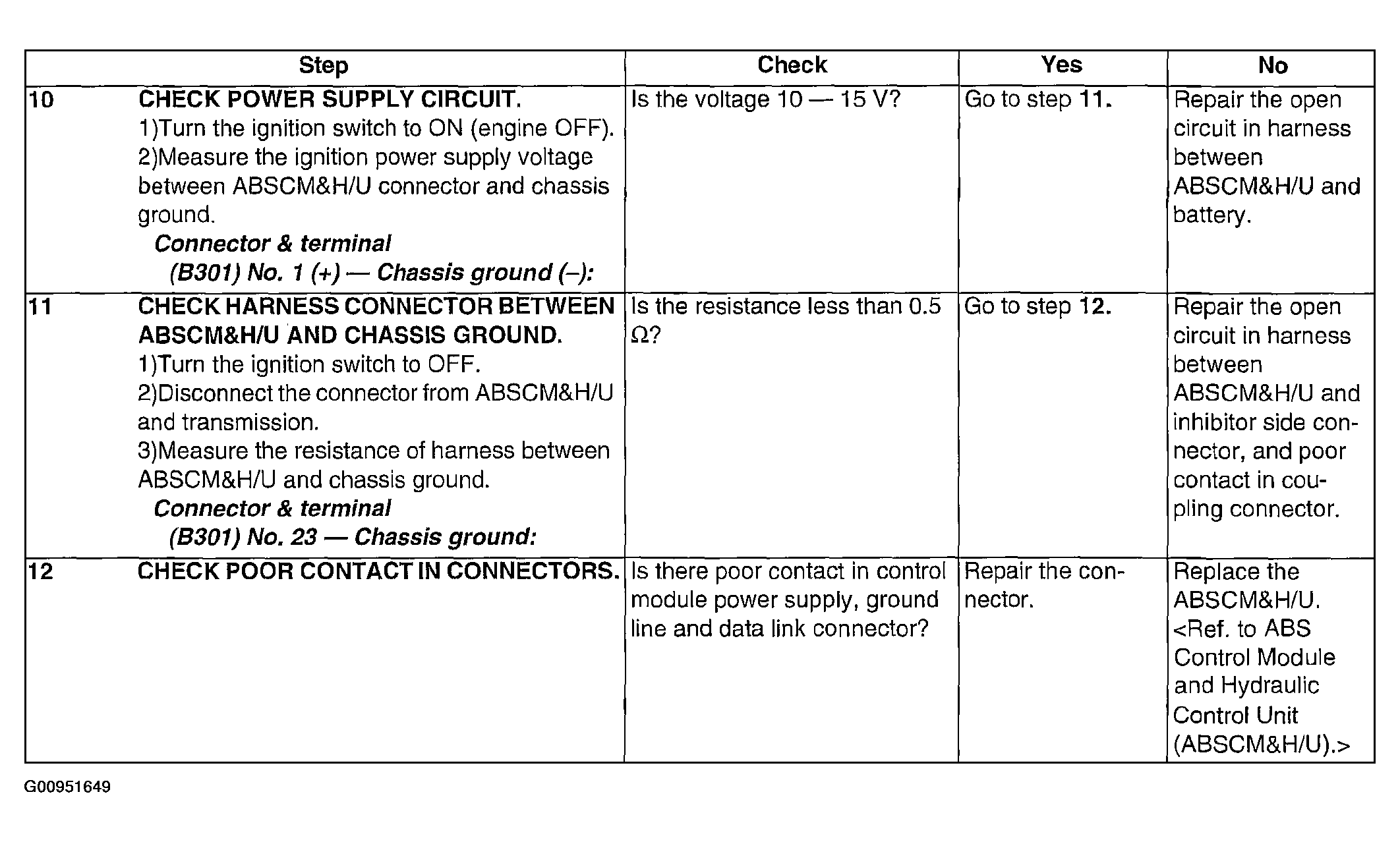

Fig 2: Communication For Initializing Impossible Chart (2 Of 2)
G00951649Courtesy of SUBARU OF AMERICA, INC.
