Without SUBARU Select Monitor

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM& H/U connector during removal and installation.

NOTE:

To check the harness for broken wires or short circuits, shake it while holding it or the connector.
When the ABS warning light illuminates, read and record the DTC indicated by ABS warning light.

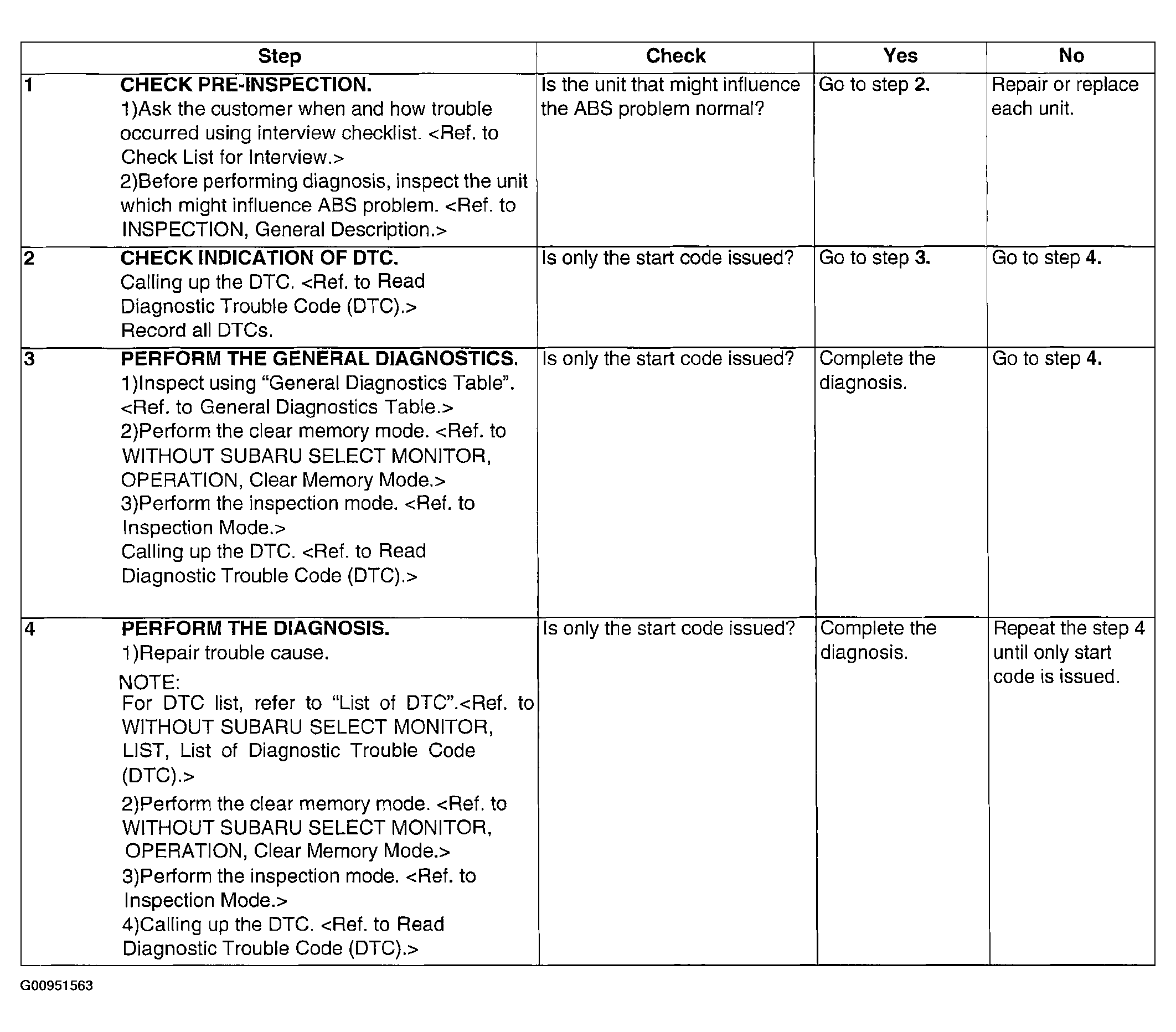

Fig 1: Procedure Without Subaru Select Monitor Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
