With SUBARU Select Monitor

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM& H/U connector during removal and installation.

NOTE:

To check the harness for broken wires or short circuits, shake it while holding it or the connector.
Check list for interview. Refer to CHECK LIST FOR INTERVIEW .

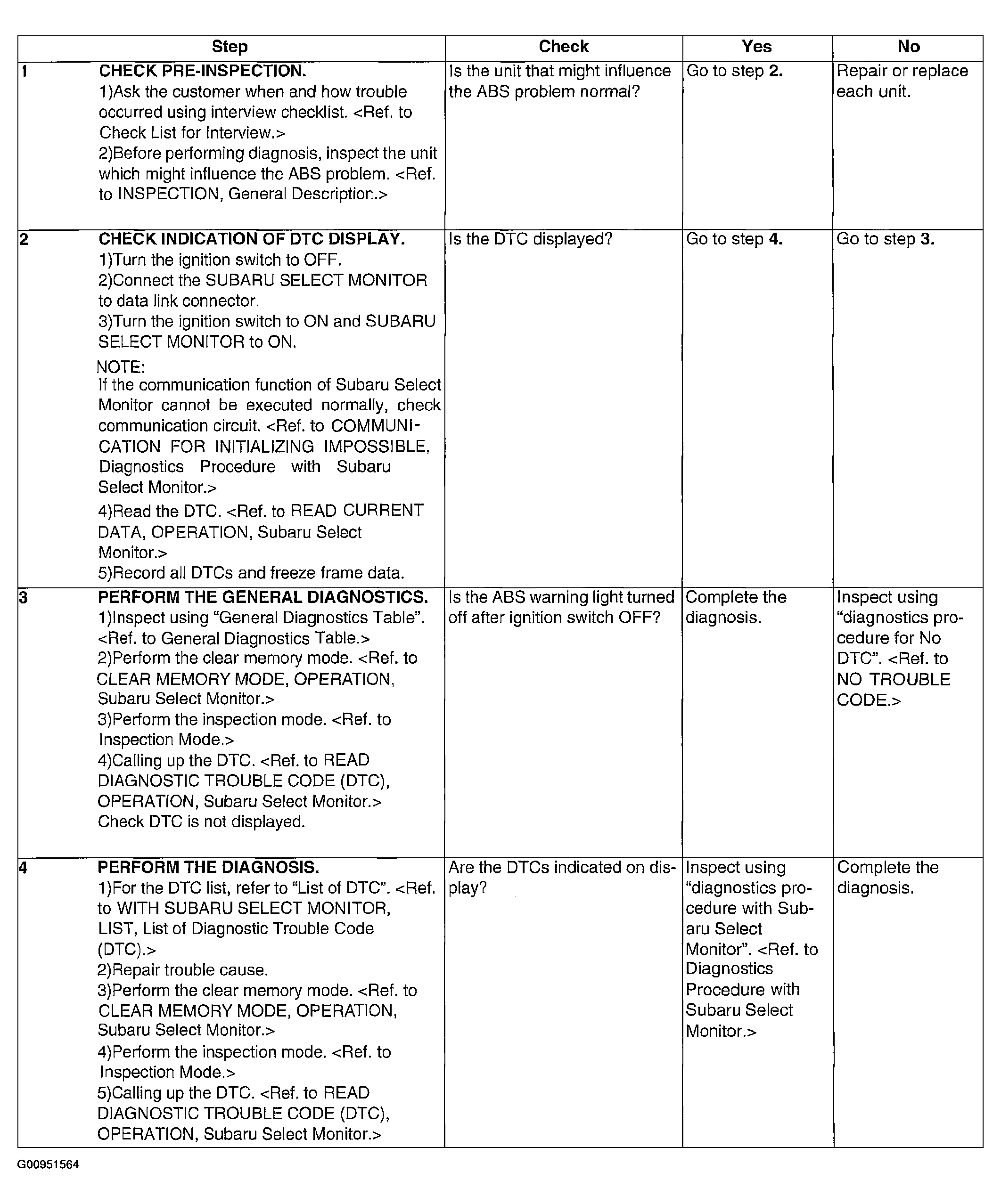

Fig 1: Procedure Without Subaru Select Monitor Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
