Pitching Stopper

Install the pitching stopper.
Tightening torque:

T1: 50 N.m (5.1 kgf-m, 37 ft-lb)

T2: 58 N.m (5.9 kgf-m, 43 ft-lb)

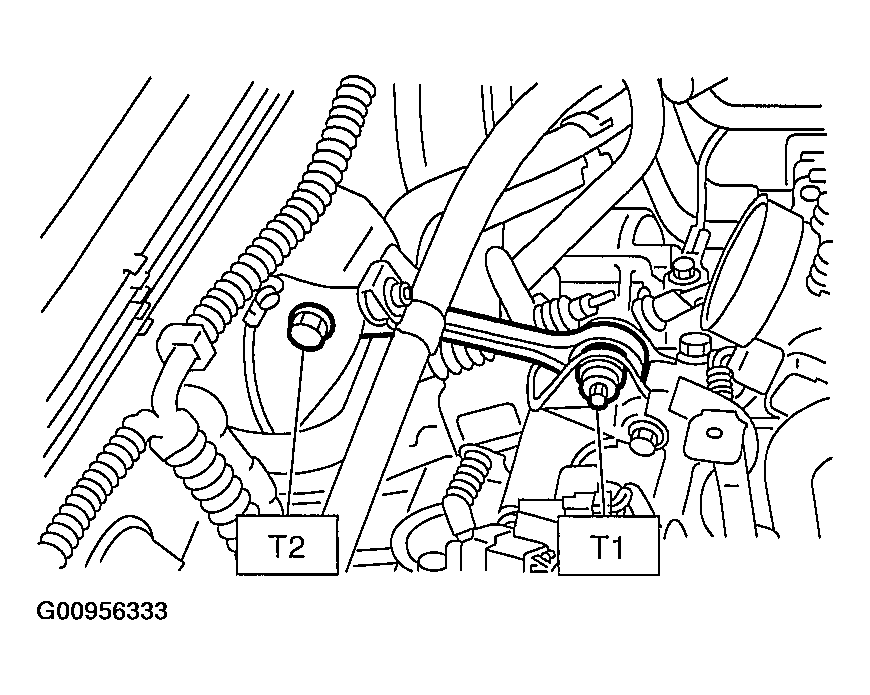

Fig 1: Installing Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case. (Non-turbo model)
< Ref. to INSTALLATION .>
Remove the intercooler. (Turbo model)
< Ref. to INSTALLATION .>
