Inhibitor Switch: Installation

  1. Connect the inhibitor switch harness connector to inhibitor switch.
  2. Install the inhibitor switch to transmission case.

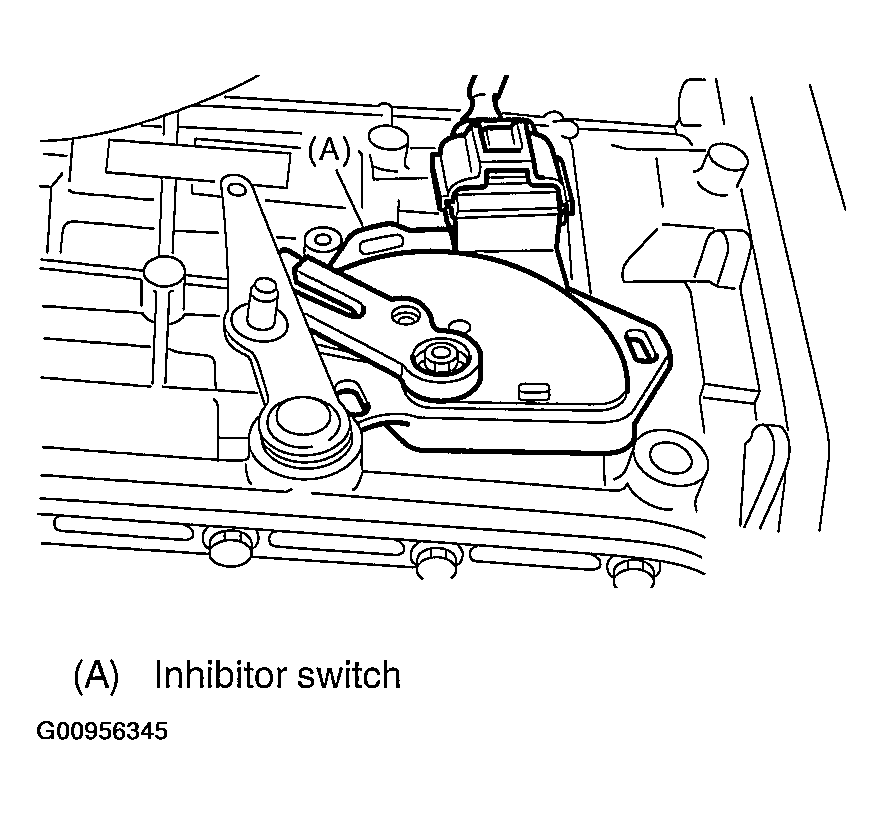

    Fig 1: Connecting Inhibitor Switch Harness Connector To Inhibitor Switch
    G00956345Courtesy of SUBARU OF AMERICA, INC.
  3. Move the range select lever to neutral position.
  4. Using the ST, tighten the bolts of inhibitor switch.

    ST 499267300 STOPPER PIN

    Tightening torque:

    3.5 N.m (0.36 kgf-m, 2.6 ft-lb)

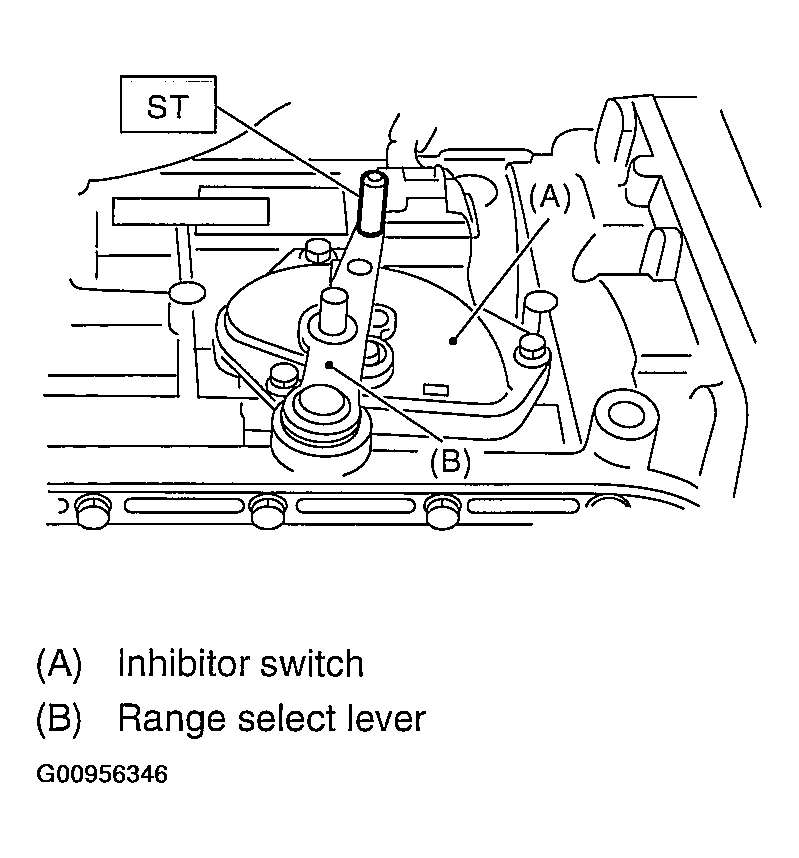

    Fig 2: Tightening Bolts Of Inhibitor Switch
    G00956346Courtesy of SUBARU OF AMERICA, INC.
  5. Install the select cable to range select lever.
  6. Install the plate assembly to transmission.

    Tightening torque:

    T: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

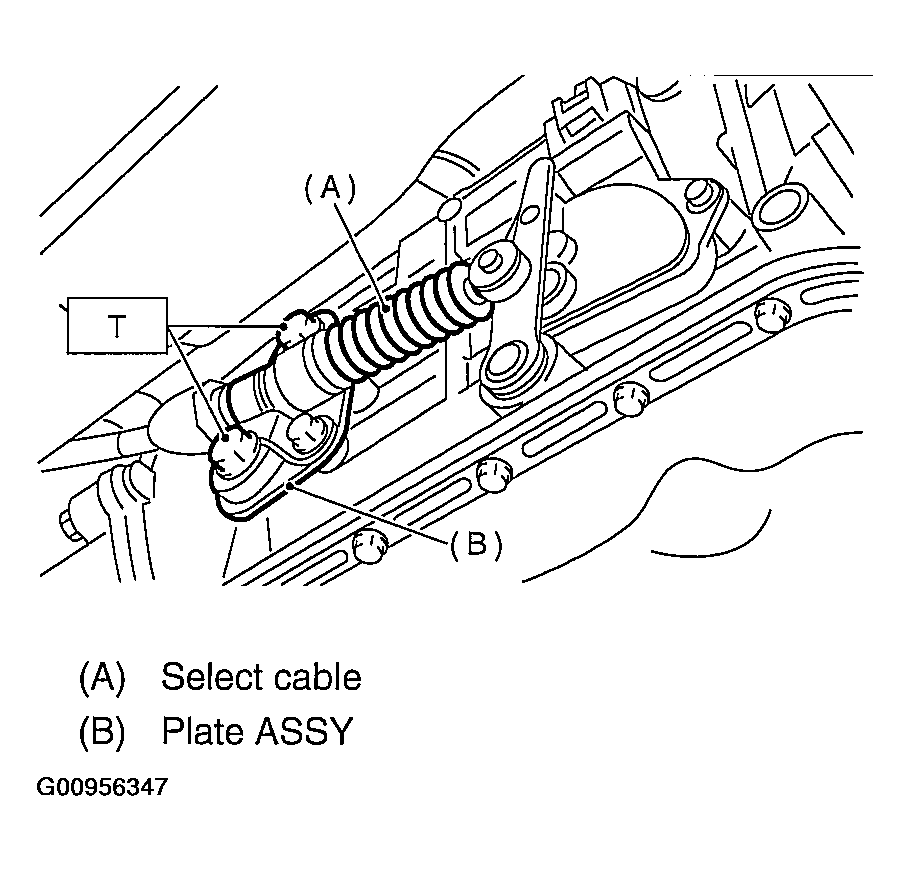

    Fig 3: Installing Plate Assembly To Transmission
    G00956347Courtesy of SUBARU OF AMERICA, INC.
  7. Install the washer and snap pin to range select lever.

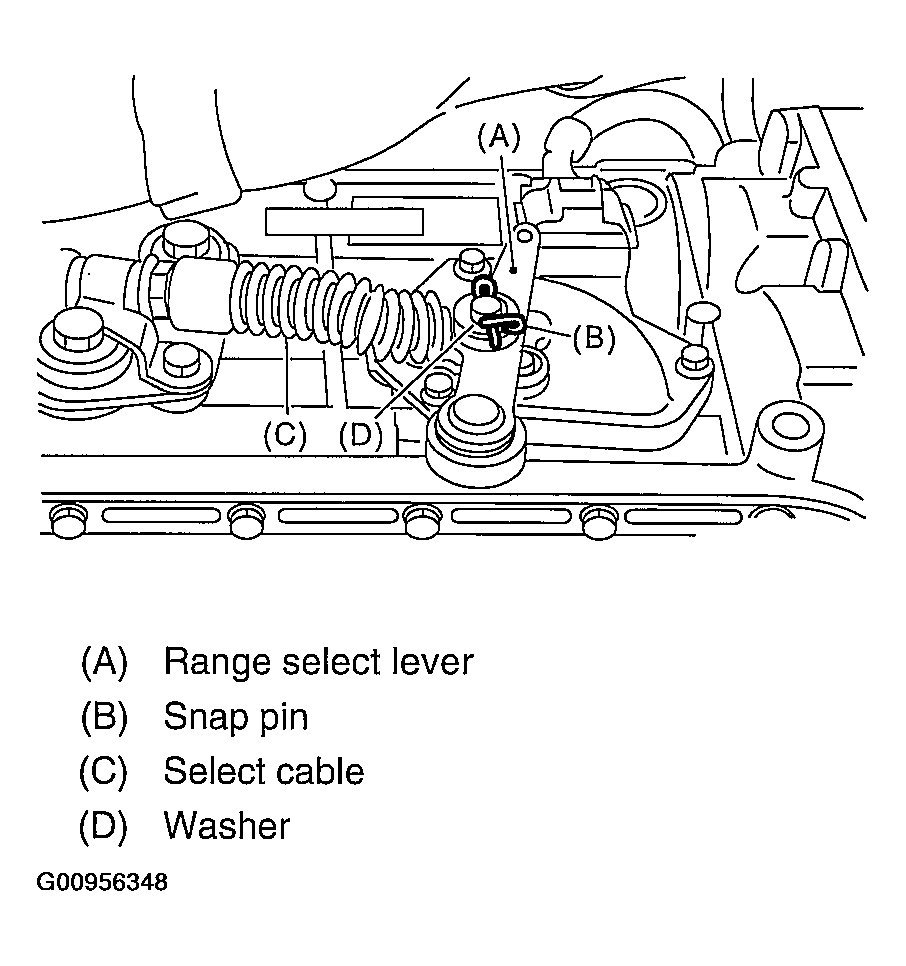

    Fig 4: Installing Washer And Snap Pin To Range Select Lever
    G00956348Courtesy of SUBARU OF AMERICA, INC.
  8. Install the front and center exhaust pipes. (Non-turbo model)

    < Ref. to INSTALLATION Pipe.>

  9. Install the center exhaust pipe. (Turbo model)

    < Ref. to INSTALLATION .>

  10. Lower the vehicle.
  11. Install the inhibitor switch connector from stay.
  12. Connect the inhibitor switch connector.

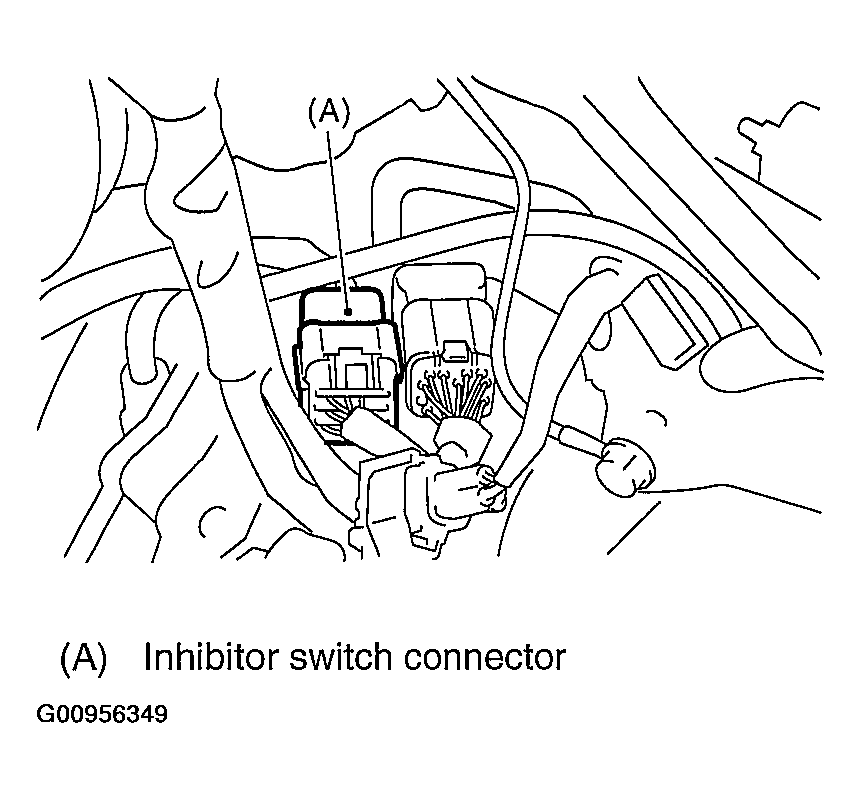

    Fig 5: Connecting Inhibitor Switch Connector
    G00956349Courtesy of SUBARU OF AMERICA, INC.
  13. Install the air cleaner case. (Non-turbo model)

    < Ref. to INSTALLATION .>

  14. Install the intercooler. (Turbo model)

    < Ref. to INSTALLATION .>

  15. Inspect the inhibitor switch. < Ref. to INSPECTION <-- , Inhibitor Switch -->.>
