Automatic Transmission
>>
General Description
>>
Component
>>
Control Valve And Harness Routing
Control Valve And Harness Routing

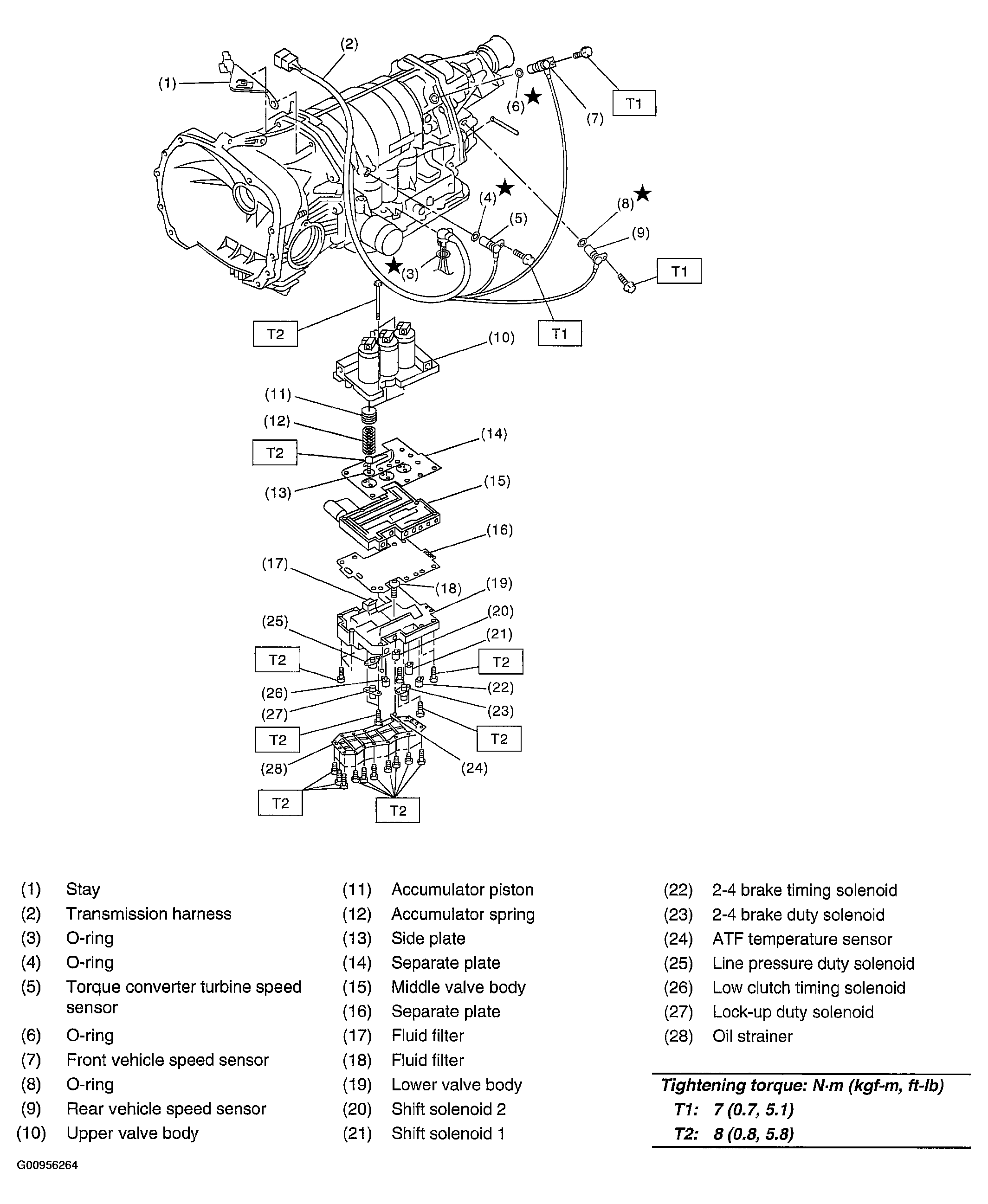

Fig 1: Exploded View Of Control Valve And Harness Routing With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
