Front Differential: Removal

  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL <-- , Automatic Transmission Assembly -->.>
  2. Extract the torque converter clutch assembly.

    < Ref. to REMOVAL <-- , Torque Converter Clutch Assembly -->.>

  3. Remove the input shaft.

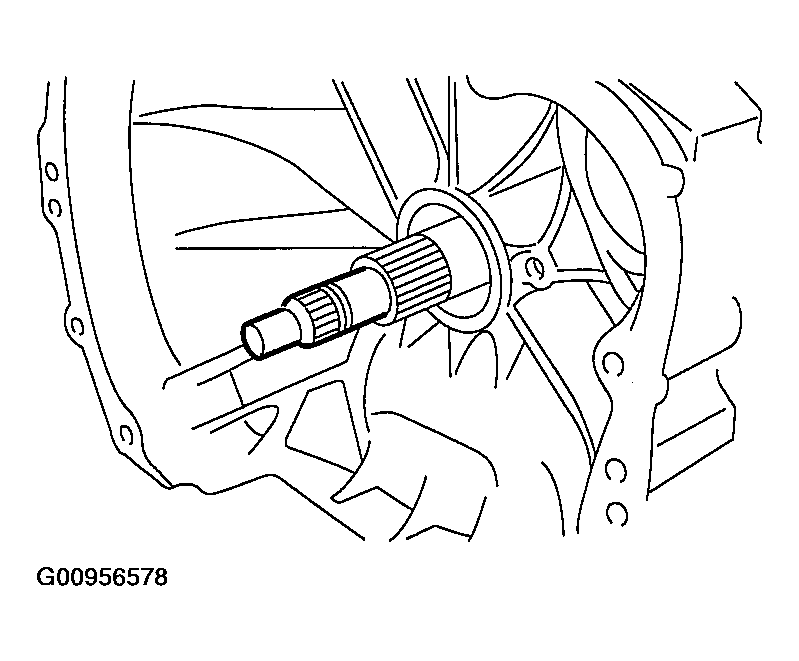

    Fig 1: Removing Input Shaft
    G00956578Courtesy of SUBARU OF AMERICA, INC.
  4. Lift-up the lever behind the transmission harness connector and disconnect it from stay.
  5. Disconnect the inhibitor switch from stay.
  6. Remove the oil charger pipe. < Ref. to REMOVAL <-- , Oil Charger Pipe -->.>
  7. Remove the oil cooler inlet and outlet pipes. < Ref. to REMOVAL <-- , ATF Cooler Pipe and Hose -->.>
  8. Separate the torque converter clutch case and transmission case. < Ref. to REMOVAL <-- , Torque Converter Clutch Case -->.>
  9. Remove the seal pipe.
  10. Remove the differential side retainer with ST.
    NOTE: Hold the differential case assembly by hand to avoid damaging retainer mounting hole of the torque converter clutch case.

    ST 499787000 WRENCH ASSY

  11. Remove the differential assembly without damaging installation part of retainer.
