Differential Case Assembly

Using a press and ST, remove the taper roller bearing.
ST 498077000 REMOVER

Fig 1: Removing Taper Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.

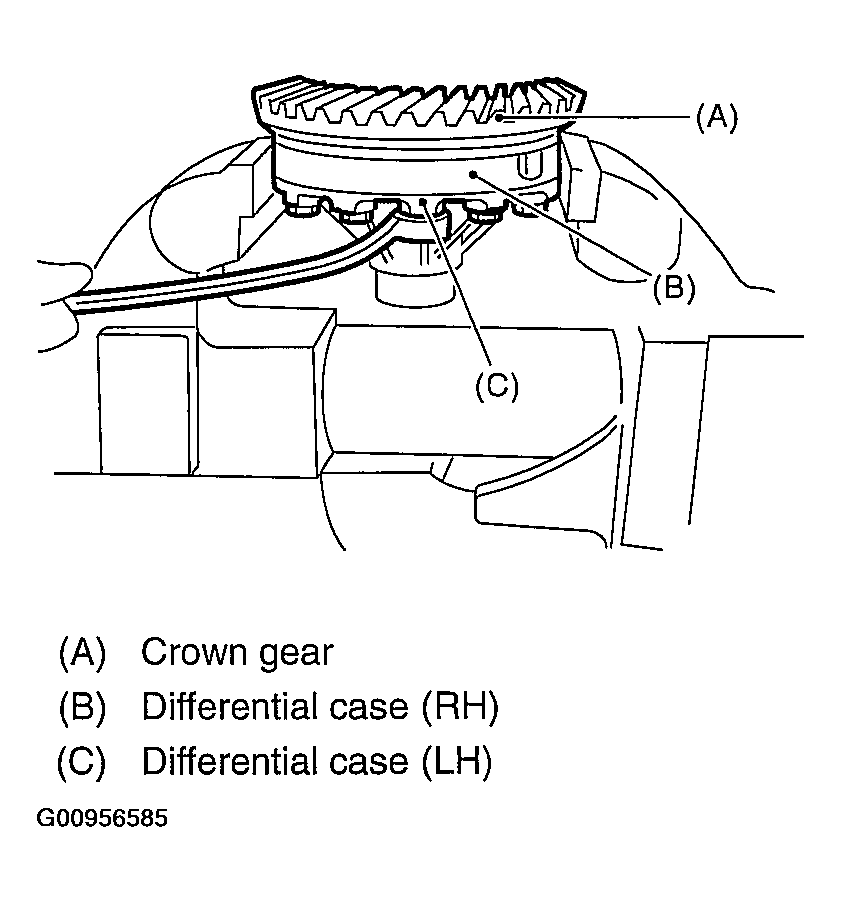

Secure the case in a vise and remove the crown gear tightening bolts, then separate the crown gear, case (RH) and case (LH).

Fig 2: Separating Crown Gear, Case (RH) And Case (LH)
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.

Fig 3: Removing Straight Pin And Shaft
Courtesy of SUBARU OF AMERICA, INC.
