Extension Case: Removal

Remove the transmission assembly, < Ref. to REMOVAL <-- , Automatic Transmission Assembly -->.>
Remove rear vehicle speed sensor.
- MPT MODEL

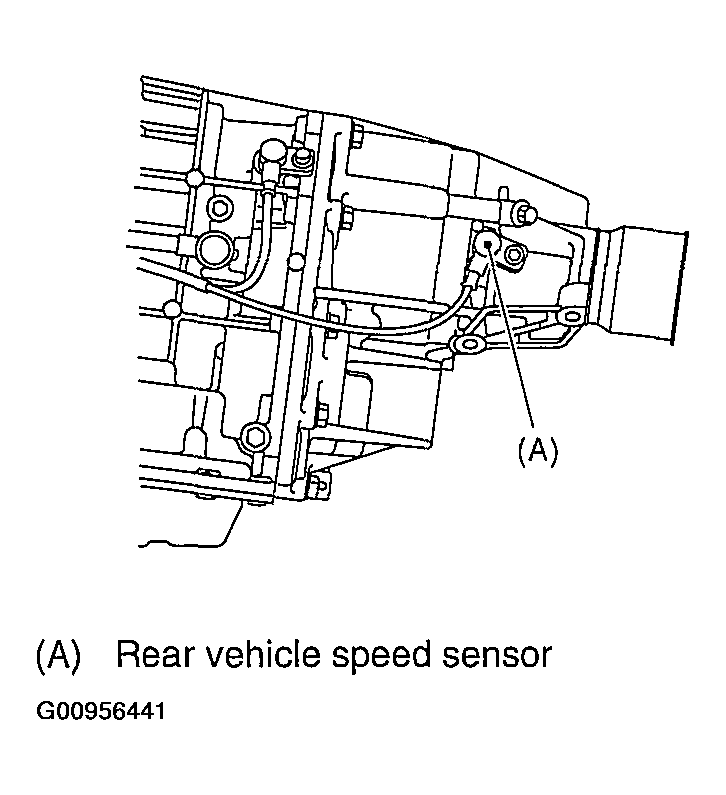

  Fig 1: Removing Rear Vehicle Speed Sensor (MPT Model)
  Courtesy of SUBARU OF AMERICA, INC.
- VTD MODEL

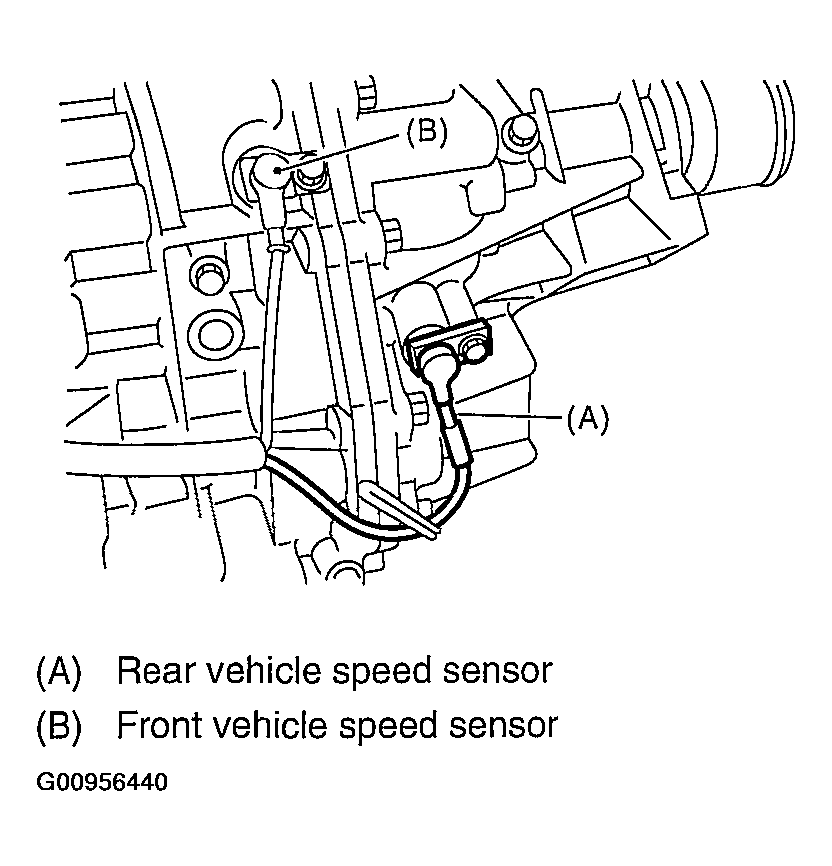

  Fig 2: Removing Rear Vehicle Speed Sensor (VTD Model)
  Courtesy of SUBARU OF AMERICA, INC.
Separate transmission case and extension case sections.

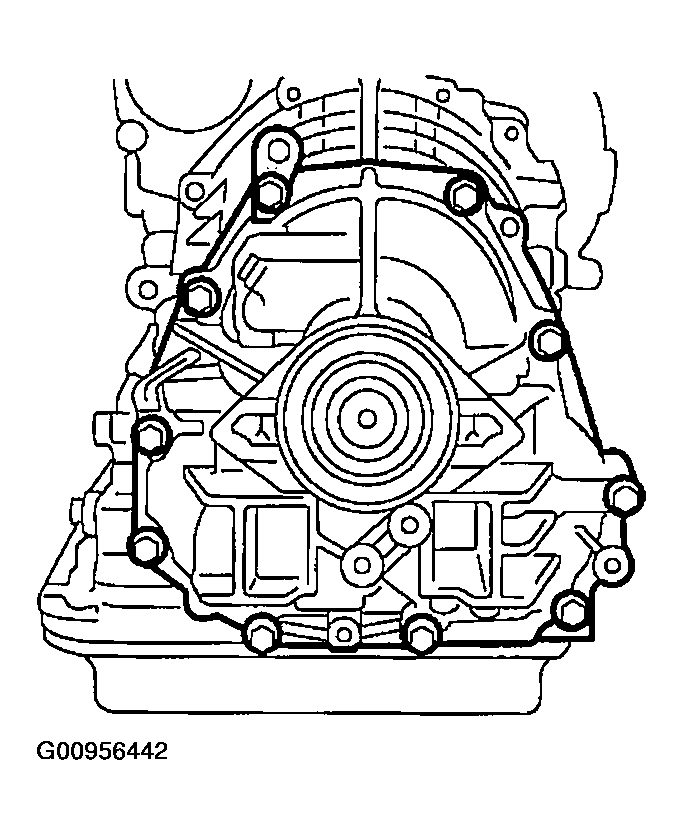

Fig 3: Separating Transmission Case And Extension Case Sections
Courtesy of SUBARU OF AMERICA, INC.
