Dropping Resistor: Removal

NOTE: Dropping resistor is installed on non-turbo models only.
  1. Disconnect the ground cable from battery.

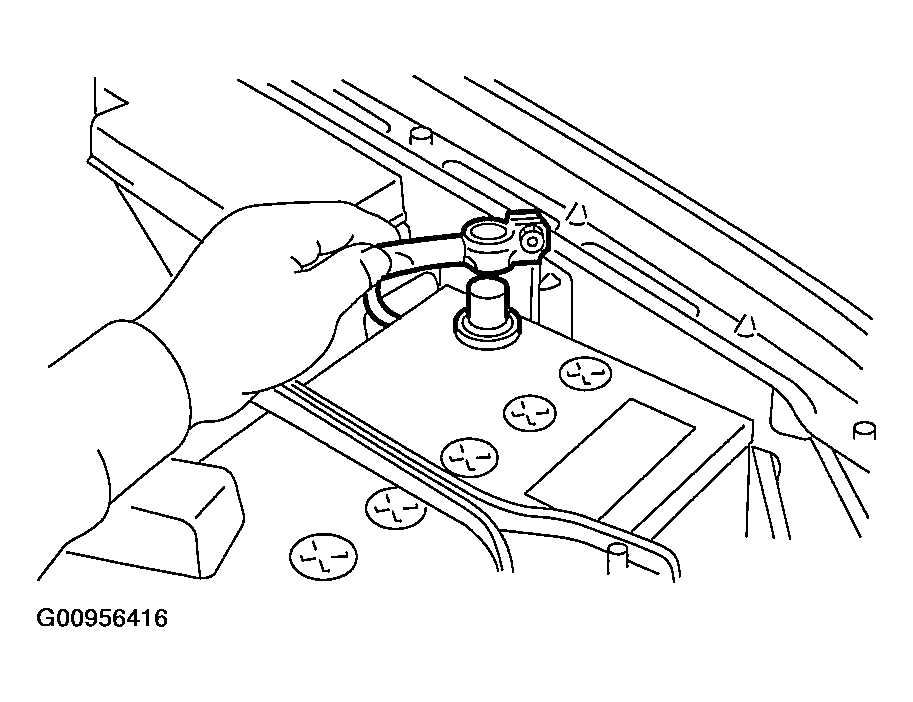

    Fig 1: Disconnecting Ground Cable From Battery
    G00956416Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake duct. < Ref. to REMOVAL .>
  3. Disconnect the connector from dropping resistor.
  4. Remove the dropping resistor.
    Fig 2: Removing Dropping Resistor
    G00956417Courtesy of SUBARU OF AMERICA, INC.
