At Main Case: Installation

Install the low and reverse piston without tilting.
NOTE: Be careful not to damage the lip seal.

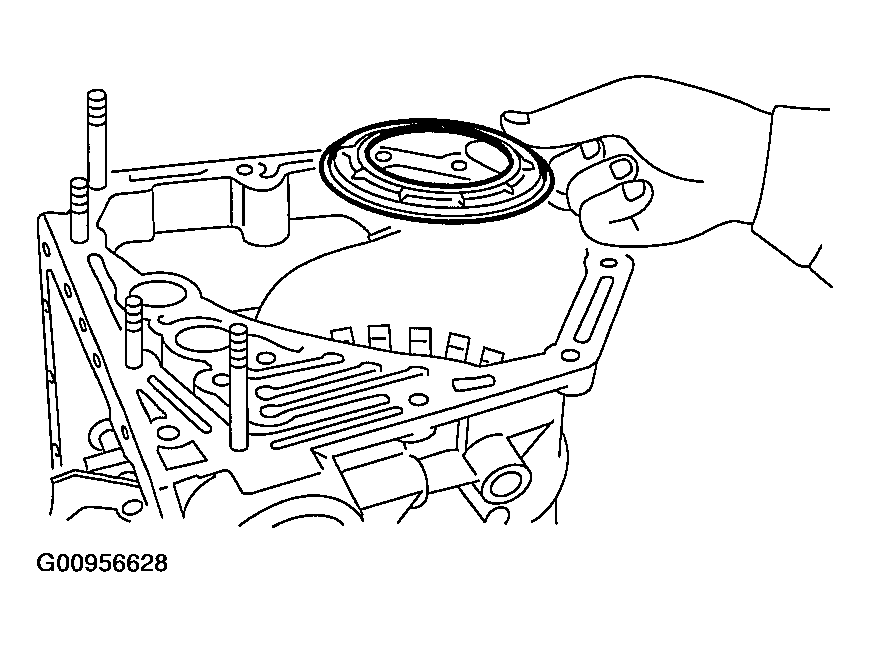

Fig 1: Installing Low And Reverse Piston Without Tilting
Courtesy of SUBARU OF AMERICA, INC.
Install the return spring.

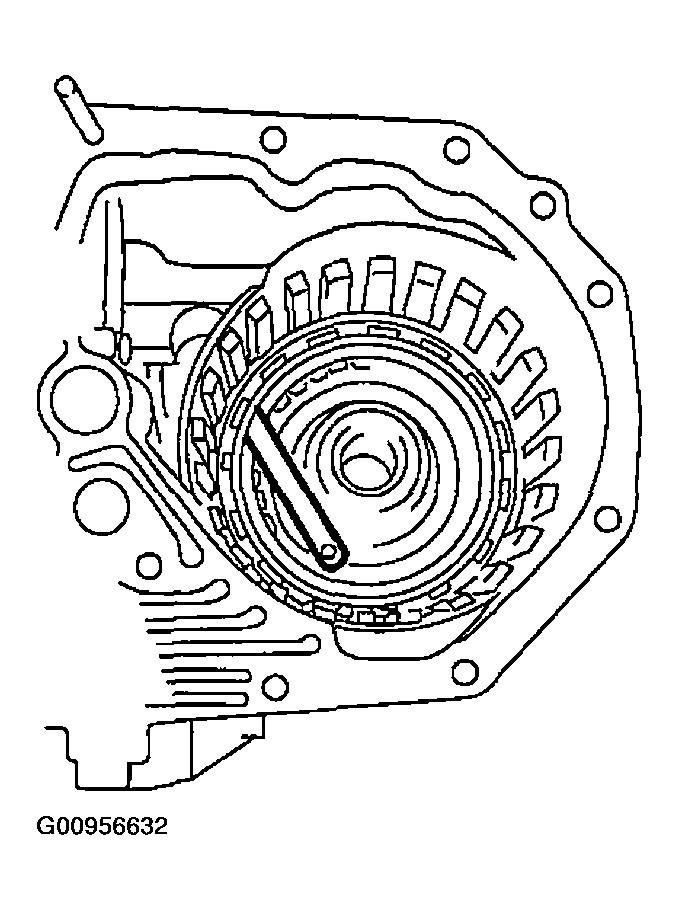

Fig 2: Installing Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the spring retainer.

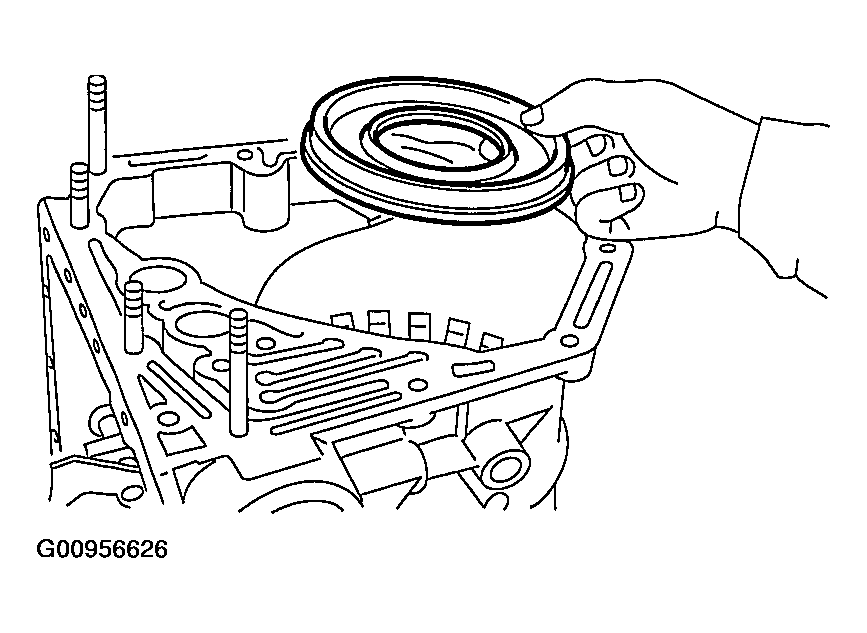

Fig 3: Installing Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
Install the one-way clutch inner race, spring retainer and return spring.
Tighten the socket head bolts evenly from the rear side of transmission case.
Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

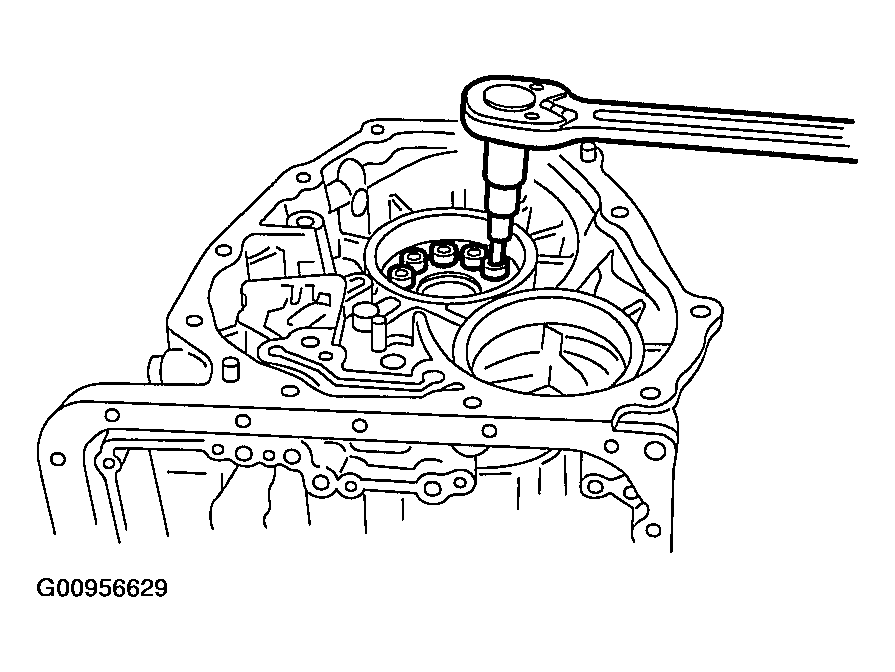

Fig 4: Tightening Socket Head Bolts
Courtesy of SUBARU OF AMERICA, INC.
Place the front side of transmission body upward.
Install thrust needle bearing.
Installation of the low & reverse brake:
Install dish plate, driven plates, drive plates, and a retaining plate, and secure with a snap ring.

NOTE: Pay attention to the orientation of the dish plate.

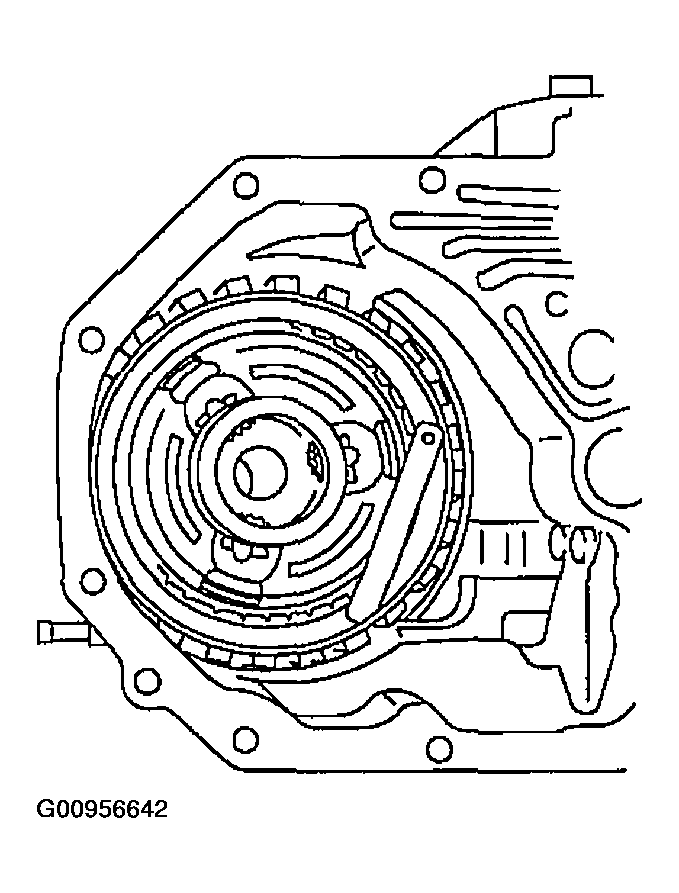

Fig 5: Placing Front Side Of Transmission Body Upward
Courtesy of SUBARU OF AMERICA, INC.
Apply compressed air intermittently to check for operation.

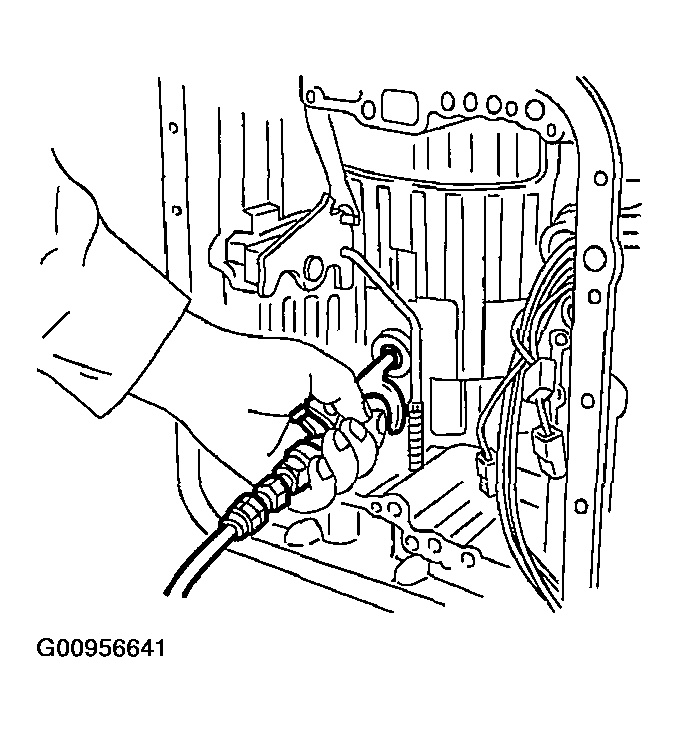

Fig 6: Applying Compressed Air
Courtesy of SUBARU OF AMERICA, INC.
Check the clearance and select the retaining plate. Place the same thickness of shim on both sides to prevent the retaining plate from tilting.
Standard value:

0.7 - 1.2 mm (0.028 - 0.047 in)

Allowable limit:

2.2 mm (0.087 in)

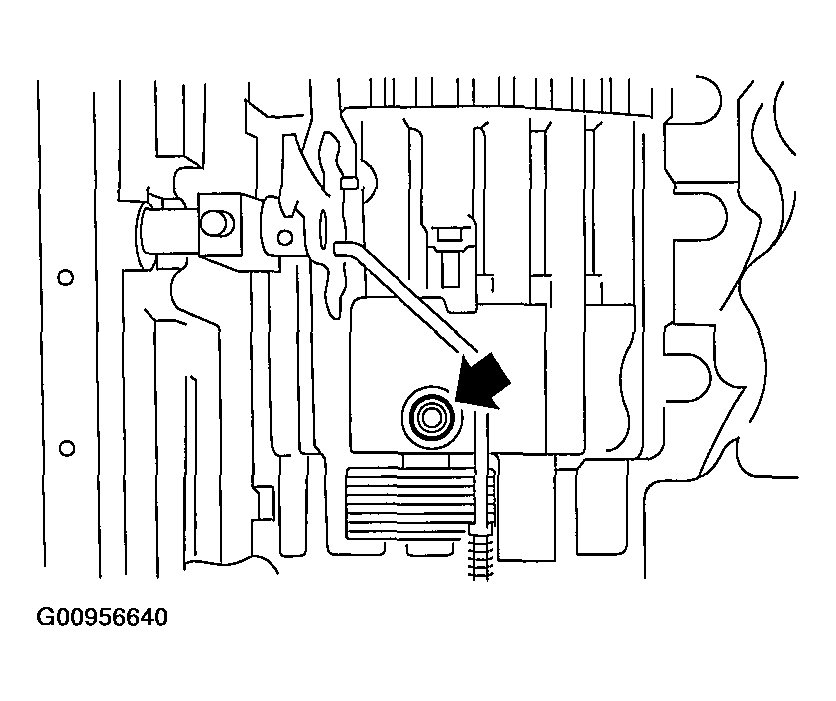

Fig 7: Checking Clearance And Select Retaining Plate
Courtesy of SUBARU OF AMERICA, INC.

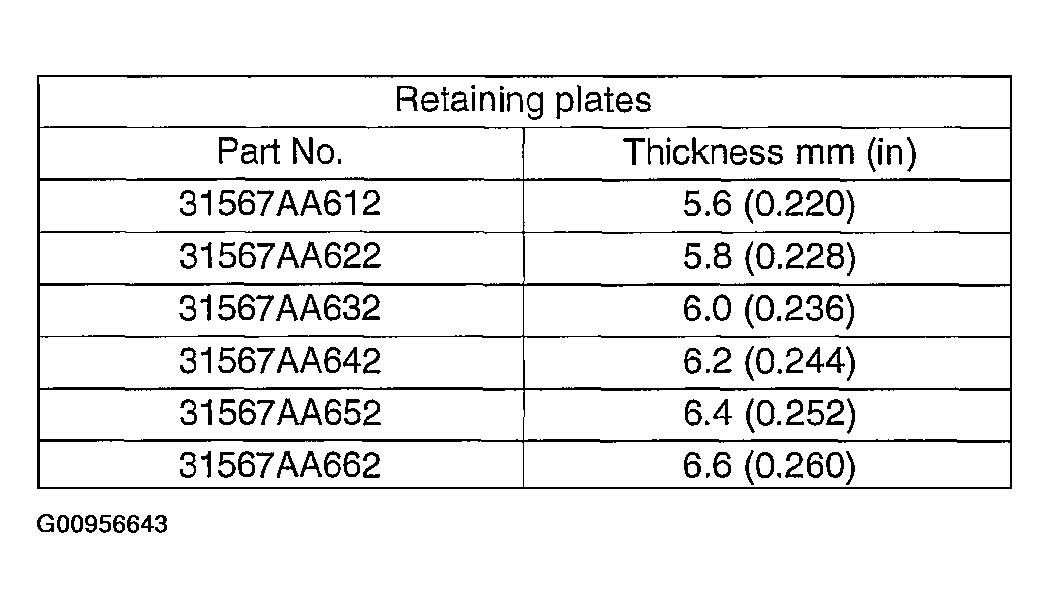

Fig 8: Retaining Plate Thickness
Courtesy of SUBARU OF AMERICA, INC.
Install the low & reverse brake leaf spring.

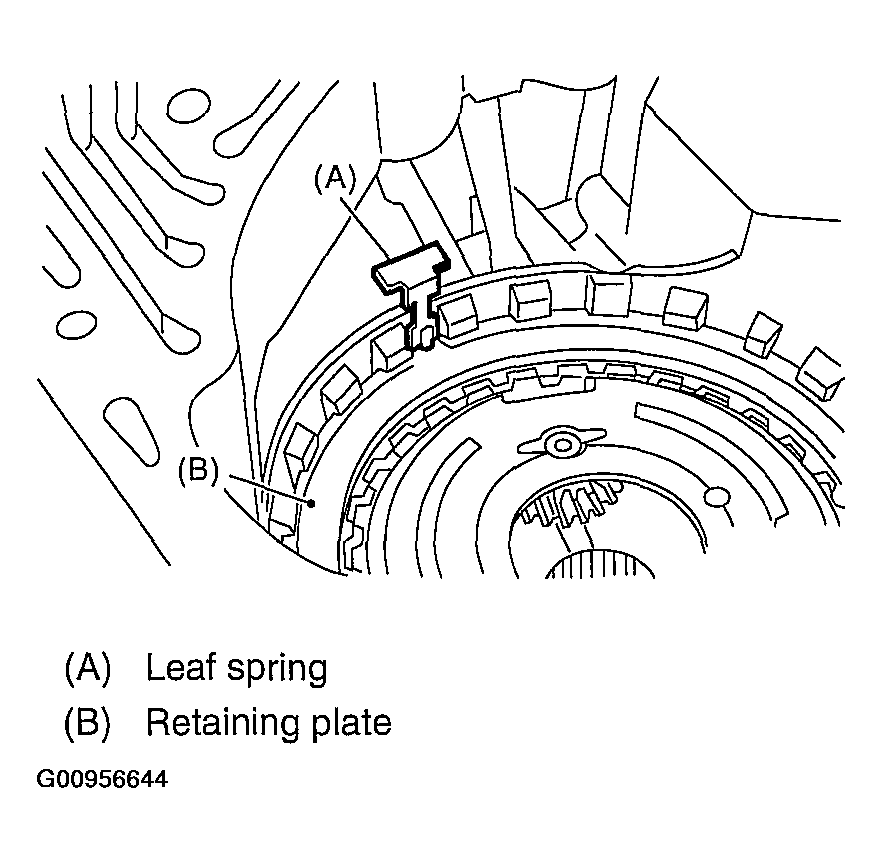

Fig 9: Installing Low & Reverse Brake Leaf Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the 2-4 brake piston and 2-4 brake retainer by aligning the hole of 2-4 brake retainer and the hole of transmission case.

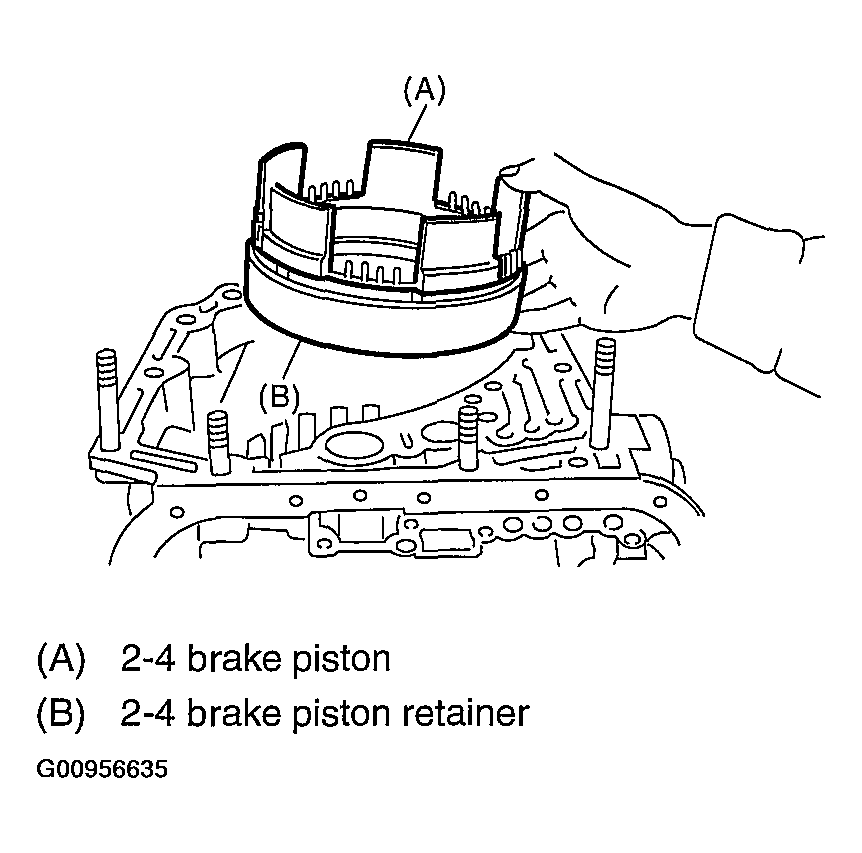

Fig 10: Installing 2-4 Brake Piston And 2-4 Brake Retainer
Courtesy of SUBARU OF AMERICA, INC.
Install the 2-4 brake piston return spring to transmission case.

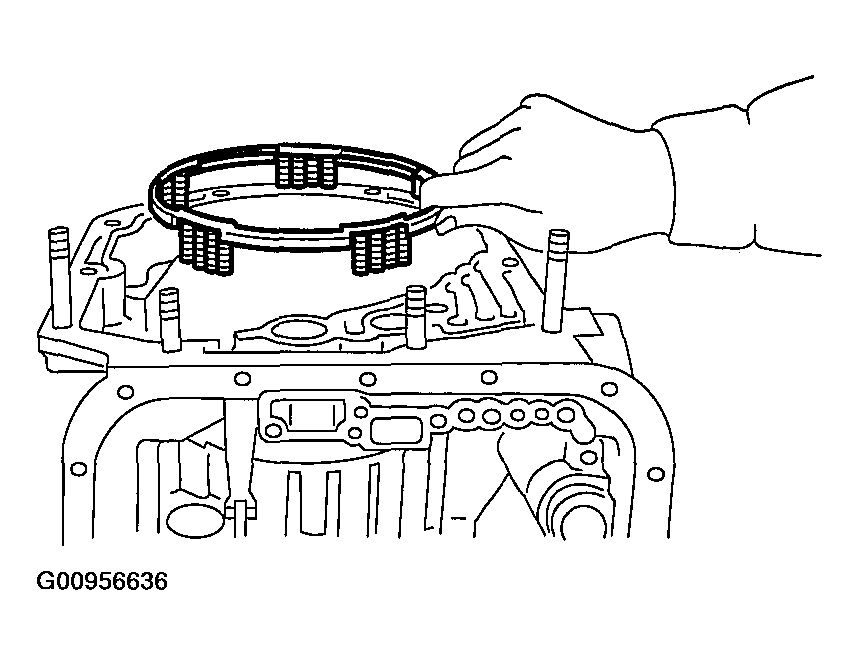

Fig 11: Installing 2-4 Brake Piston Return Spring To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Position the snap ring in transmission. Using ST, press the snap ring into place.
ST 498677100 COMPRESSOR

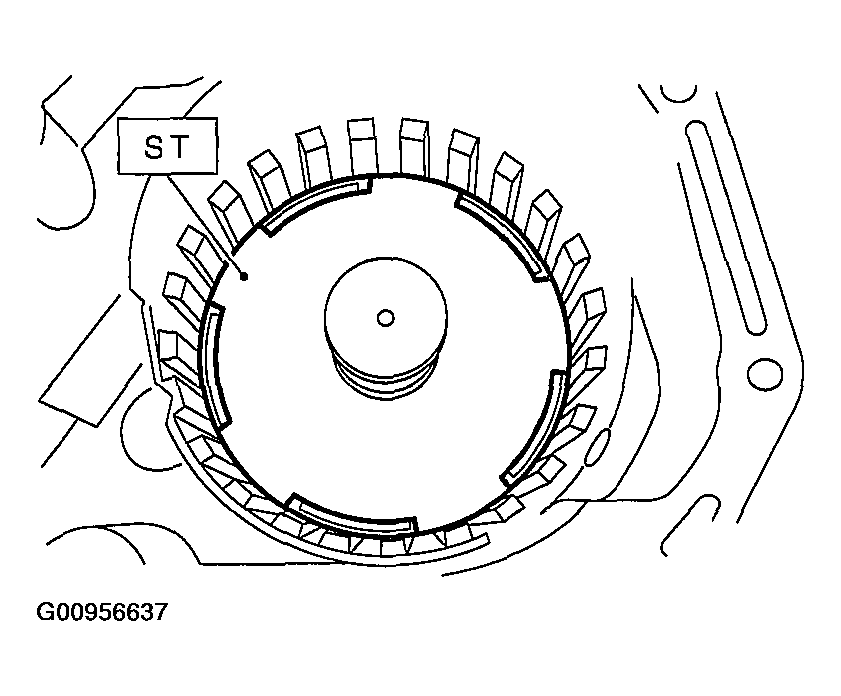

Fig 12: Positioning Snap Ring In Transmission
Courtesy of SUBARU OF AMERICA, INC.
Install the planetary gear and low clutch assembly to transmission case.
Install carefully while rotating the low clutch and planetary gear assembly slowly paying special attention not to damage the seal ring.

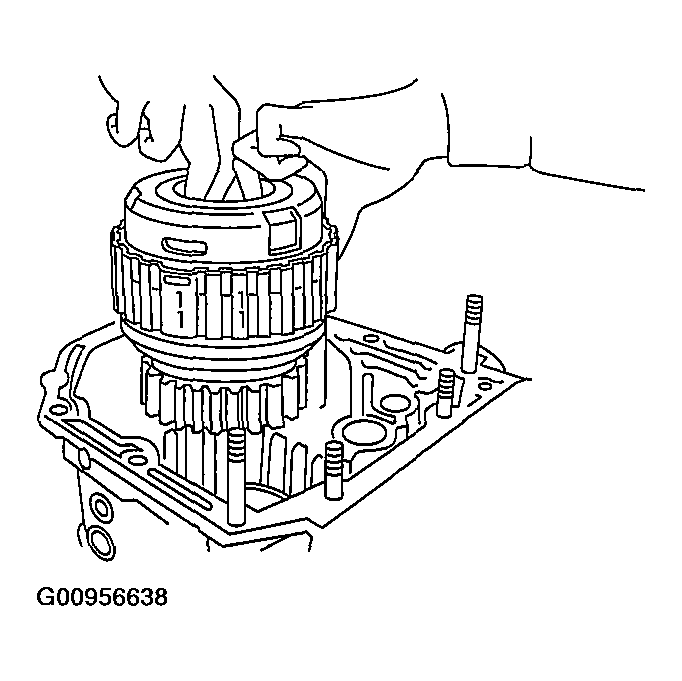

Fig 13: Installing Planetary Gear And Low Clutch Assembly To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Install pressure plate, drive plate, driven plate, retaining plate and snap ring.

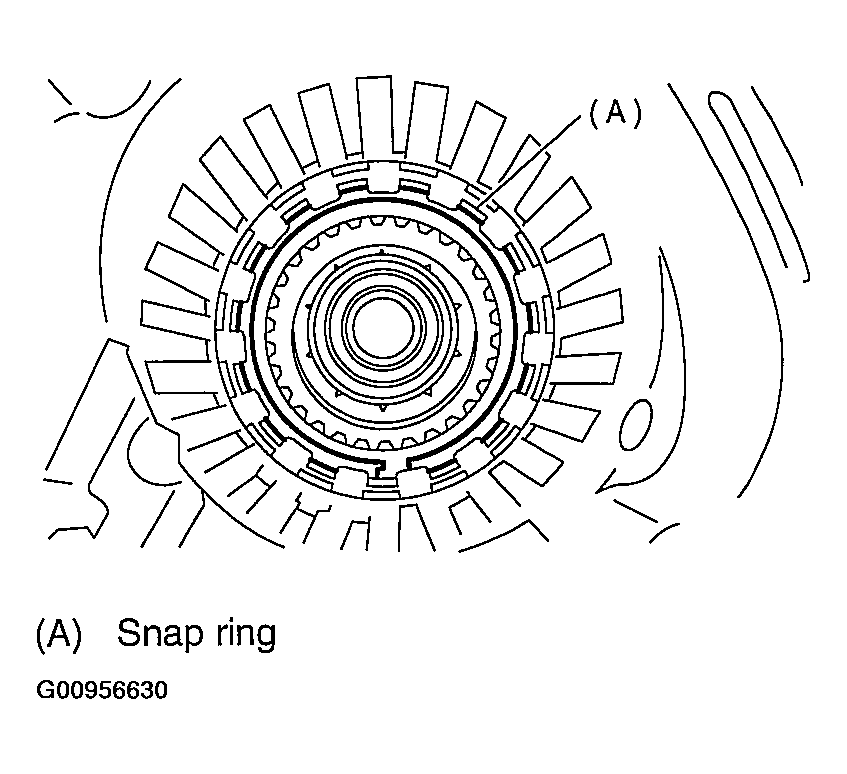

Fig 14: Installing Pressure Plate, Drive Plate, Driven Plate, Retaining Plate And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Install a new 2-4 brake oil seal to transmission case.

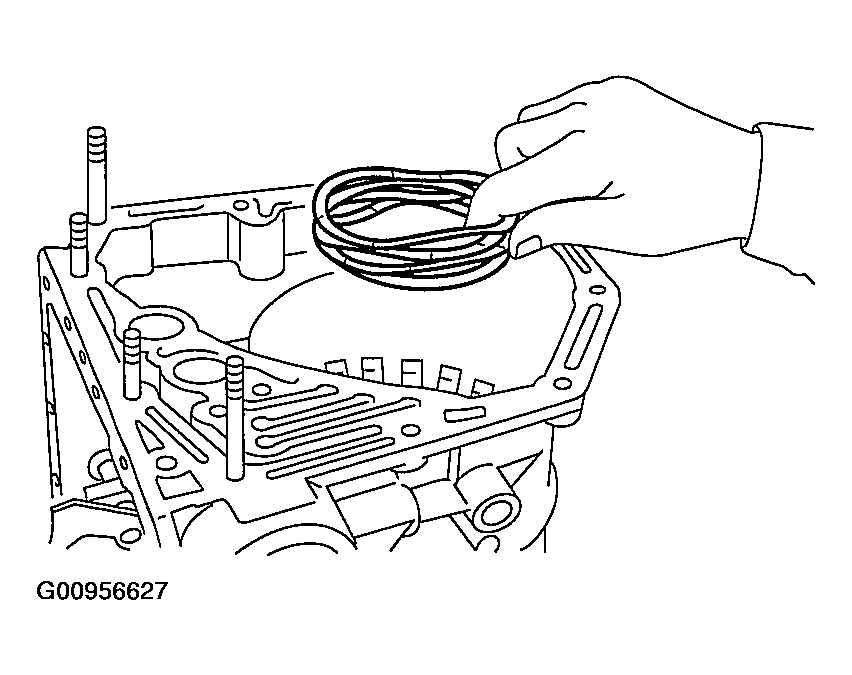

Fig 15: Installing 2-4 Brake Oil Seal To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
After all 2-4 brake component parts have been Installed, blow in air intermittently and confirm the operation of the brake.

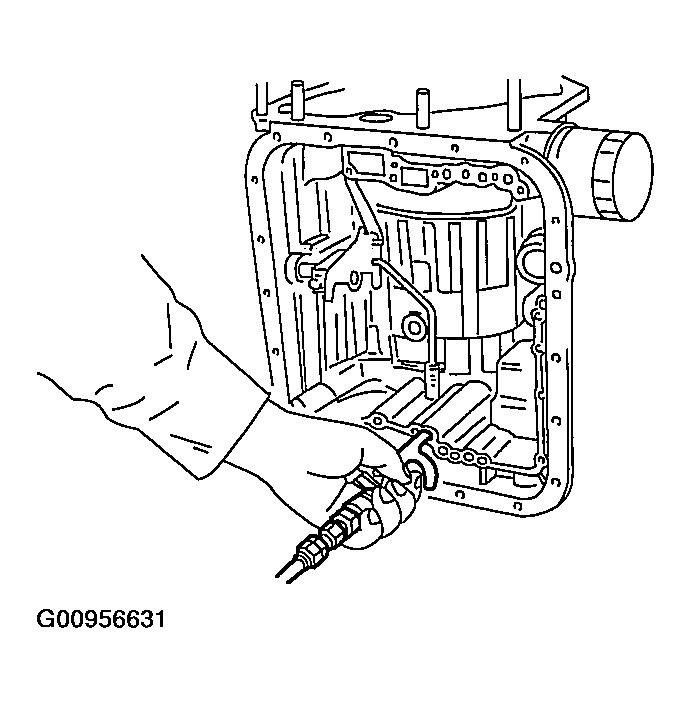

Fig 16: Applying Air Pressure
Courtesy of SUBARU OF AMERICA, INC.
Check the clearance between the retaining plate and the snap ring.
NOTE: Select a retaining plate with a suitable value from the following table, so that the clearance becomes the standard value.

Standard value:

0.8 - 1.2 mm (0.031 - 0.047 in)

Allowable limit:

1.5 mm (0.059 in)

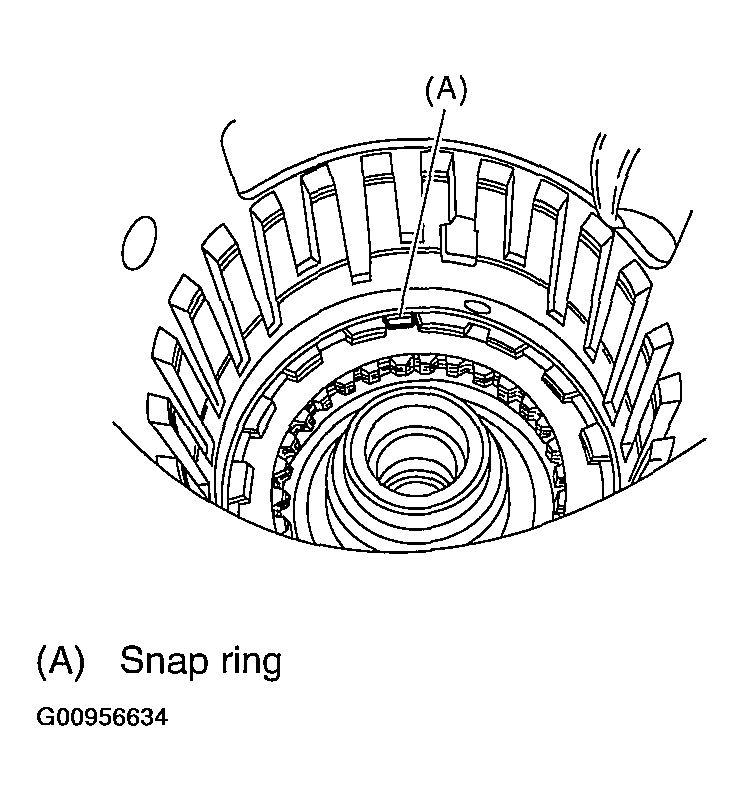

Fig 17: Checking Clearance
Courtesy of SUBARU OF AMERICA, INC.

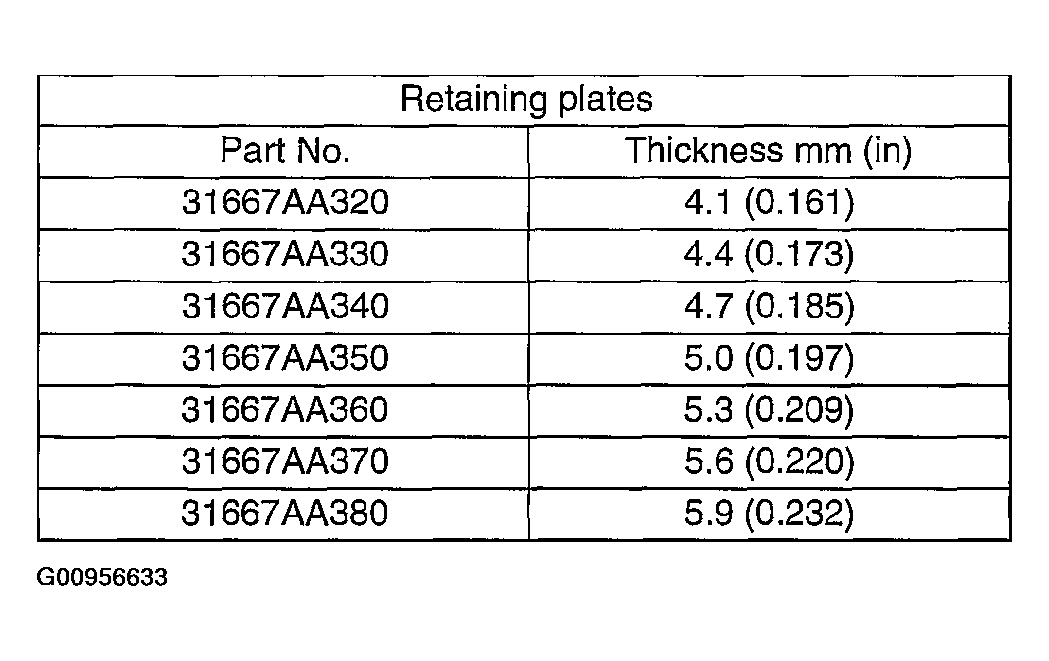

Fig 18: Retaining Plate Thickness
Courtesy of SUBARU OF AMERICA, INC.
Be careful not to mistake the location of the leaf spring to be inserted.

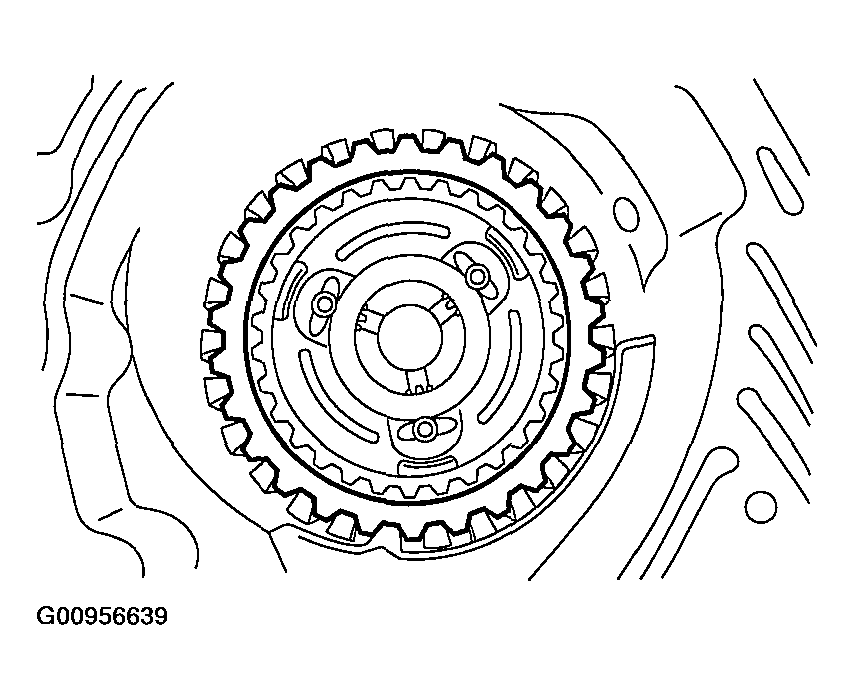

Fig 19: Identifying Leaf Spring
Courtesy of SUBARU OF AMERICA, INC.
Install thrust needle bearing in the correct direction.

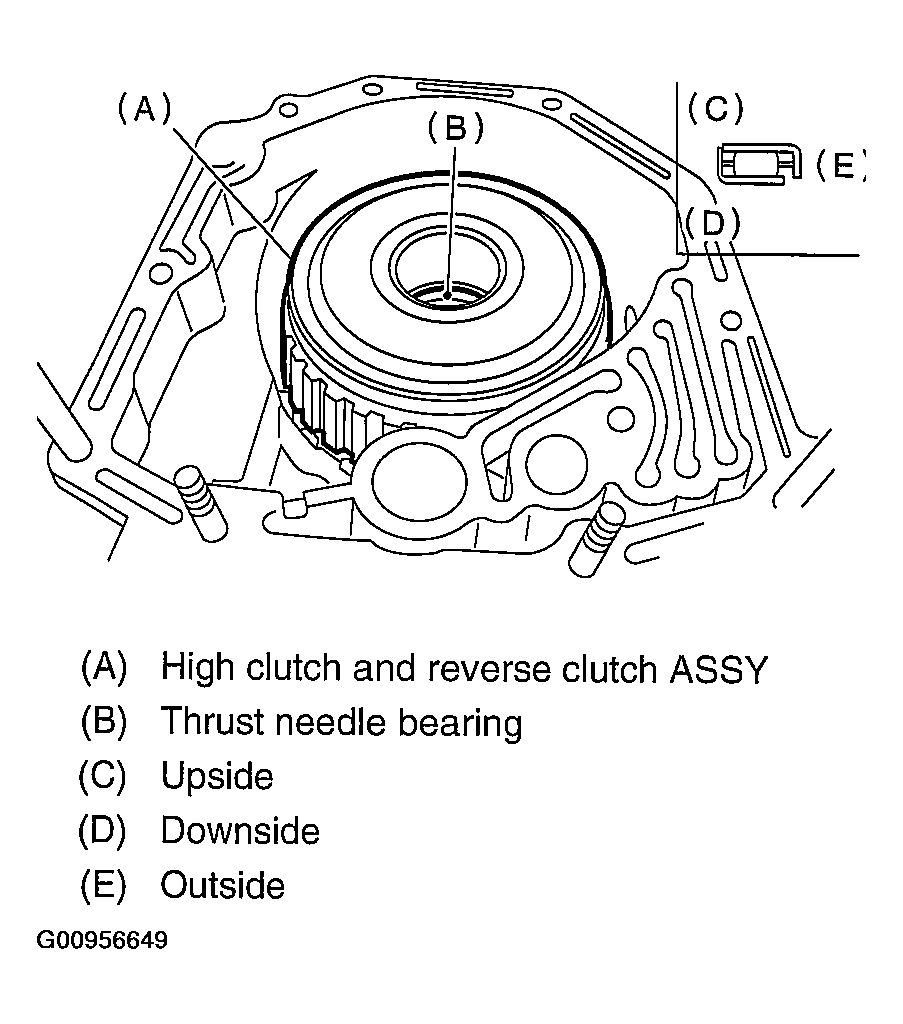

Fig 20: Installing Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Install front sun gear and thrust needle bearing.

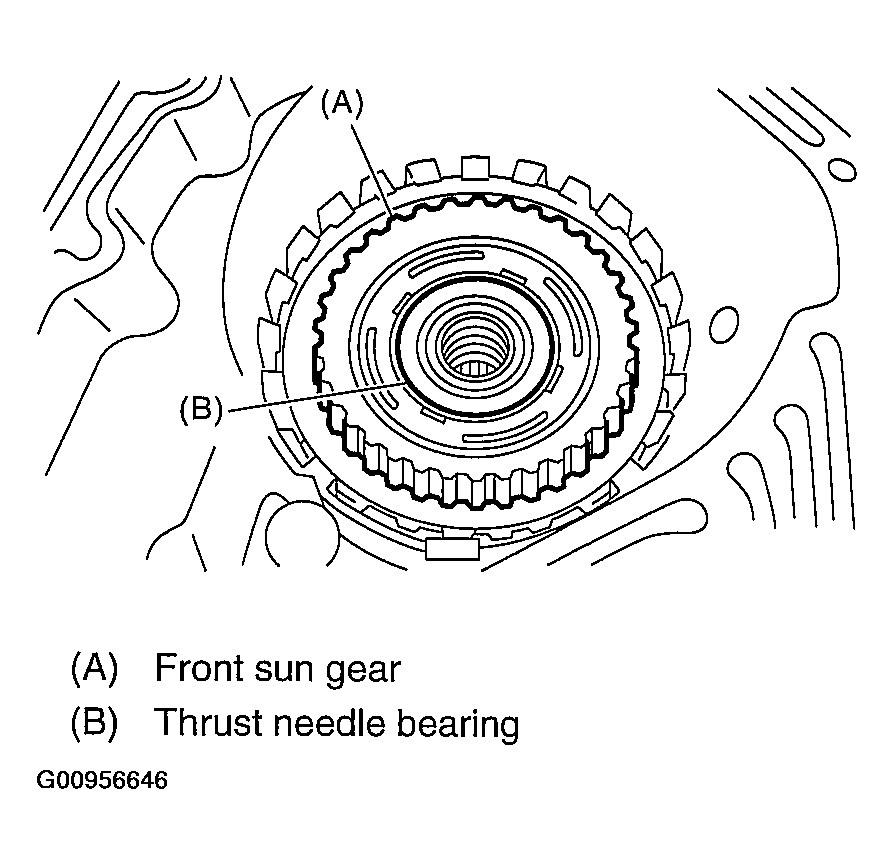

Fig 21: Installing Front Sun Gear And Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Install the high clutch hub.
Attach the thrust needle bearing to the hub with vaseline and install the hub by correctly engaging the splines of the front planetary carrier.
Install the thrust needle bearing in proper direction.

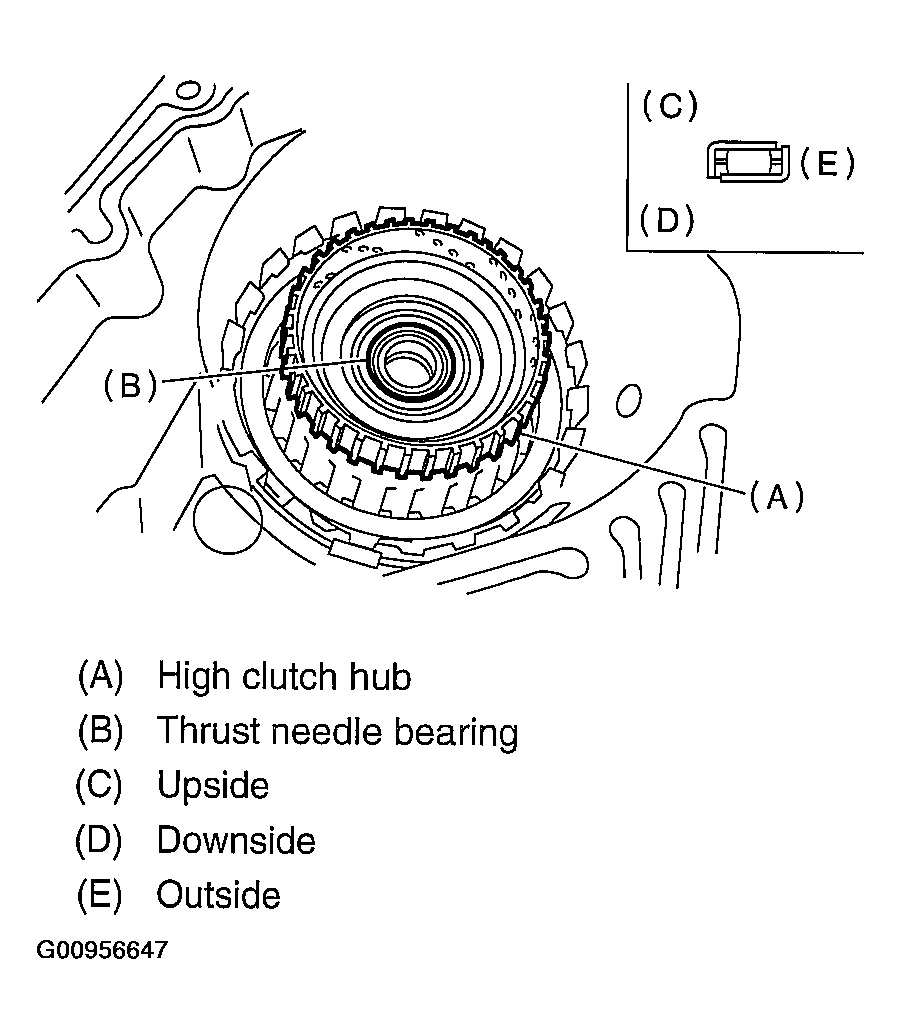

Fig 22: Installing Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Install the high clutch assembly.

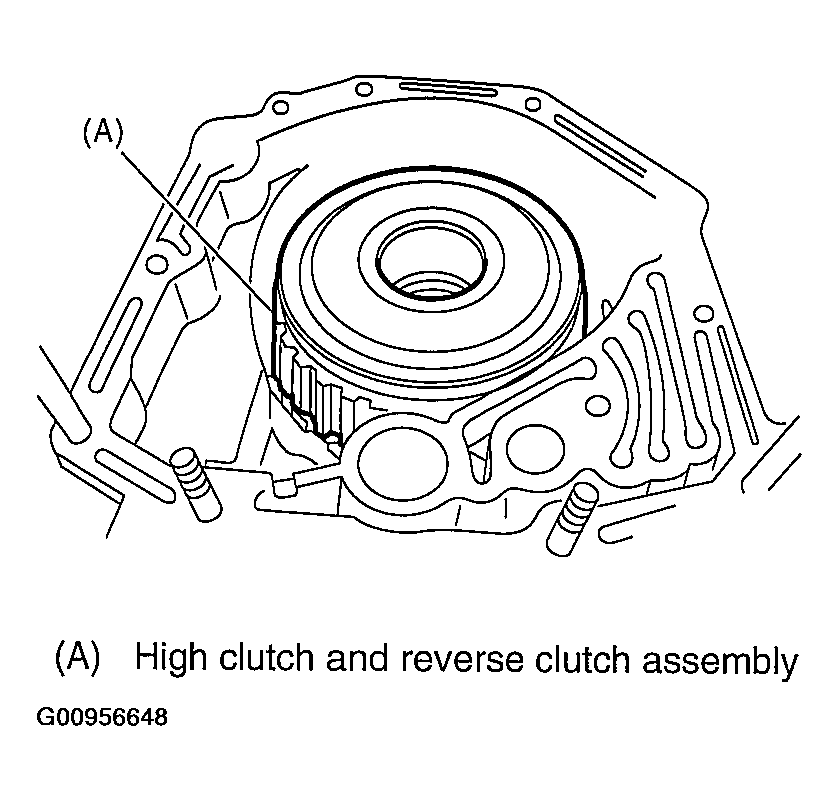

Fig 23: Installing High Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Adjust total end play. < Ref. to ADJUSTMENT <-- , Oil Pump Housing -->.>
Install the thrust needle bearing in proper direction.

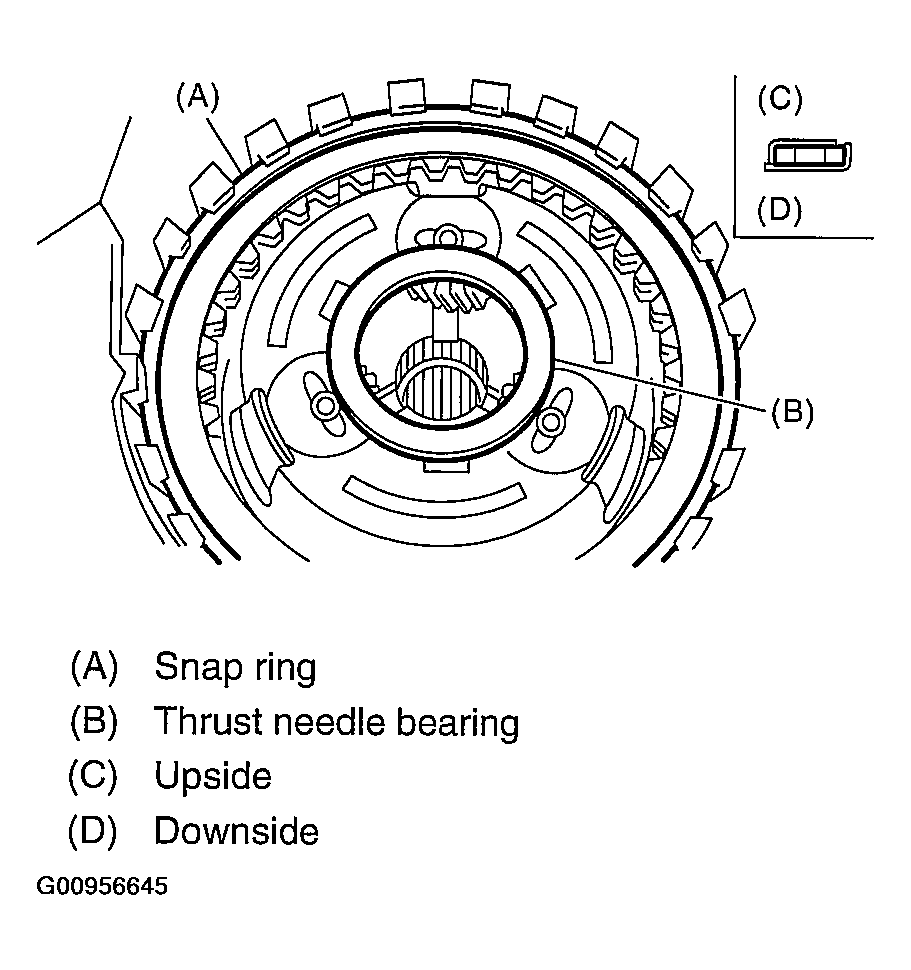

Fig 24: Adjusting Total End Play
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pump housing assembly.
Install the torque converter clutch case assembly to the transmission case assembly. < Ref. to INSTALLATION <-- , Torque Converter Clutch Case -->.>
Insert inhibitor switch and transmission connector into stay.
Install air breather hose. < Ref. to INSTALLATION <-- , Air Breather Hose -->.>

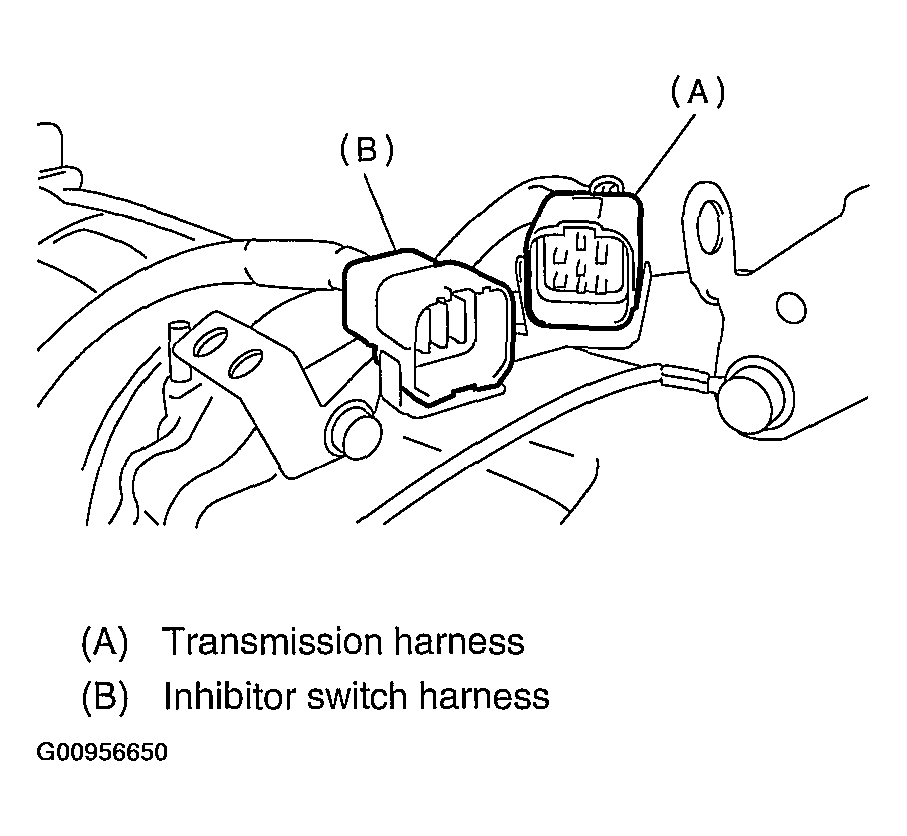

Fig 25: Inserting Inhibitor Switch And Transmission Connector Into Stay
Courtesy of SUBARU OF AMERICA, INC.
Install oil cooler pipes. < Ref. to INSTALLATION <-- , ATF Cooler Pipe and Hose -->.>
Install the oil charger pipe with O-ring. < Ref. to INSTALLATION <-- , Oil Charger Pipe -->.>
Insert the input shaft while turning lightly by hand. At this time, not to damage the bushing.
Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

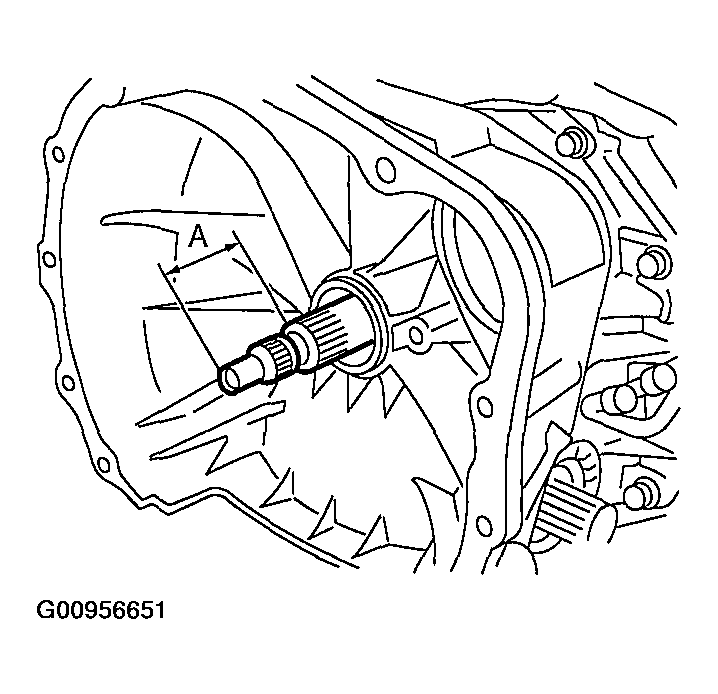

Fig 26: Installing Input Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly. < Ref. to INSTALLATION <-- , Torque Converter Clutch Assembly -->.>
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION <-- , Automatic Transmission Assembly -->.>
