Automatic Transmission - Mechanism & Function
>>
Transmission Control Module (TCM)
>>
Schematic Diagrams
>>
SOHC Models
SOHC Models

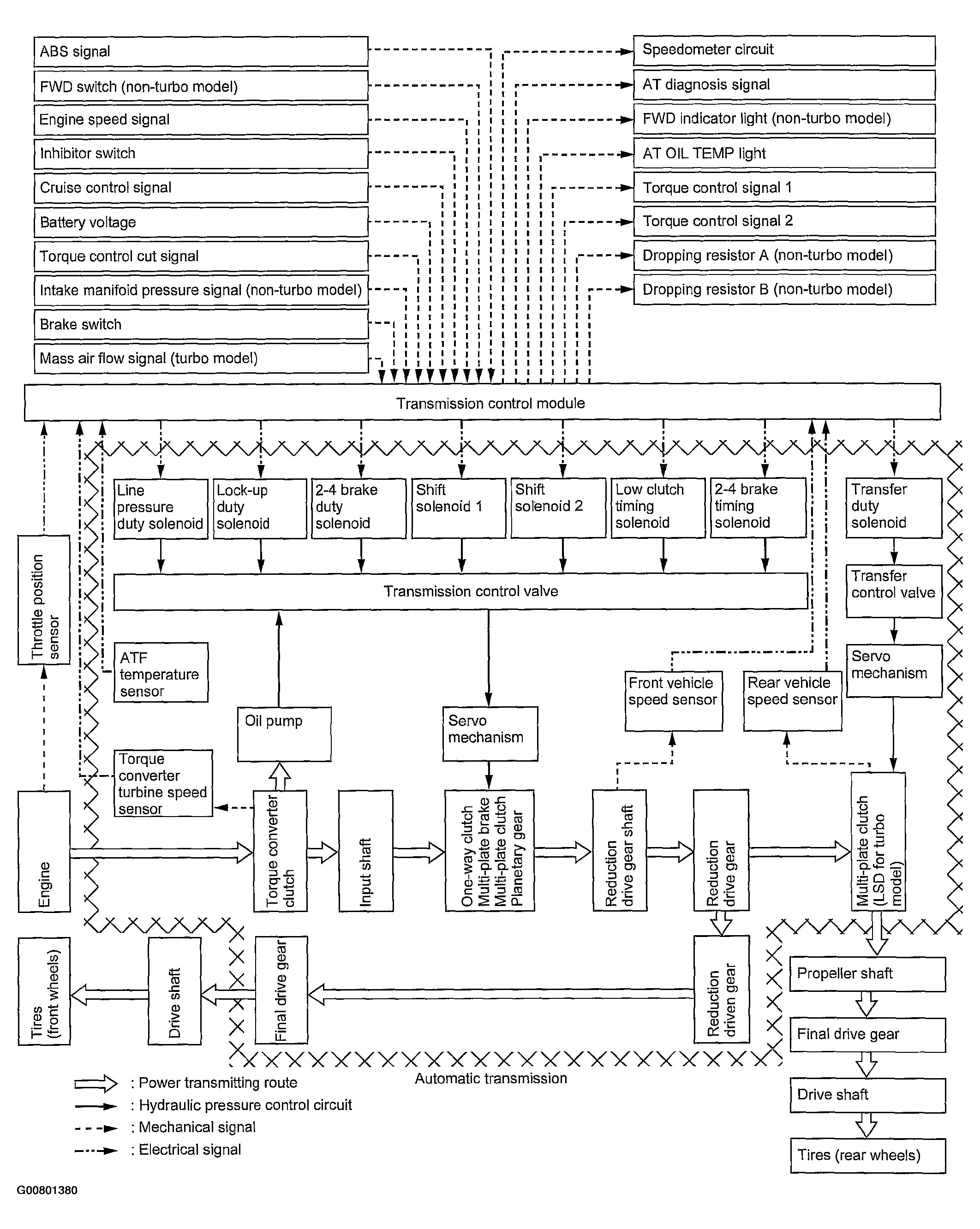

Fig 1: Identifying Schematic Diagrams (SOHC MODELS)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
