Automatic Transmission - Mechanism & Function
>>
Transmission Control Module (TCM)
>>
Control System
>>
VTD Models
VTD Models

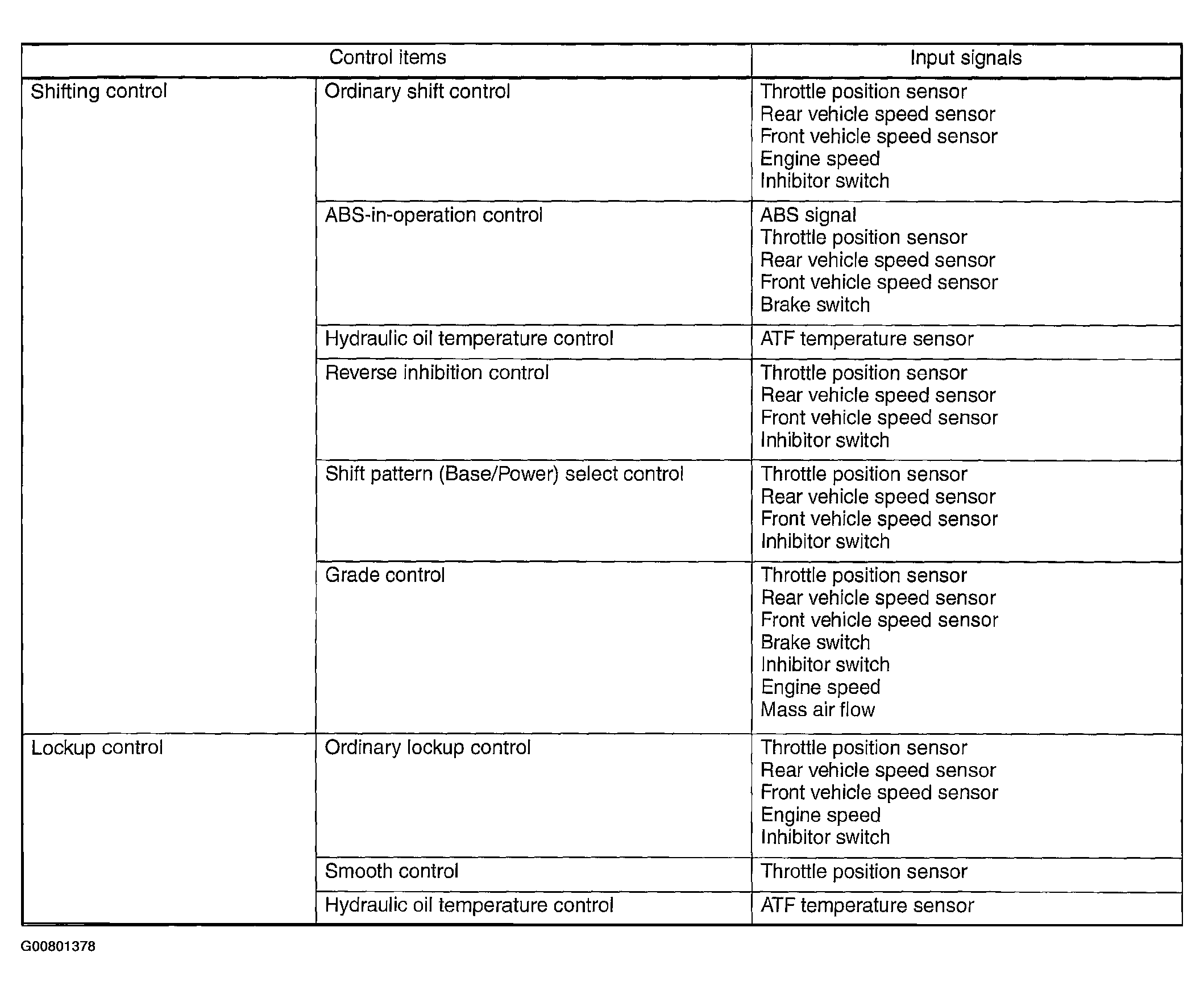

Fig 1: Identifying Control Item Specification Chart (VTD Models) (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

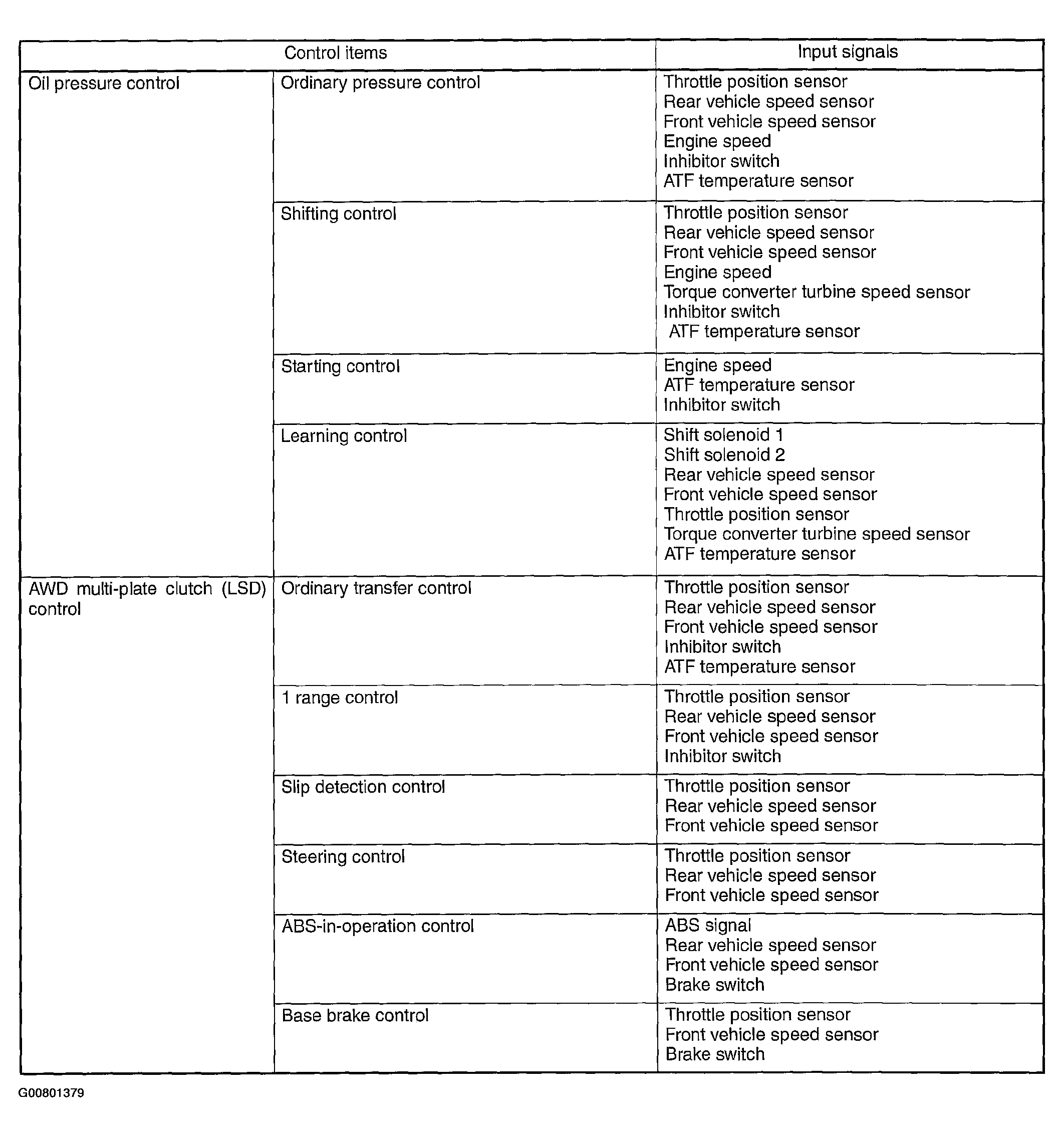

Fig 2: Identifying Control Item Specification Chart (VTD Models) (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
