Automatic Transmission - Mechanism & Function
>>
Electrohydraulic Control System
>>
Output Signals
Output Signals

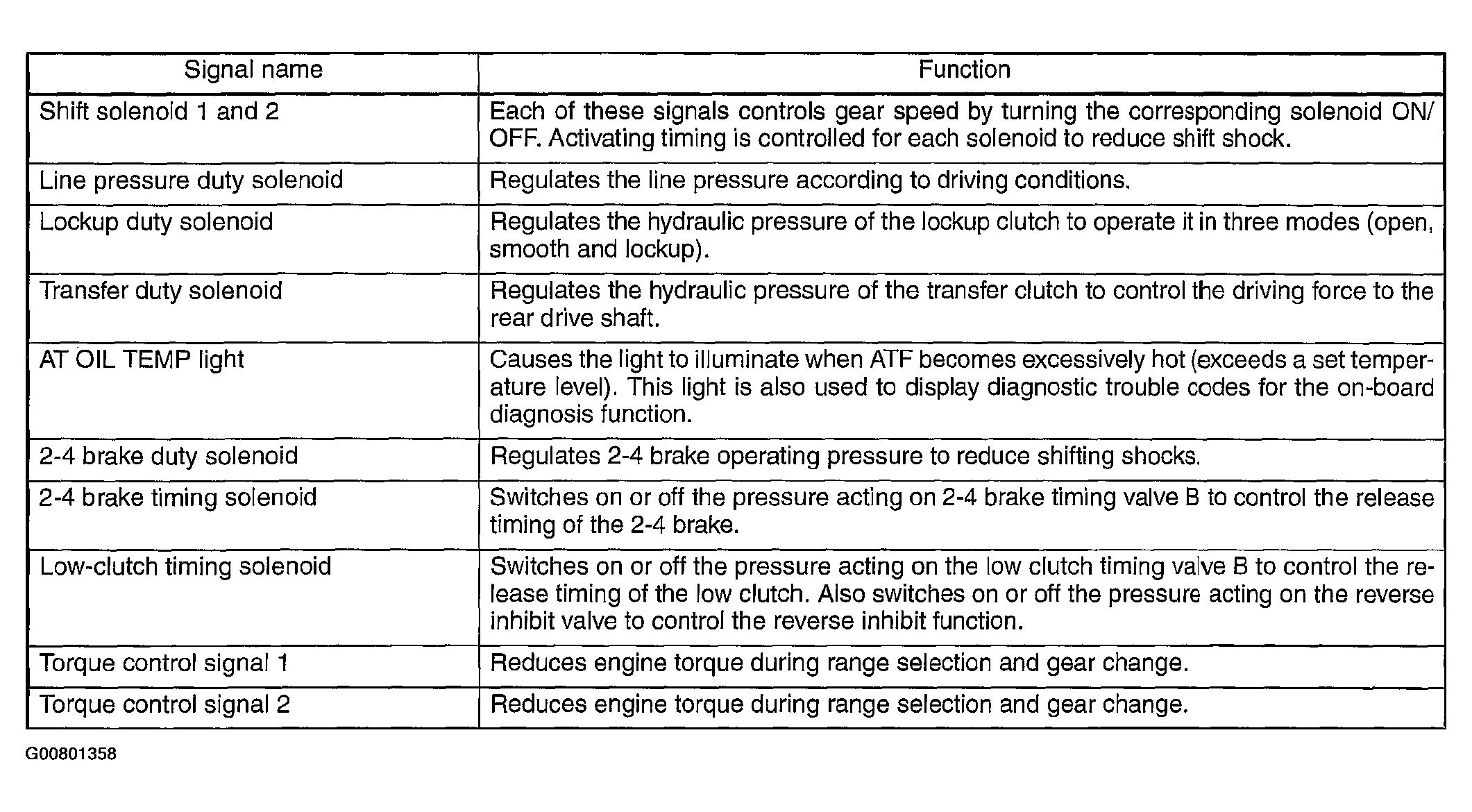

Fig 1: Output Signals Specification Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
