Electrohydraulic Control System: Description

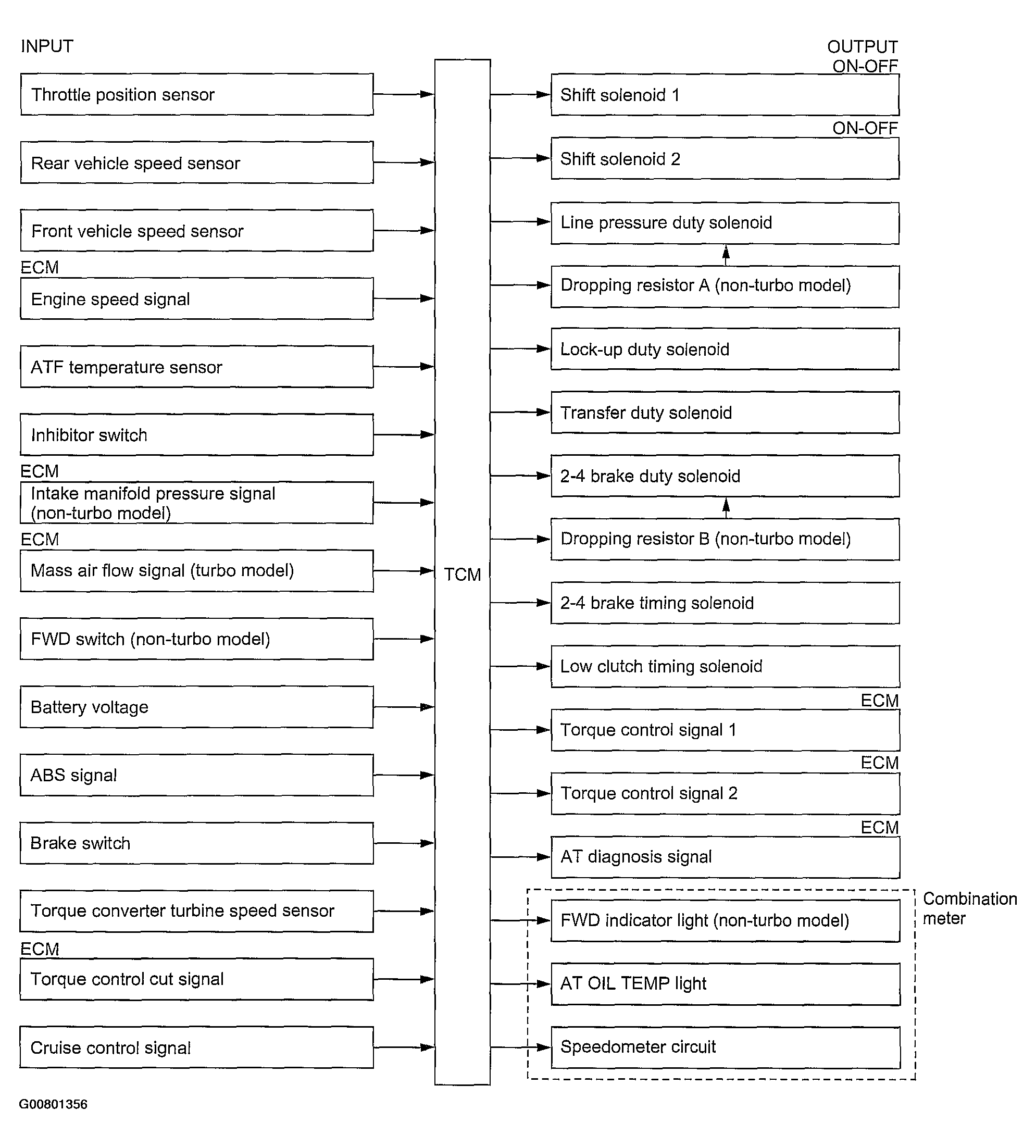

The electrohydraulic control system for the transmission and transfer consists of various sensors and switches, a transmission control module (TCM) and the hydraulic controlling units including solenoid valves. The system controls the automatic transmission operation, including gear shifting, lockup clutch operation, line pressure, automatic control pattern selection (Base and Power), and gear-shift timing. It also controls the operation of the transfer clutch. The TCM determines vehicle operating conditions from various input signals and controls a total of eight solenoids (shift solenoids 1 and 2, low clutch timing solenoid, 2-4 brake timing solenoid, line pressure duty solenoid, lockup duty solenoid, transfer duty solenoid and 2-4 brake duty solenoid) by sending appropriate signals to them.
