ATF Temperature Sensor

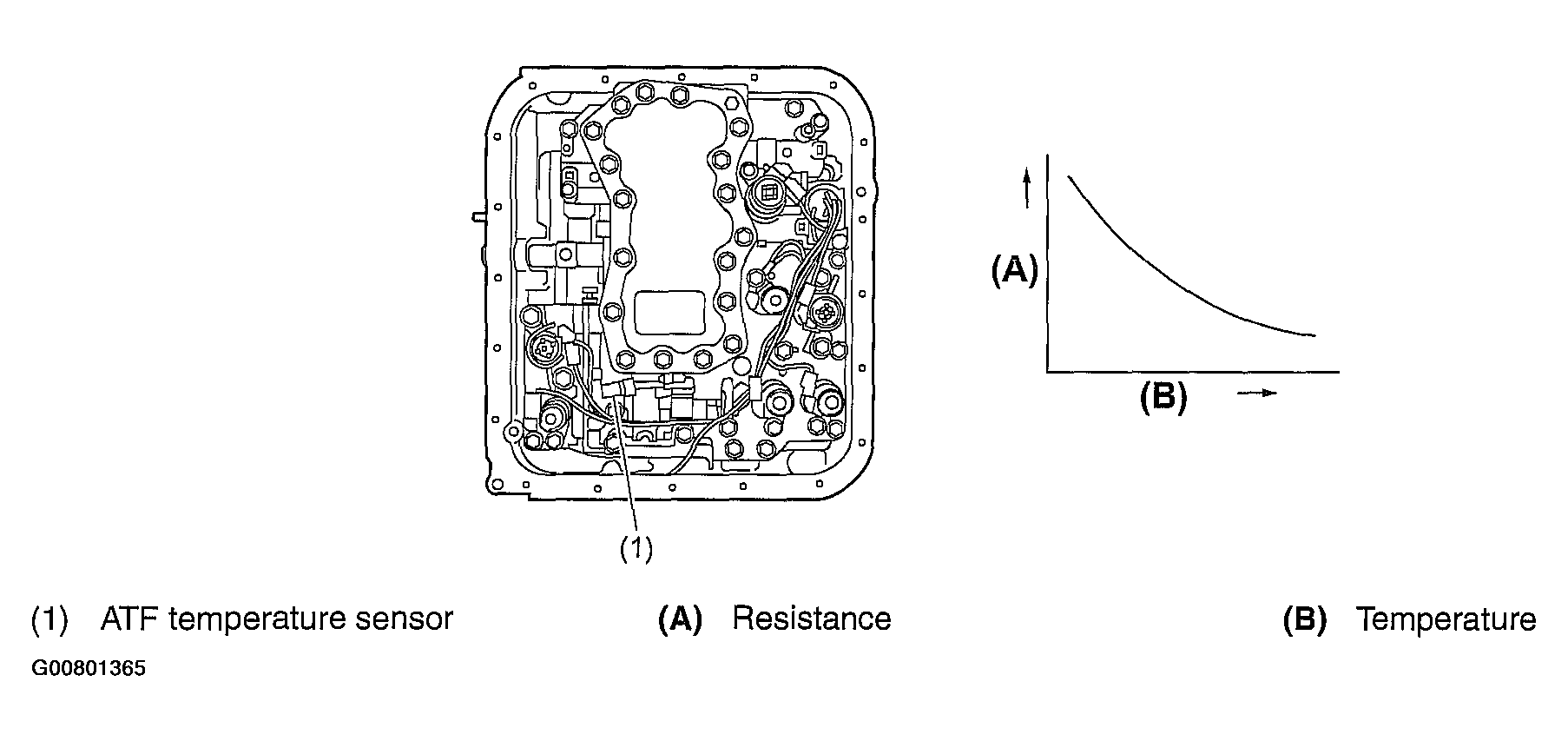

This sensor is integrated with the transmission harness and is mounted on the hydraulic control valve body of the transmission. It detects the temperature of ATF and outputs it as an electrical resistance signal. The output characteristics of the sensor are shown below.
