Variable Torque Distribution Center Differential

The front-rear torque distribution ratio is basically determined by the gear tooth ratio of center differential's compound planetary gears and varied by changing the degree of engagement of the hydraulically operated multi-plate clutch that connects the center differential output elements according to driving conditions and road surface conditions.

1. When the front wheel speed is higher than the rear wheel speed:

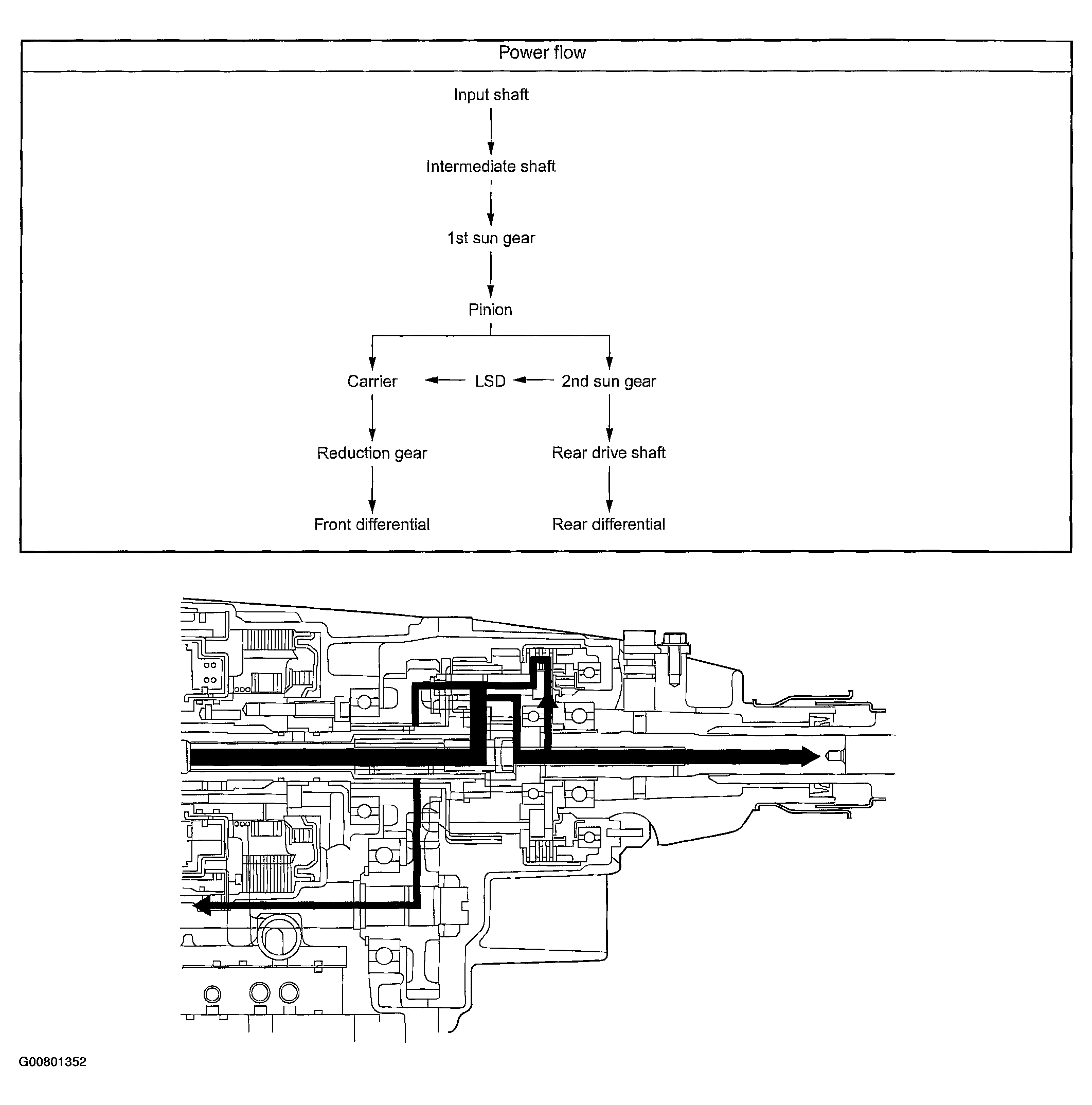

   Fig 1: Identifying Variable Torque Distribution Center Differential (When Front Wheel Speed Is Higher Than Rear Wheel Speed)

   Courtesy of SUBARU OF AMERICA, INC.
2. When the rear wheel speed is higher than the front wheel speed:

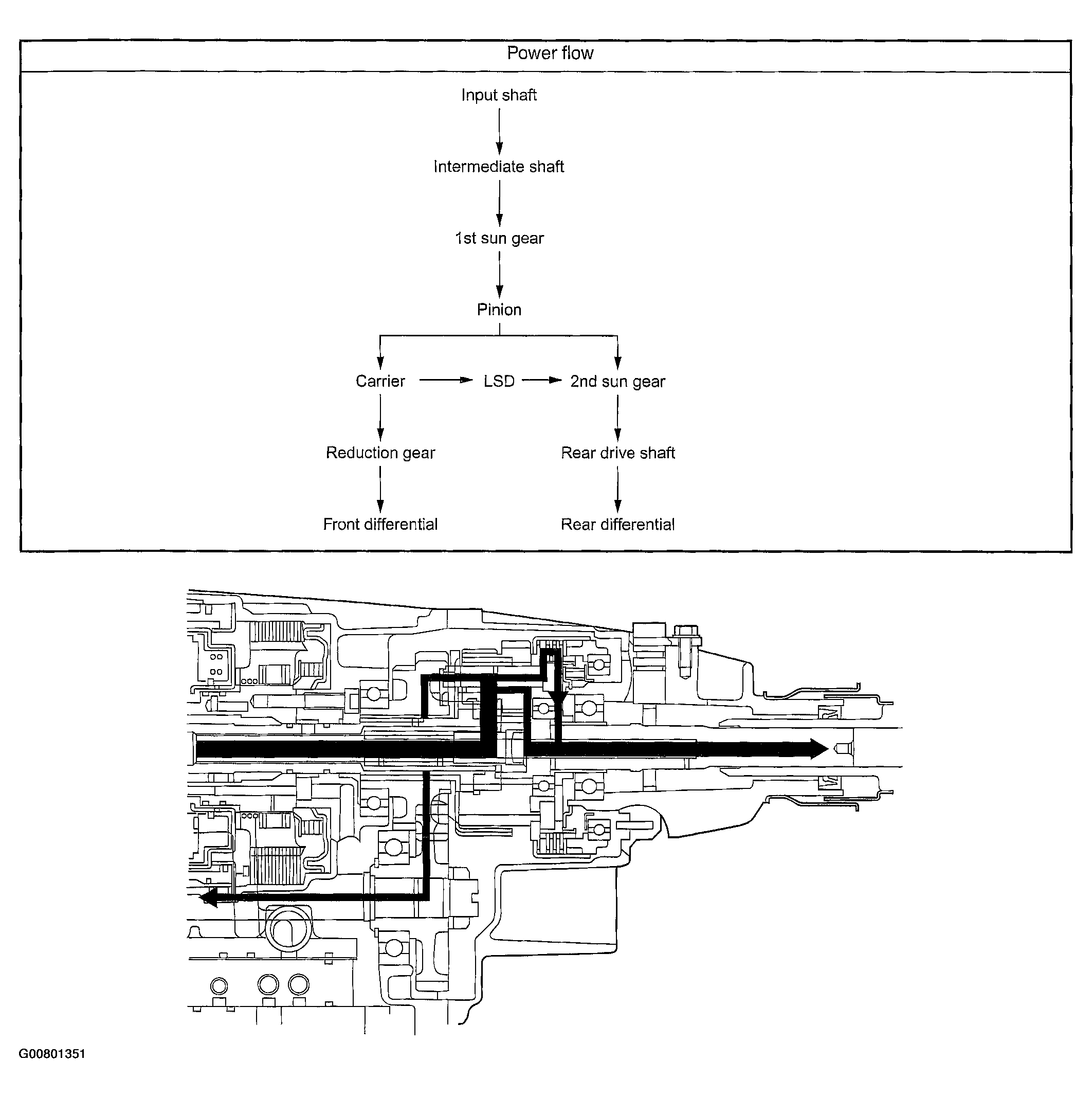

   Fig 2: Identifying Variable Torque Distribution Center Differential (When Rear Wheel Speed Is Higher Than Front Wheel Speed)

   Courtesy of SUBARU OF AMERICA, INC.
