Inspection Mode: Operation: Notes

Carry out trouble diagnosis shown in the following DTC table.

When performing trouble diagnosis which is not shown in the DTC table, refer to the next item Drive cycle.

< Ref. to DRIVE CYCLE . >

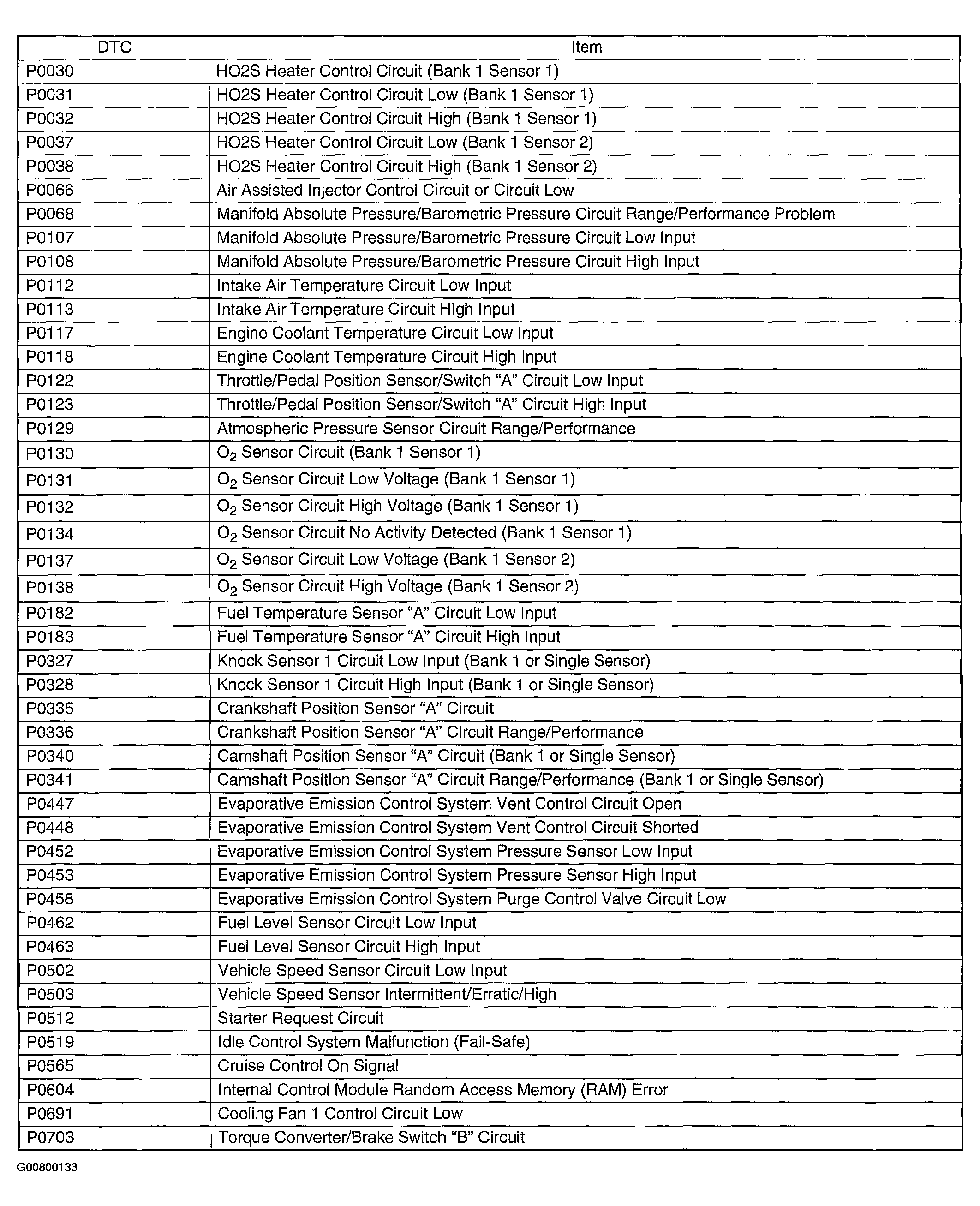

Fig 1: Inspection Mode - Diagnostic Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

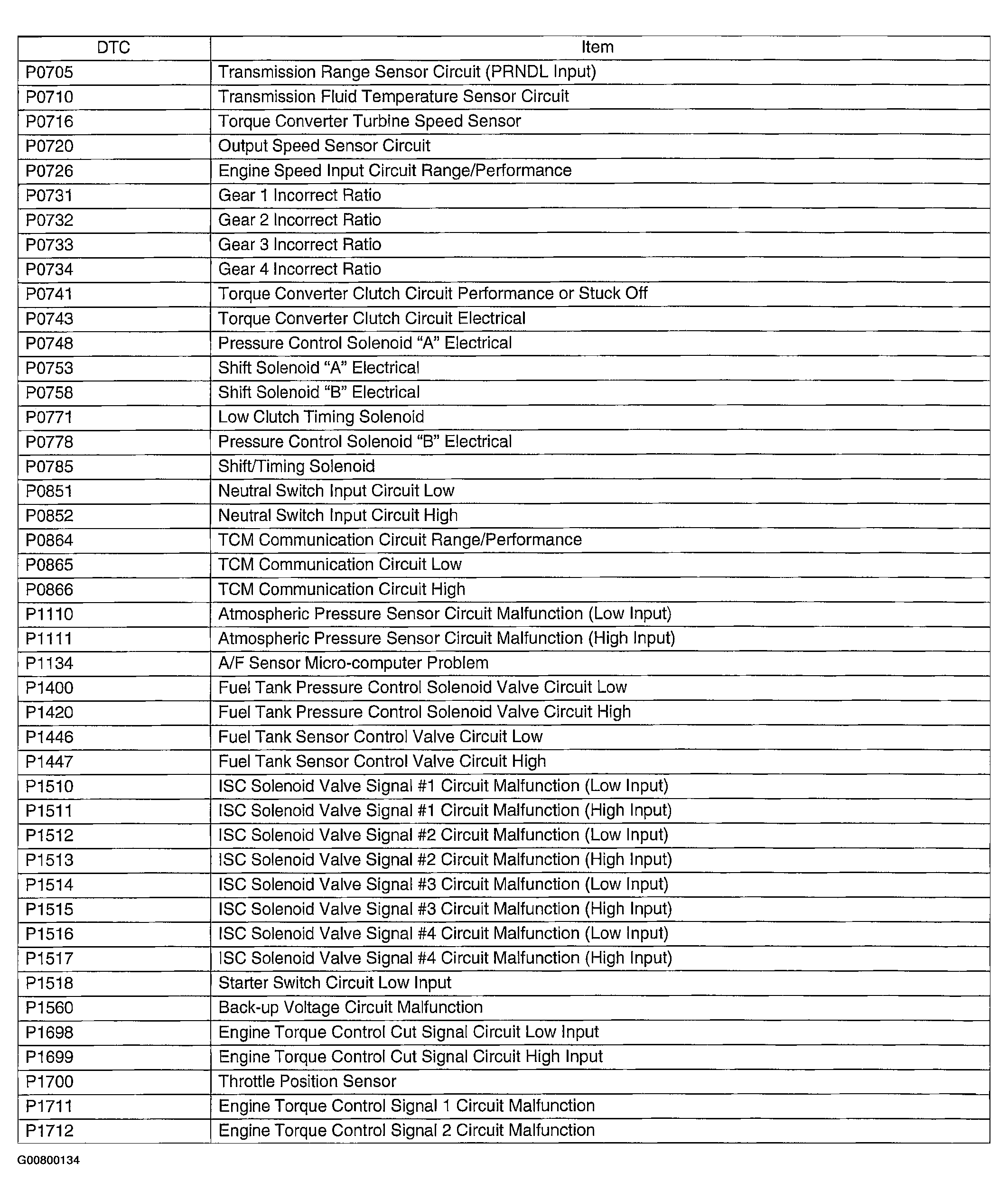

Fig 2: Inspection Mode - Diagnostic Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
