Impreza RS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine (Diagnostics) (H4SO)
>>
Engine Control Module (ECM) I/O Signal
>>
Electrical Specification
Electrical Specification

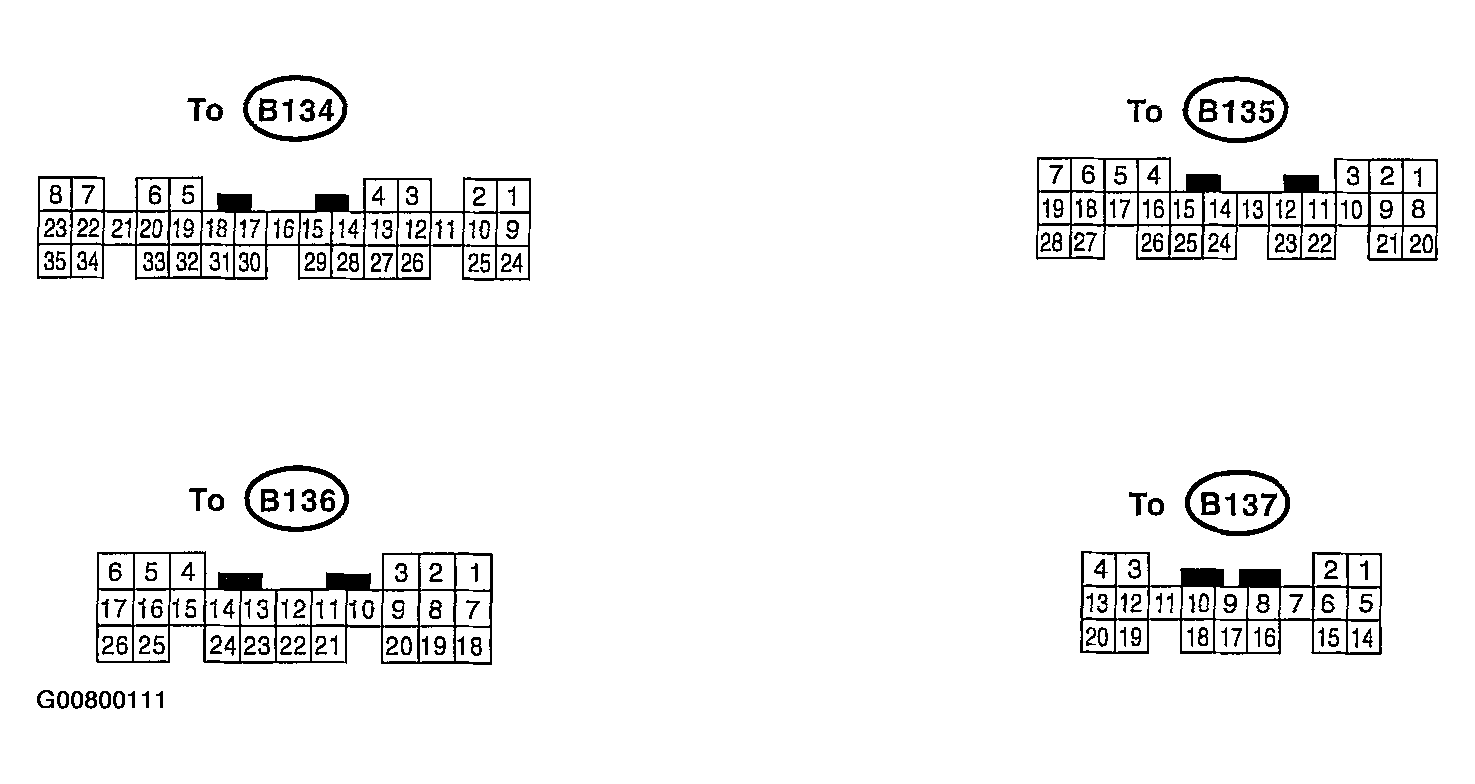

Fig 1: Engine Control Module (ECM) Harness Connector Views
Courtesy of SUBARU OF AMERICA, INC.

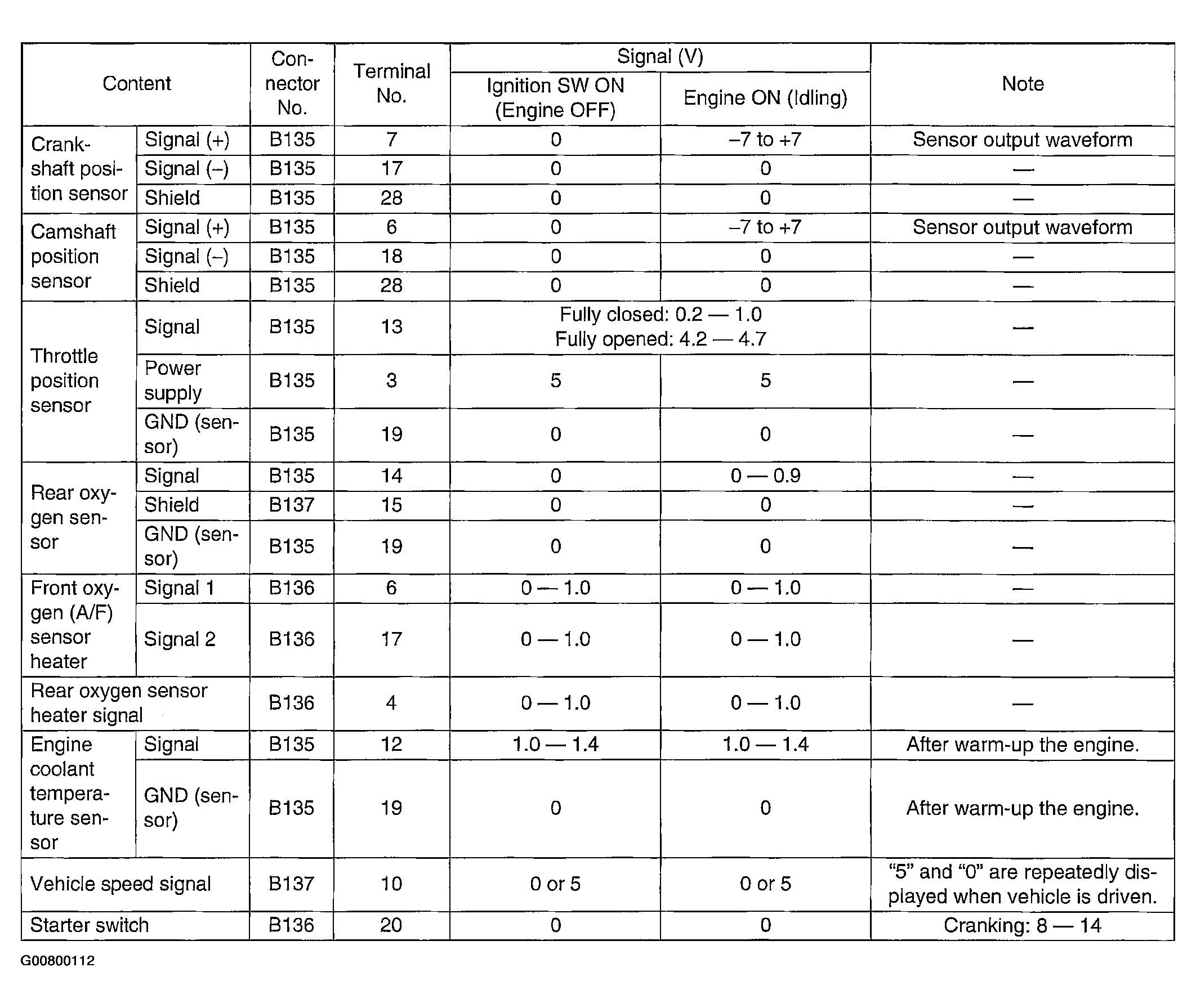

Fig 2: Engine Control Module (ECM) I/O Signal Electrical Specifications Chart (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

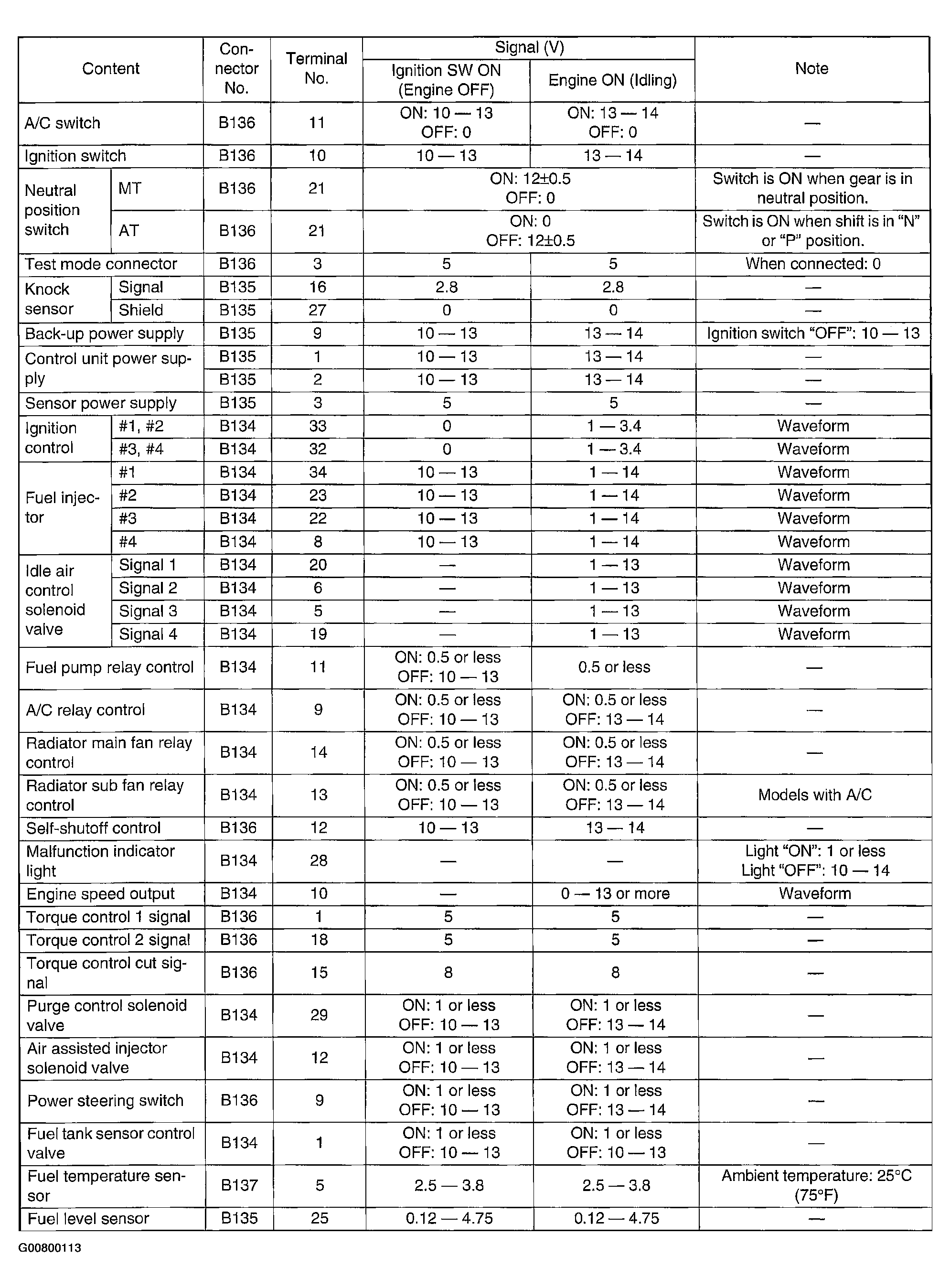

Fig 3: Engine Control Module (ECM) I/O Signal Electrical Specifications Chart (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

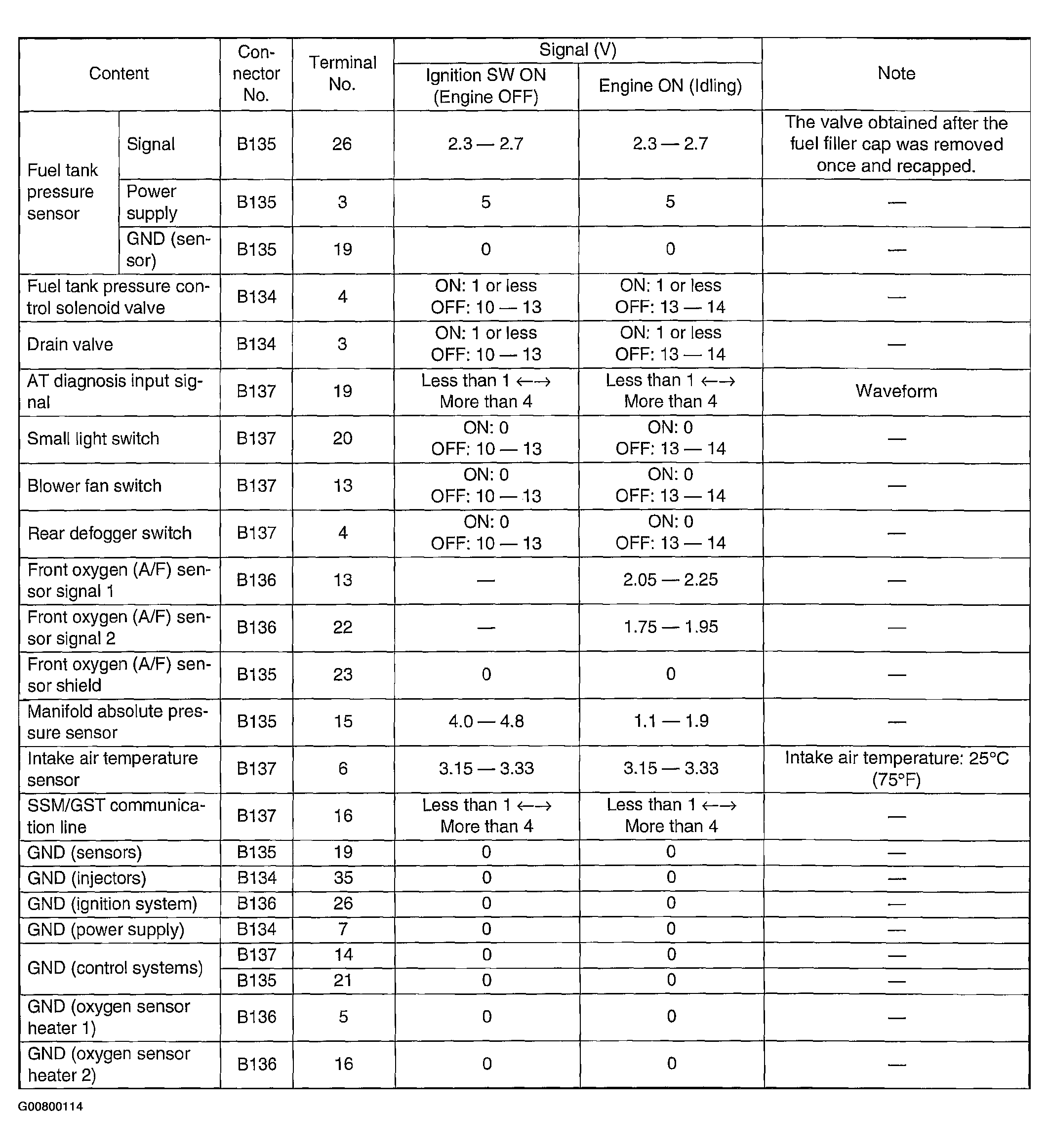

Fig 4: Engine Control Module (ECM) I/O Signal Electrical Specifications Chart (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
