Electrical Components Location: Location: Engine

MODULE

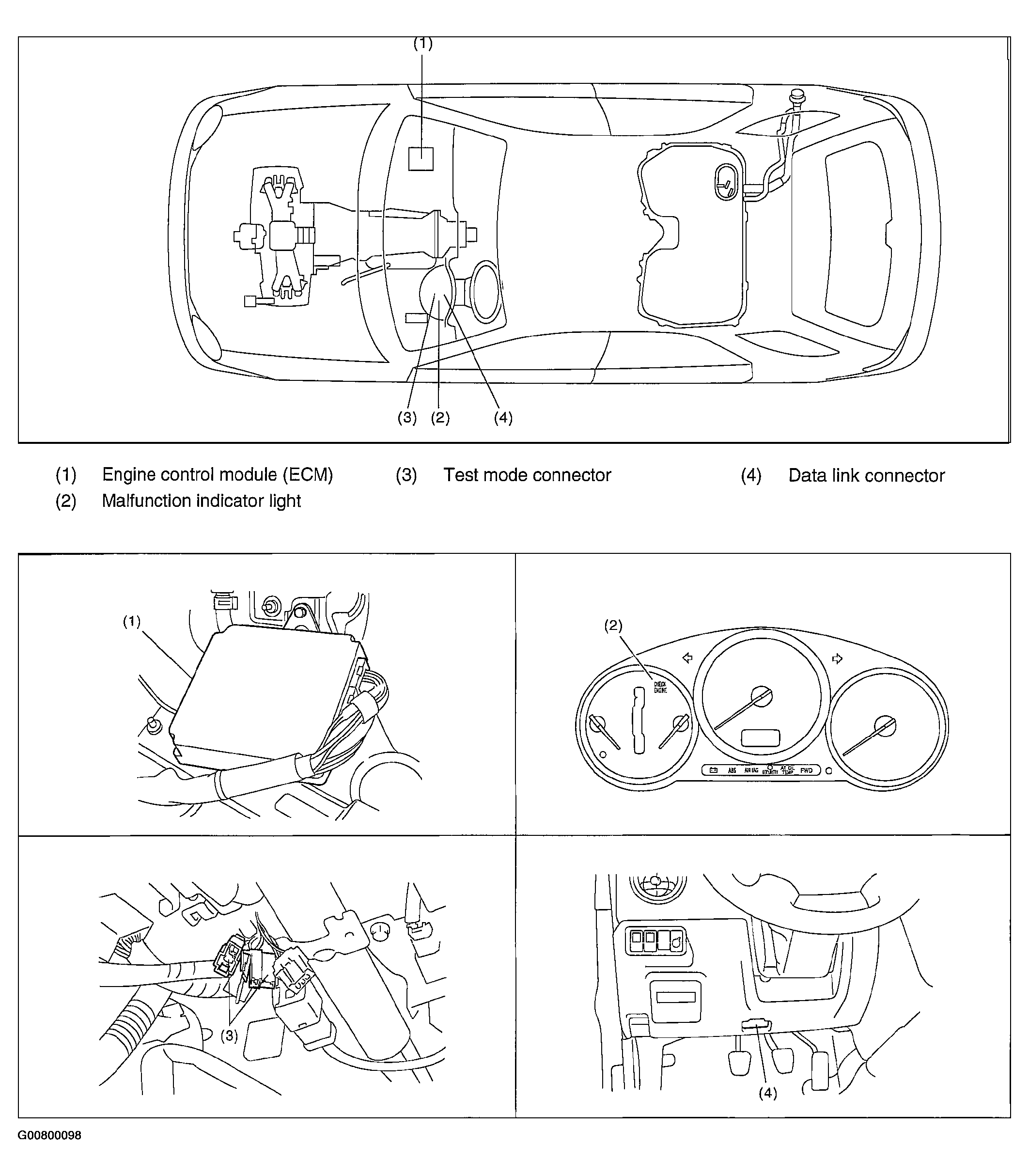

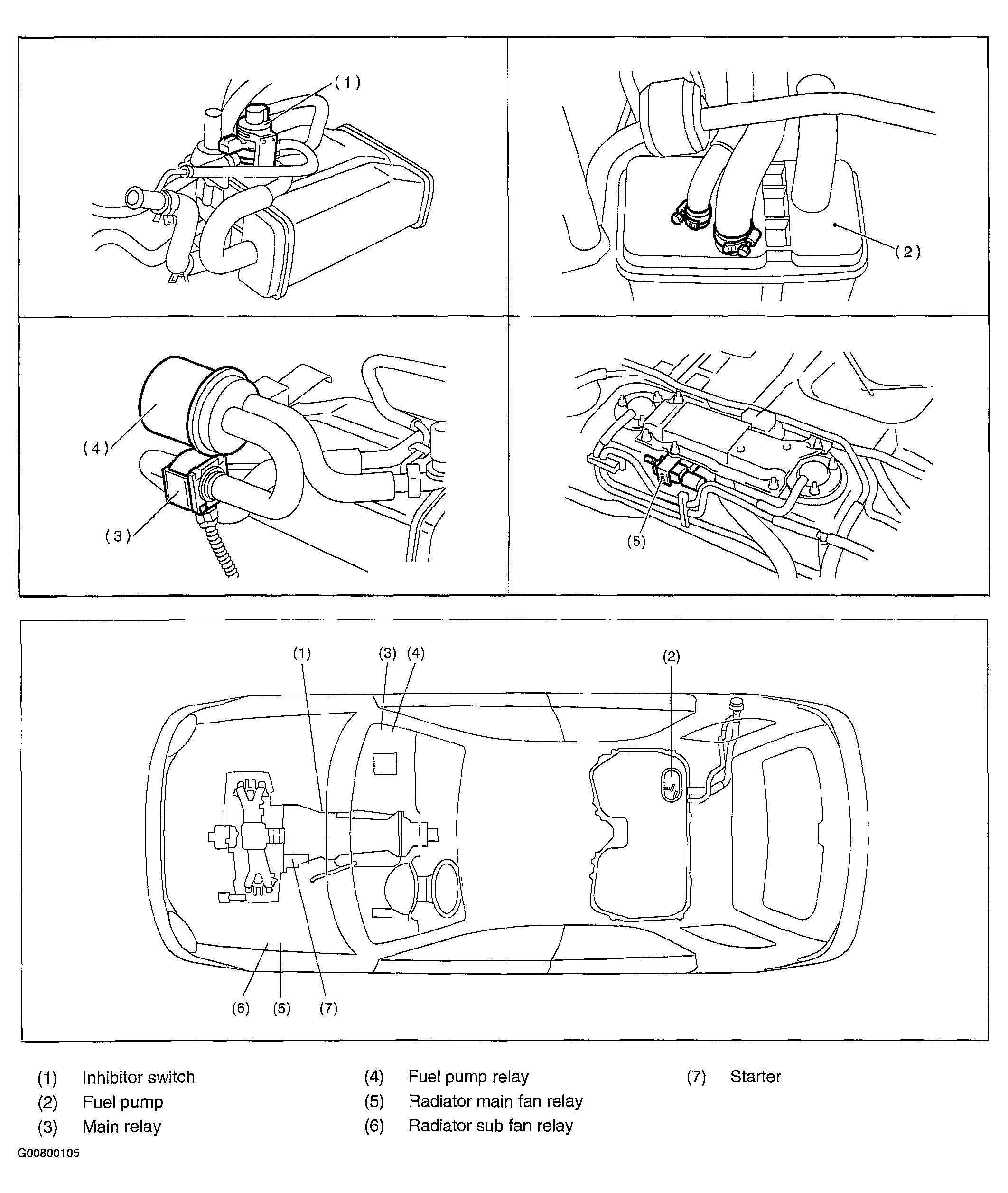

Fig 1: Identifying Location Of Engine Module Electrical Components
Courtesy of SUBARU OF AMERICA, INC.
SENSOR

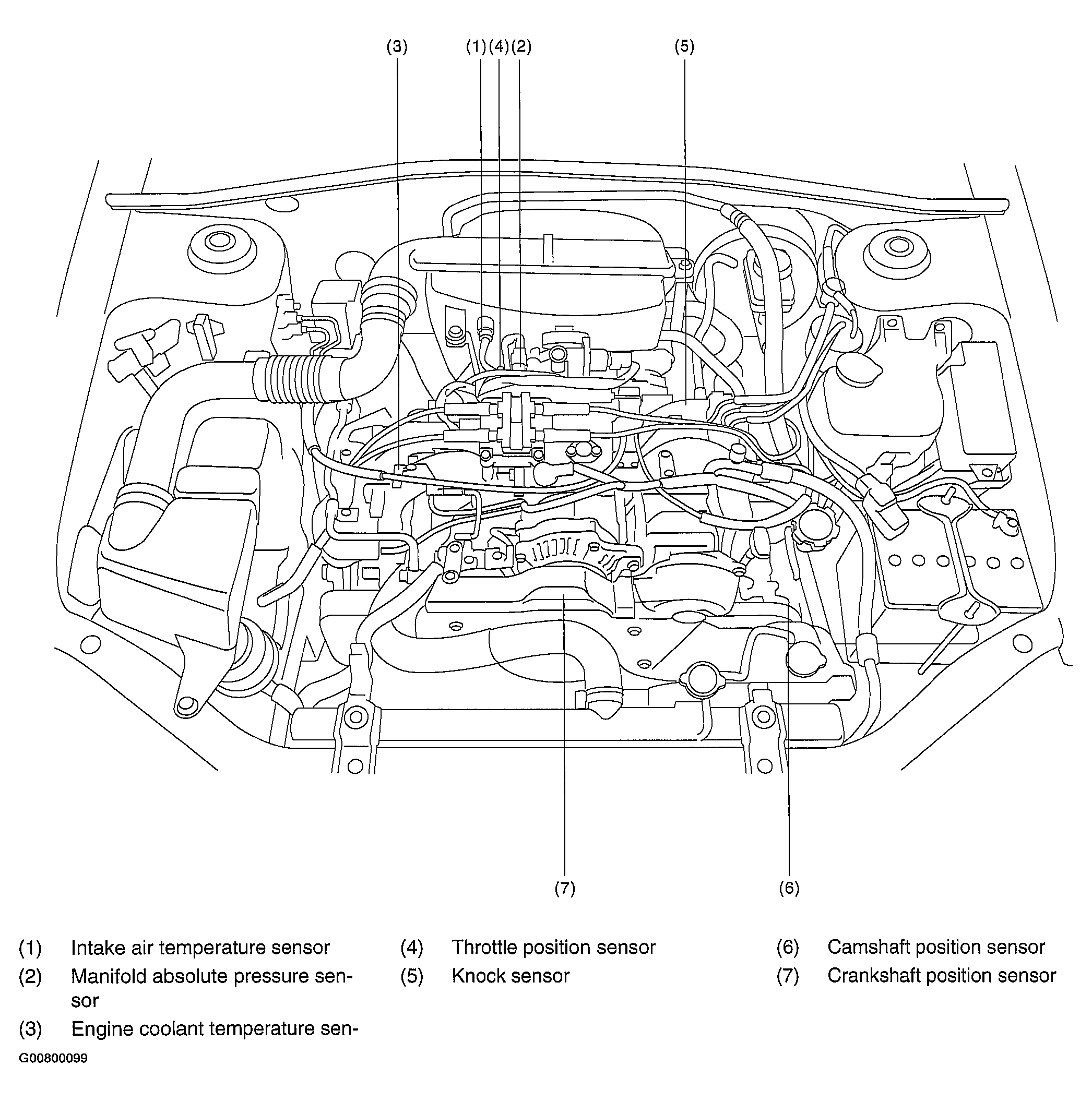

Fig 2: Identifying Location Of Sensors Components (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

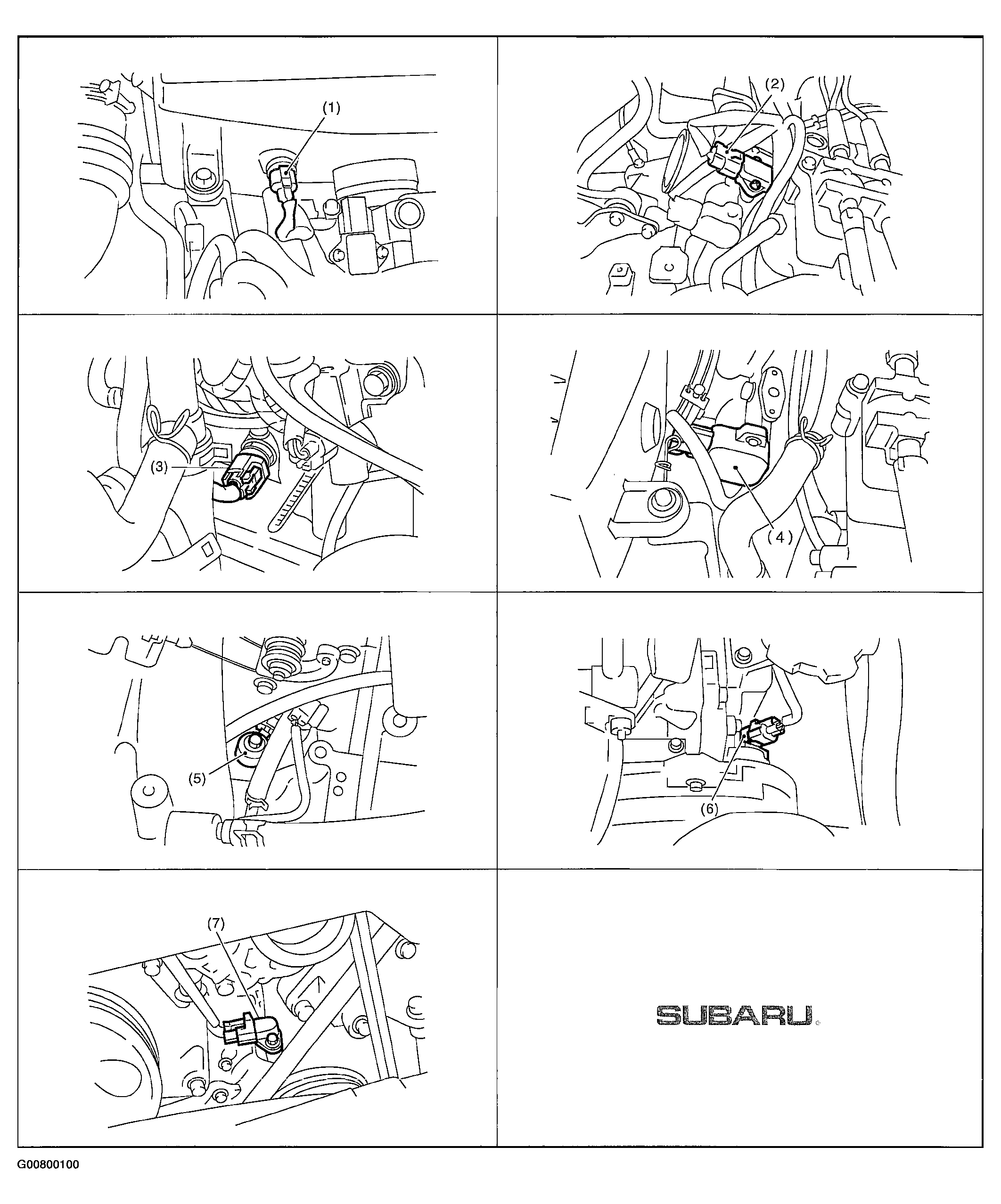

Fig 3: Identifying Location Of Sensors Components (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

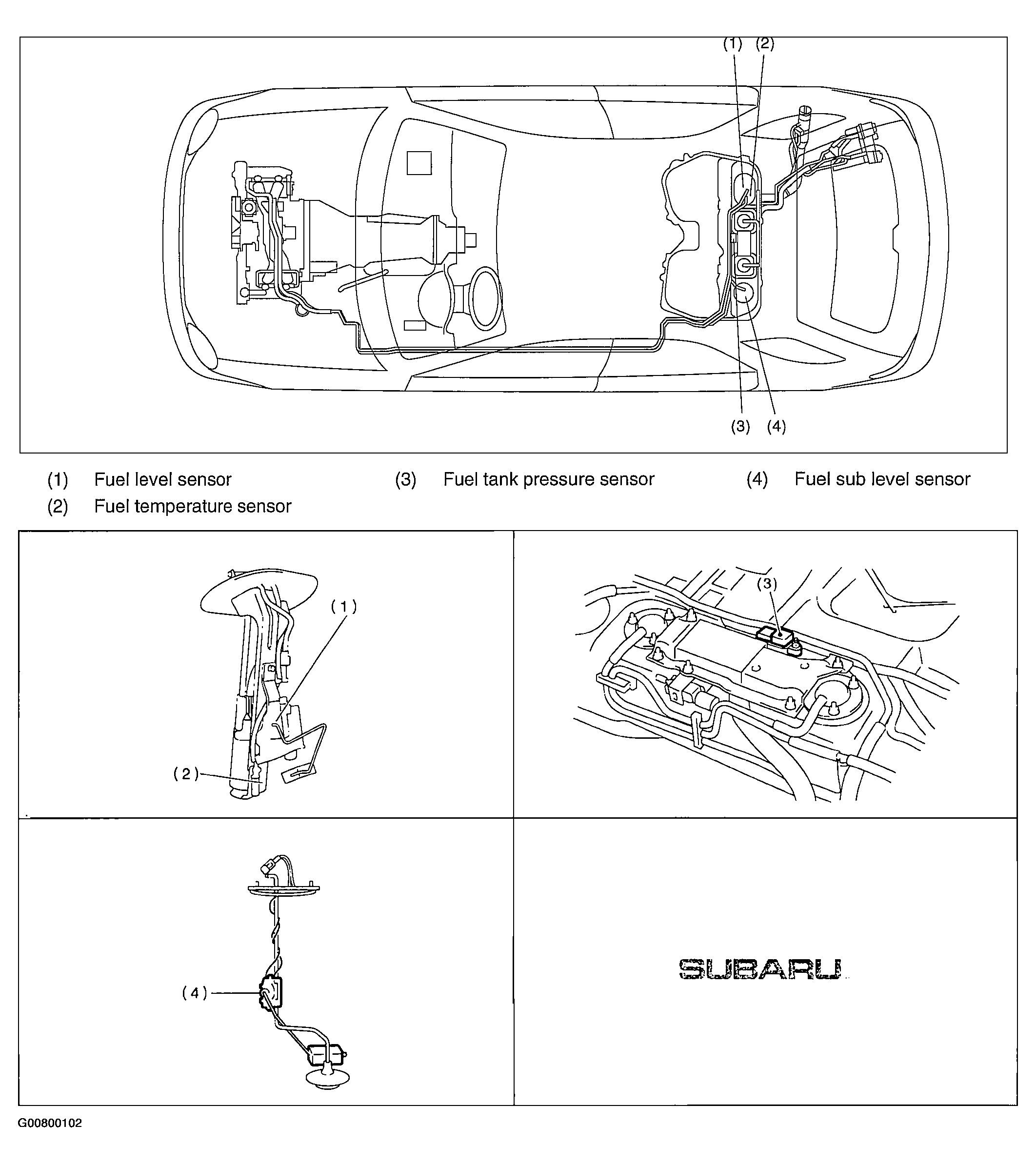

Fig 4: Identifying Location Of Sensors Components (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

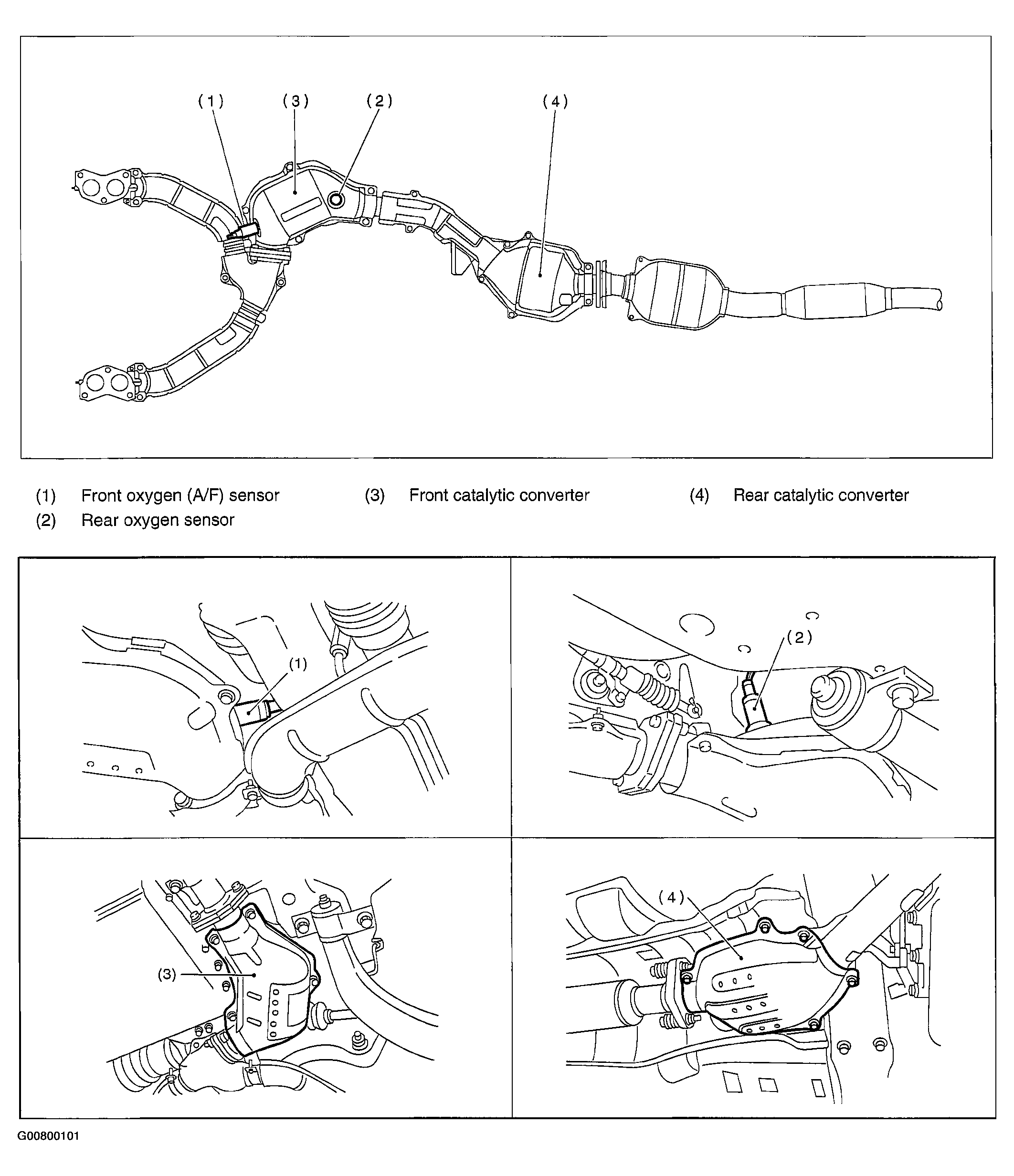

Fig 5: Identifying Location Of Sensors Components (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS

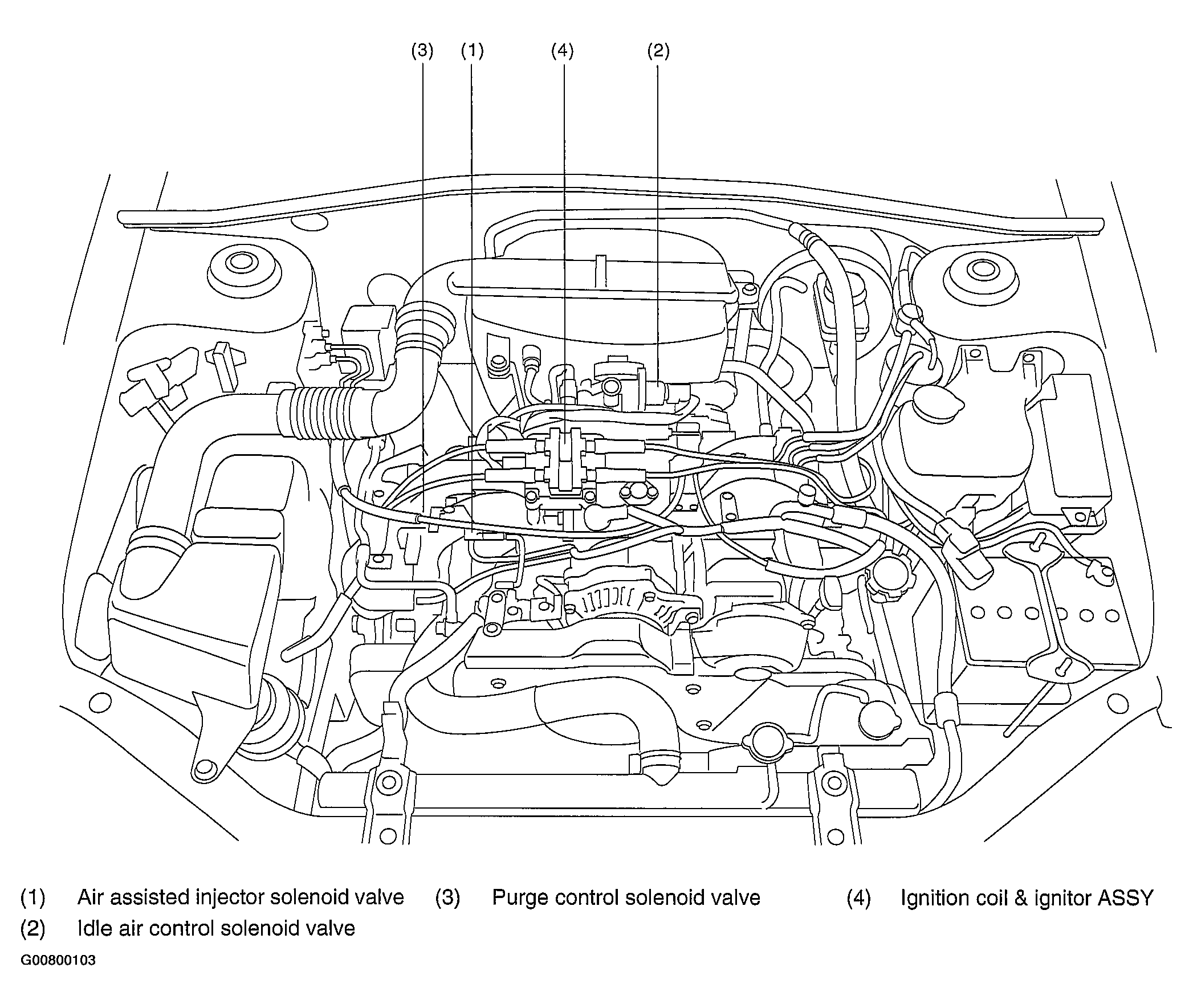

Fig 6: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Components (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

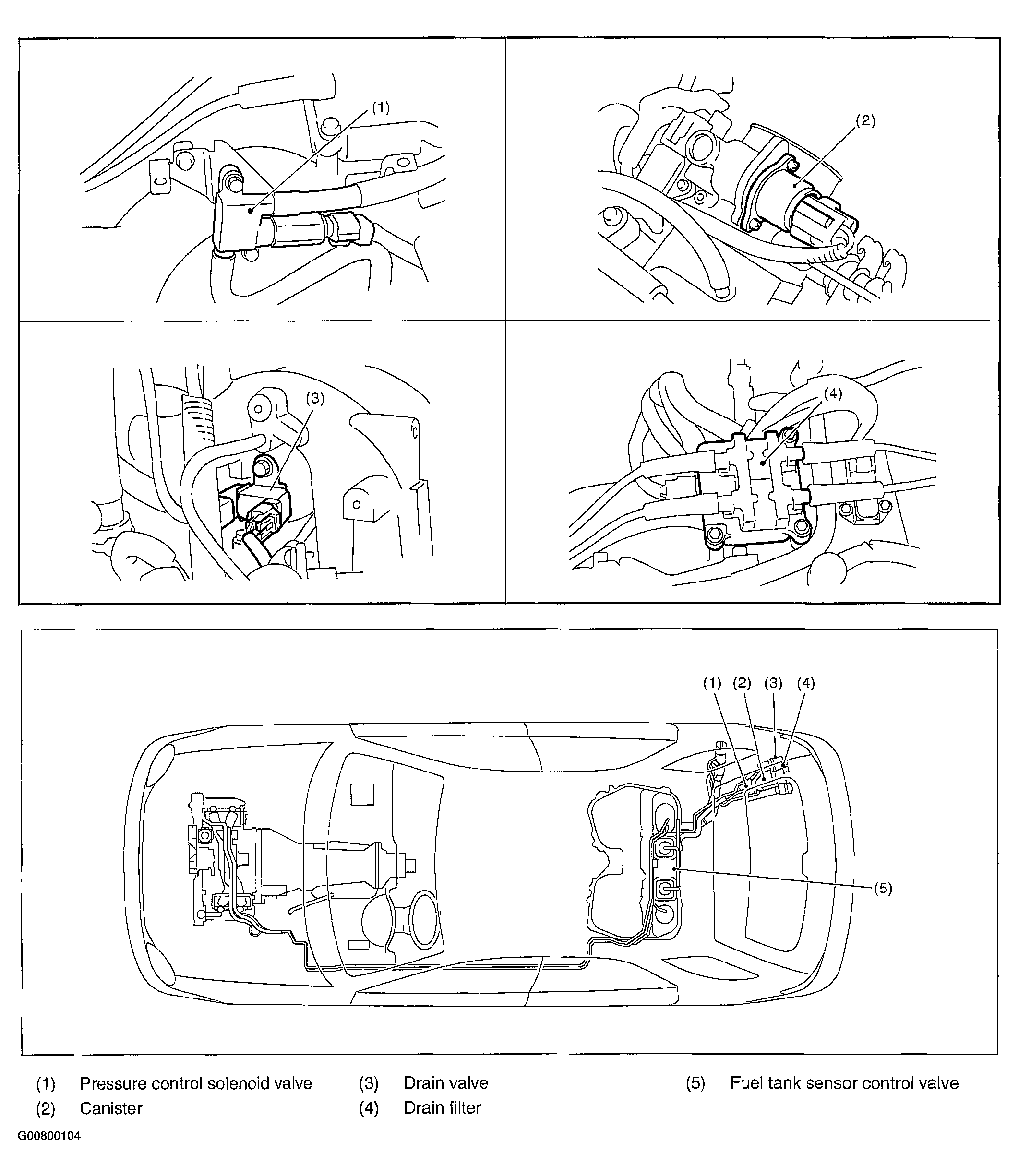

Fig 7: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Components (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

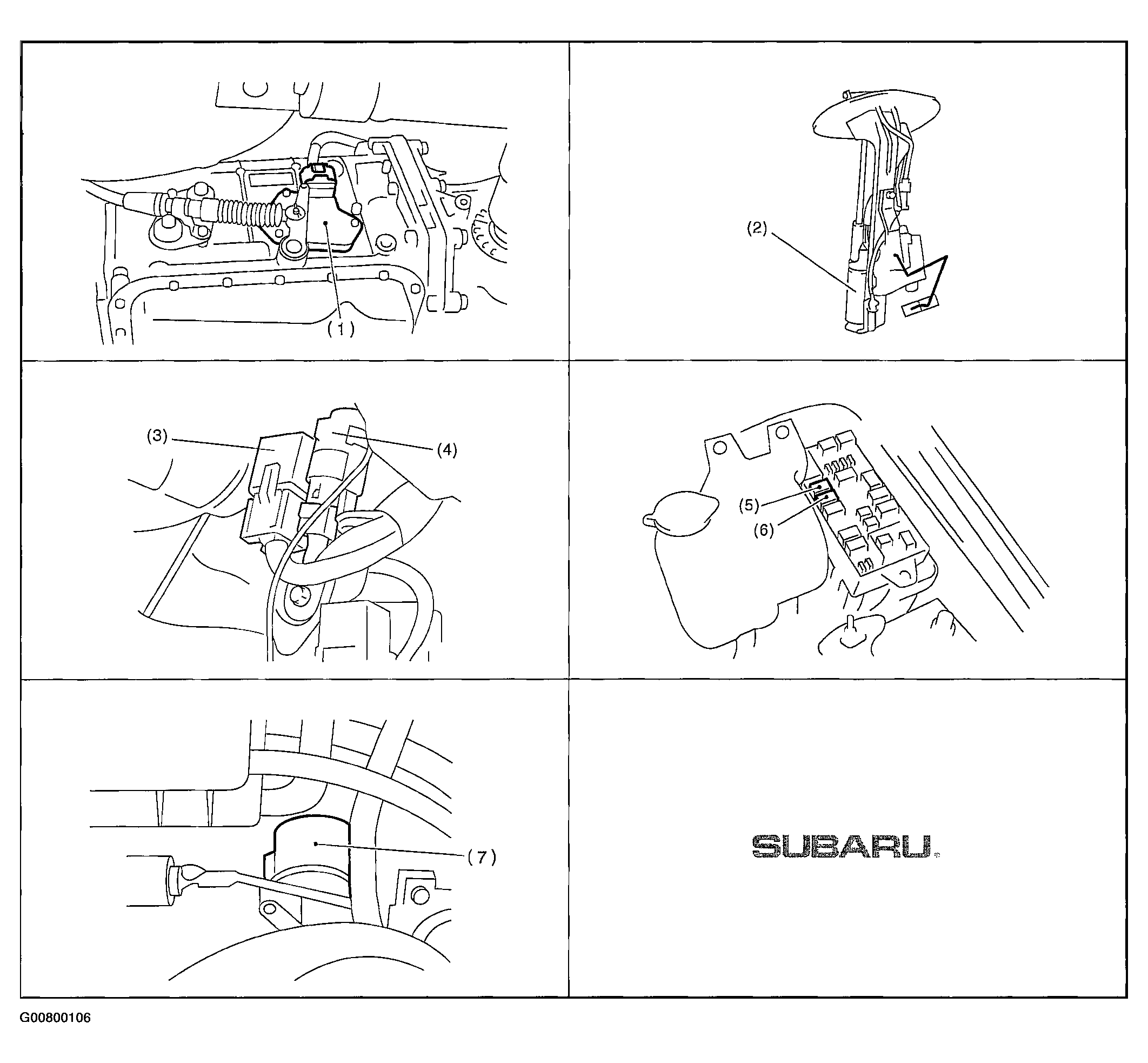

Fig 8: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Components (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Components (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
