Compulsory Valve Operation Check Mode: Operation

  1. Prepare the Subaru Select Monitor kit. < Ref. to PREPARATION TOOL .>

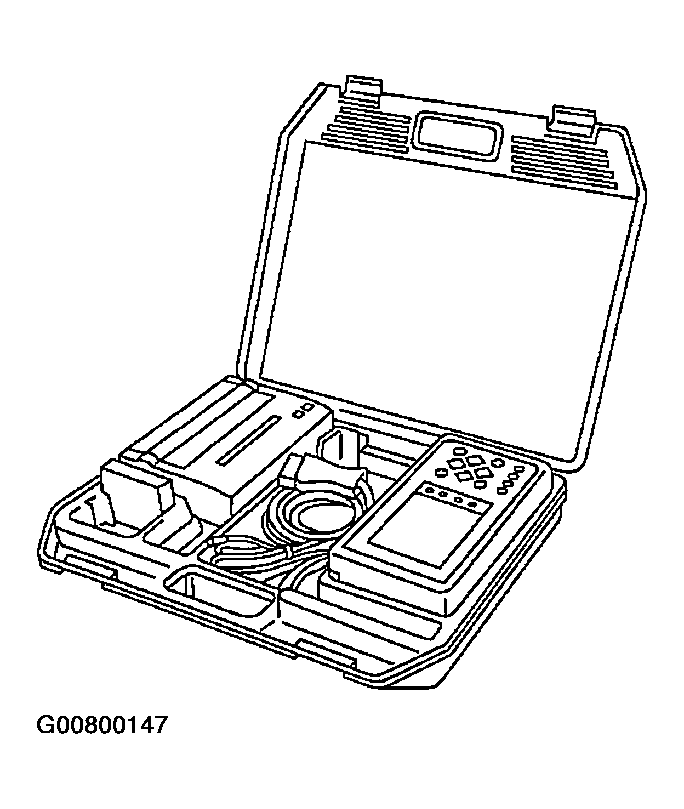

    Fig 1: Identifying Subaru Select Monitor Kit
    G00800147Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the diagnosis cable to Subaru Select Monitor.
  3. Insert the cartridge into Subaru Select Monitor. < Ref. to PREPARATION TOOL  . >
    Fig 2: Inserting Cartridge Into Subaru Select Monitor
    G00800148Courtesy of SUBARU OF AMERICA, INC.

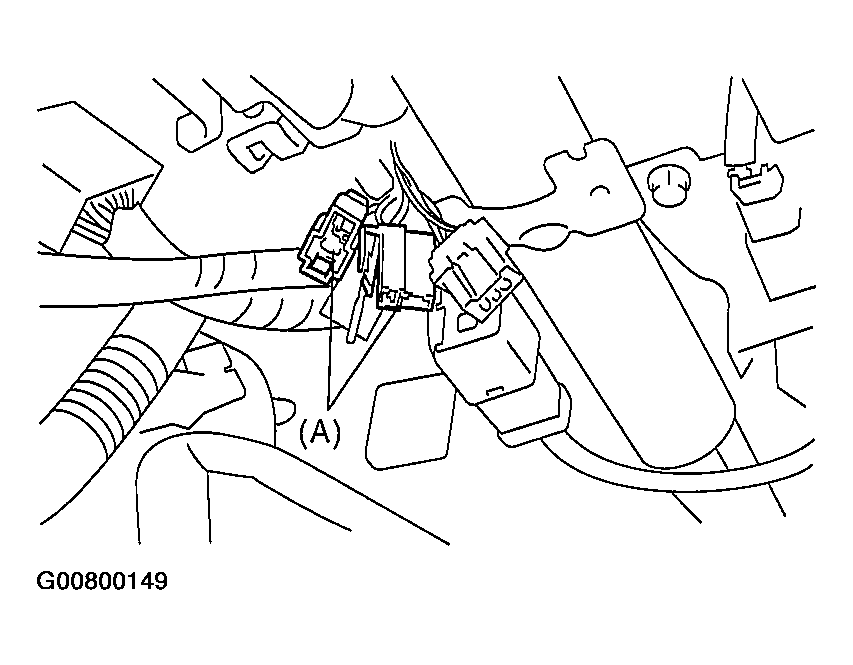

  4. Connect the test mode connector (A) at the lower portion of instrument panel (on driver's side).
    Fig 3: Connecting Test Mode Connector At Lower Portion Of Instrument Panel (On Driver'S Side)
    G00800149Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the Subaru Select Monitor to data link connector.
    1. Data link connector is located in the lower portion of instrument panel (on driver's side).
      Fig 4: Identifying Data Link Connector
      G00800150Courtesy of SUBARU OF AMERICA, INC.
    2. Connect the diagnosis cable to data link connector.
    CAUTION: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.
  6. Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
    Fig 5: Identifying Power Switch
    G00800151Courtesy of SUBARU OF AMERICA, INC.
  7. On << Main Menu >> display screen, select the {2.Each System Check} and press the [YES] key.
  8. On << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
  9. Press the [YES] key after the information of engine type is displayed.
  10. On <<Engine Diagnosis >> display screen, select the {System Operation Check Mode} and press the [YES] key.
  11. On << System Operation Check Mode >> display screen, select the {Actuator ON/OFF Operation} and press the [YES] key.

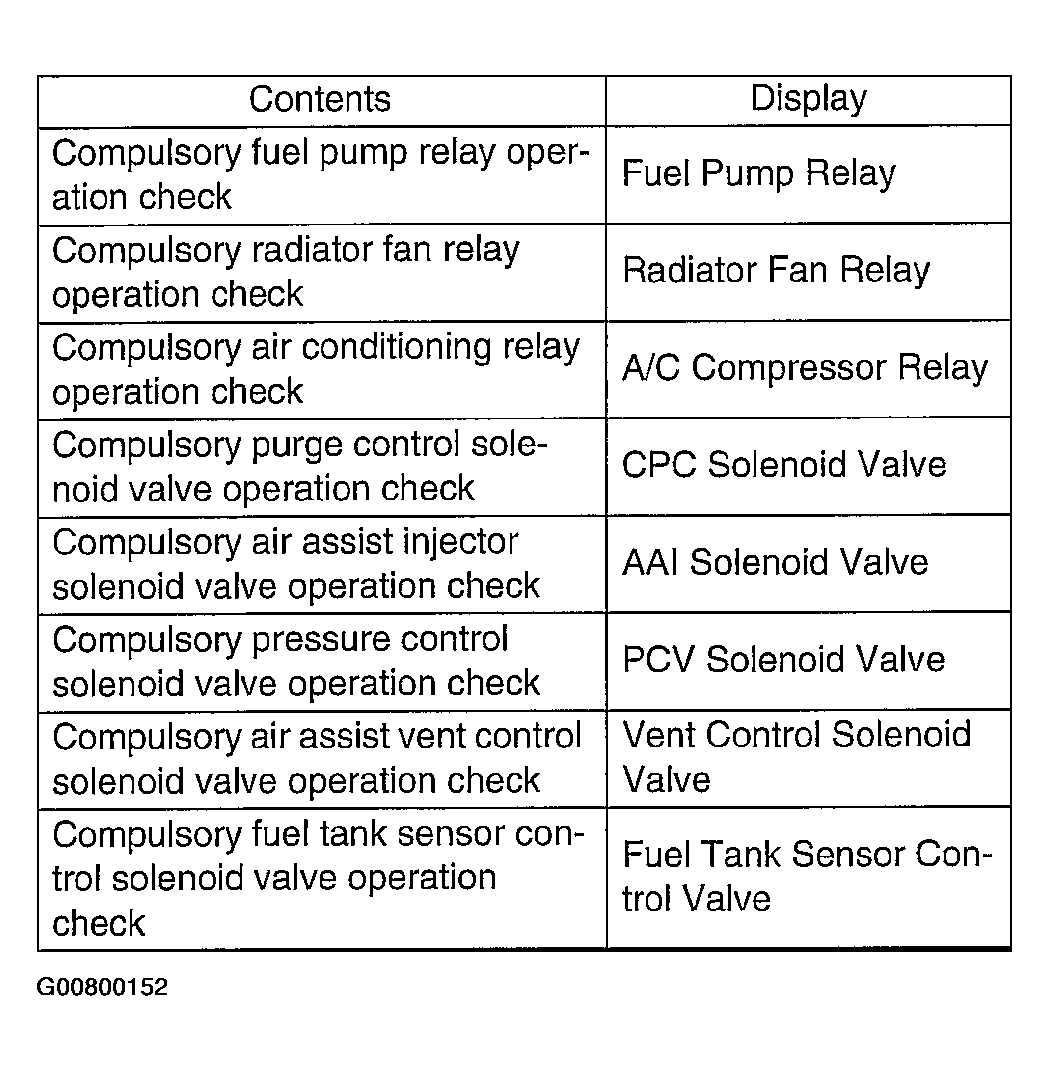

  12. Select the desired compulsory actuator on the << Actuator ON/OFF Operation >> display screen and press the [YES] key.
  13. Pressing the [NO] key completes the compulsory operation check mode. The display will then return to the << Actuator ON/OFF Operation >> screen.
NOTE:
  • The following parts will be displayed but not functional because they are not installed on vehicle.
    Fig 7: Parts Display Chart
    G00800153Courtesy of SUBARU OF AMERICA, INC.
  • For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
