Basic Diagnostic Procedure: Procedure: Engine

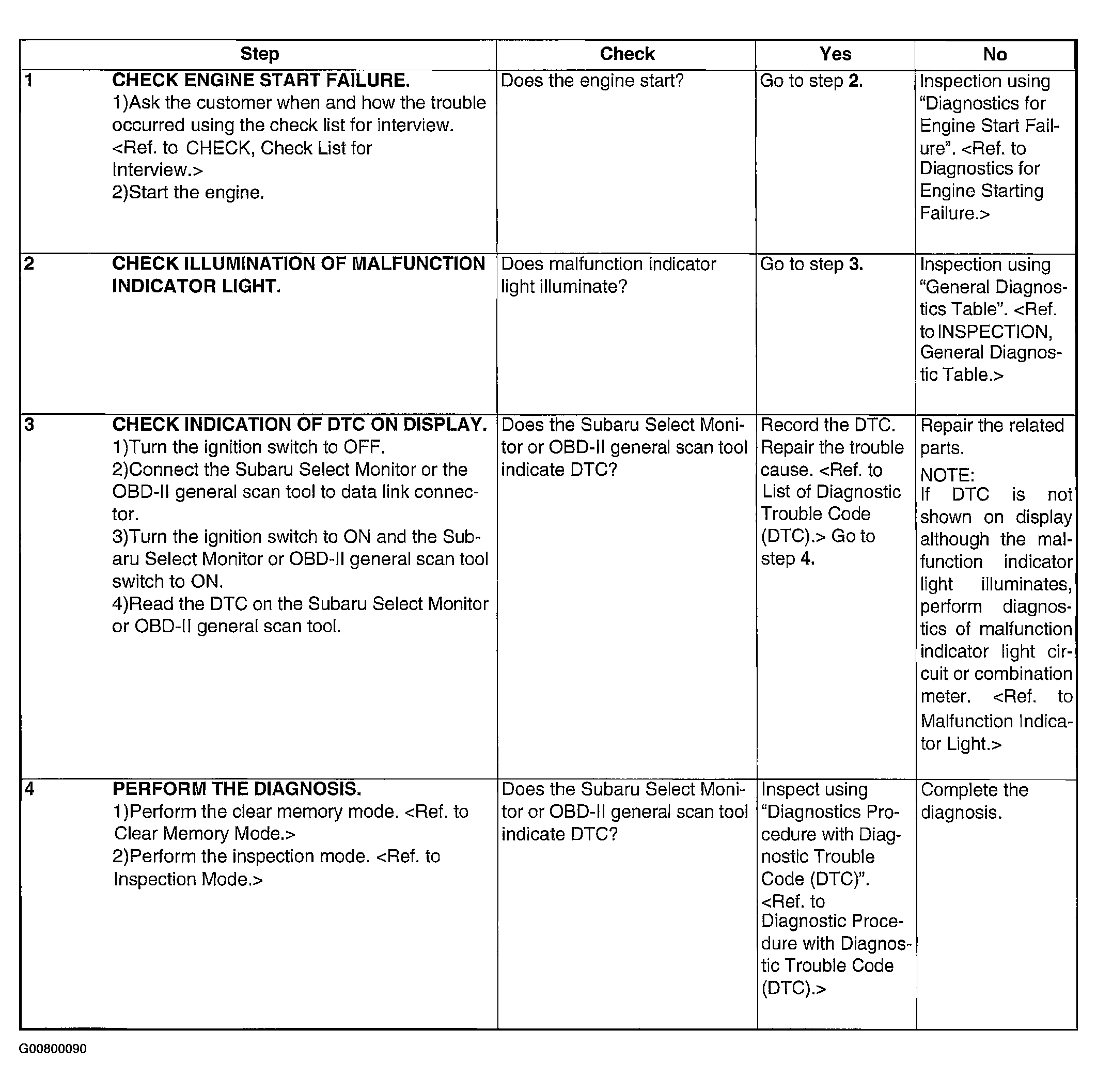

Fig 1: Basic Diagnostic Procedure Chart

G00800090

Courtesy of SUBARU OF AMERICA, INC.
