RH Side

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00800701Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the resonator chamber. < Ref. to REMOVAL , Resonator Chamber. >
  3. Remove the spark plug cords by pulling the boot, not the cord itself.

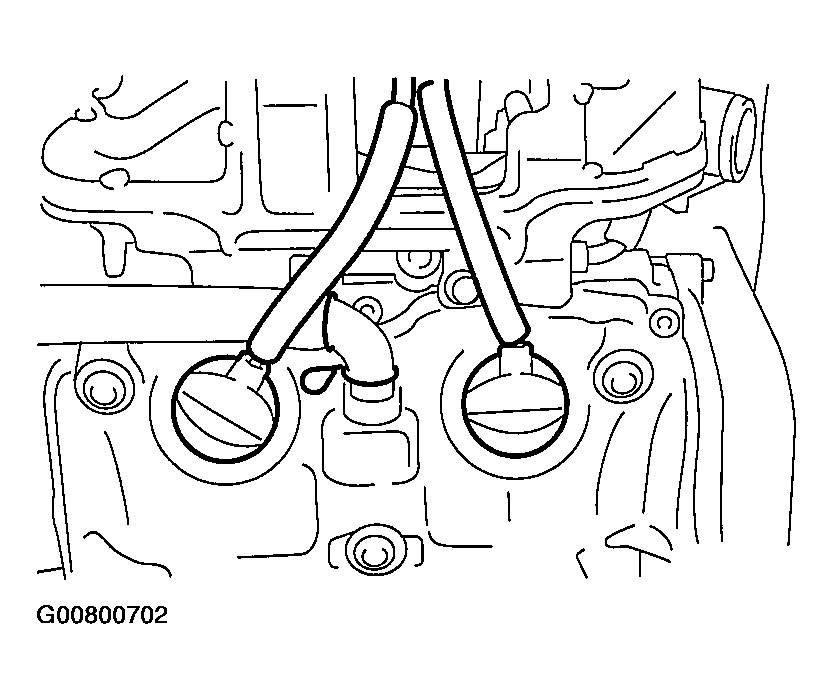

    Fig 2: Removing Spark Plug Cords By Pulling On Boot
    G00800702Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plugs using spark plug sockets.

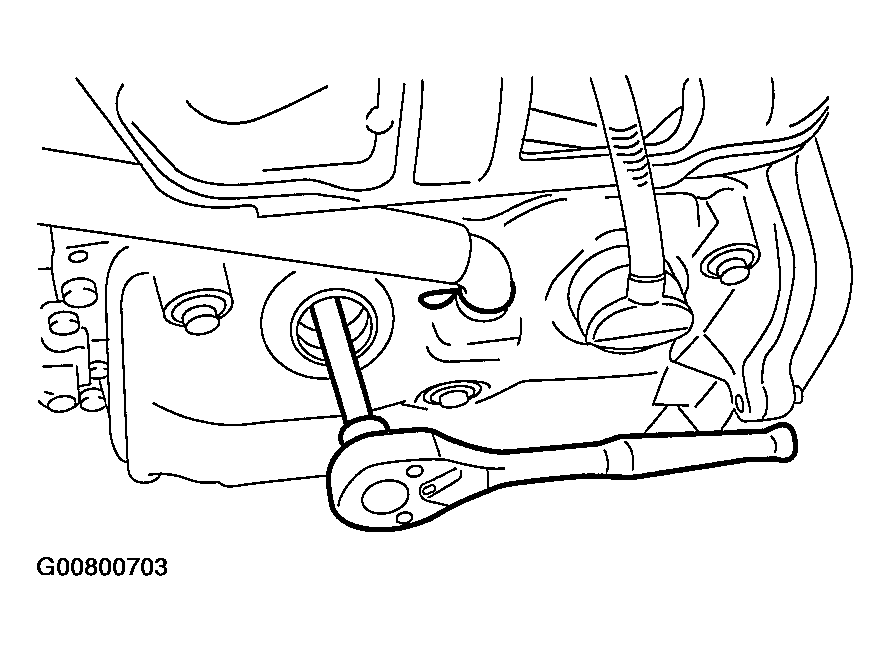

    Fig 3: Removing Spark Plugs Using Spark Plug Sockets
    G00800703Courtesy of SUBARU OF AMERICA, INC.
