LH Side

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00800704Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the washer motor connector.

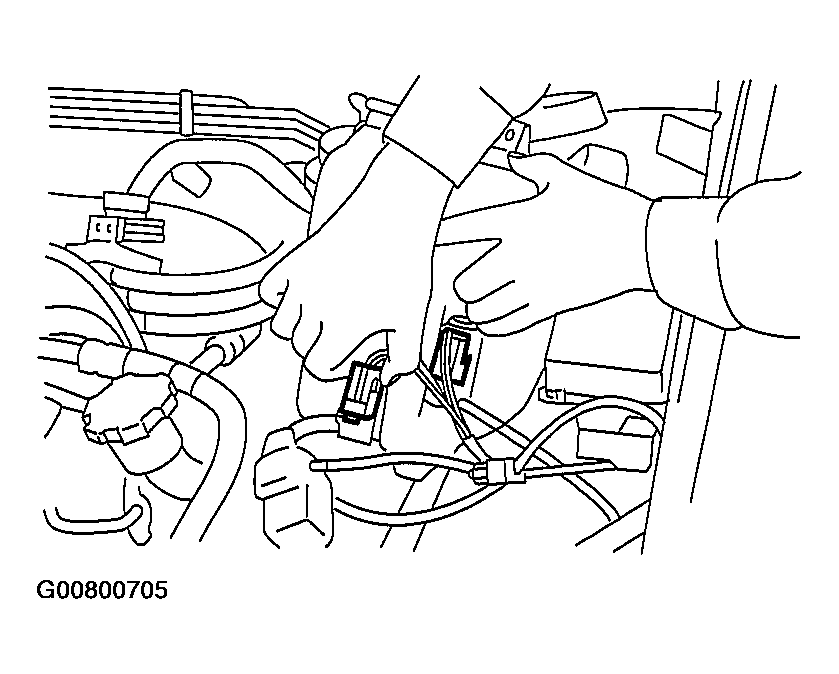

    Fig 2: Disconnecting Washer Motor Connector
    G00800705Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the rear window glass washer hose from washer motor, then plug the connection with a suitable cap.
  4. Remove the two bolts which hold the washer tank, then take the tank away from working area.

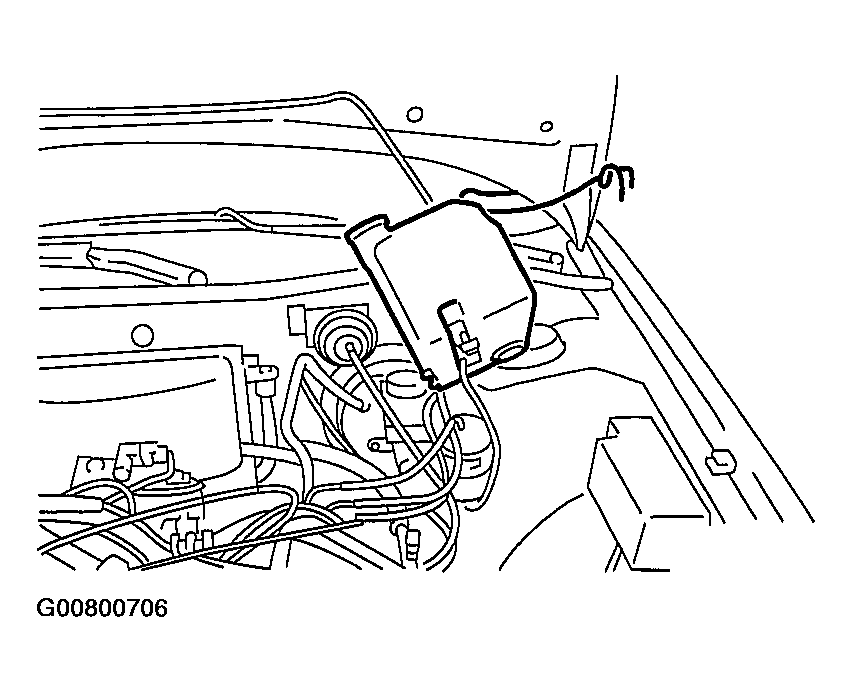

    Fig 3: Moving Rear Window Washer Tank Away From Work Area
    G00800706Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the spark plug cords by pulling the boot, not the cord itself.

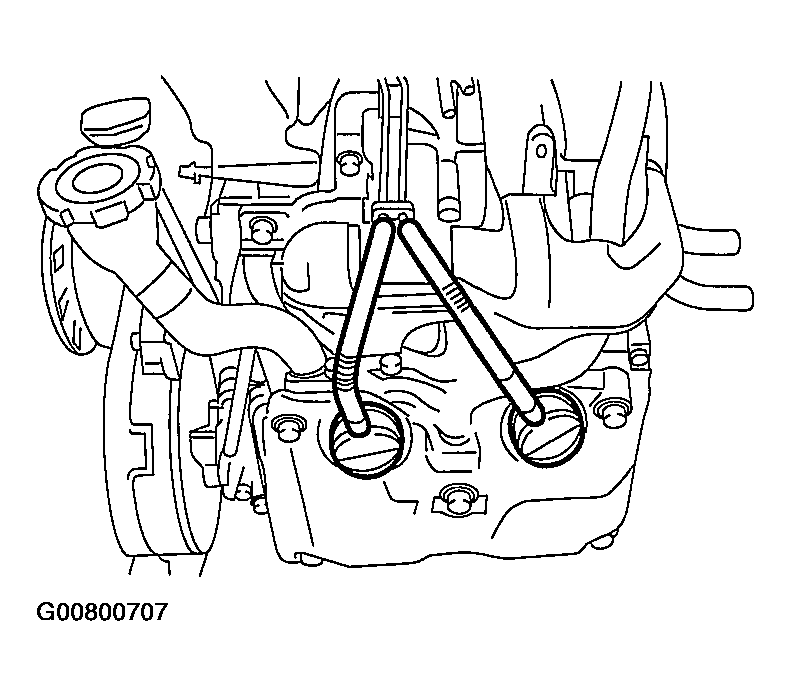

    Fig 4: Removing Spark Plug Cords By Pulling On Boot
    G00800707Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the spark plugs with spark plug sockets.

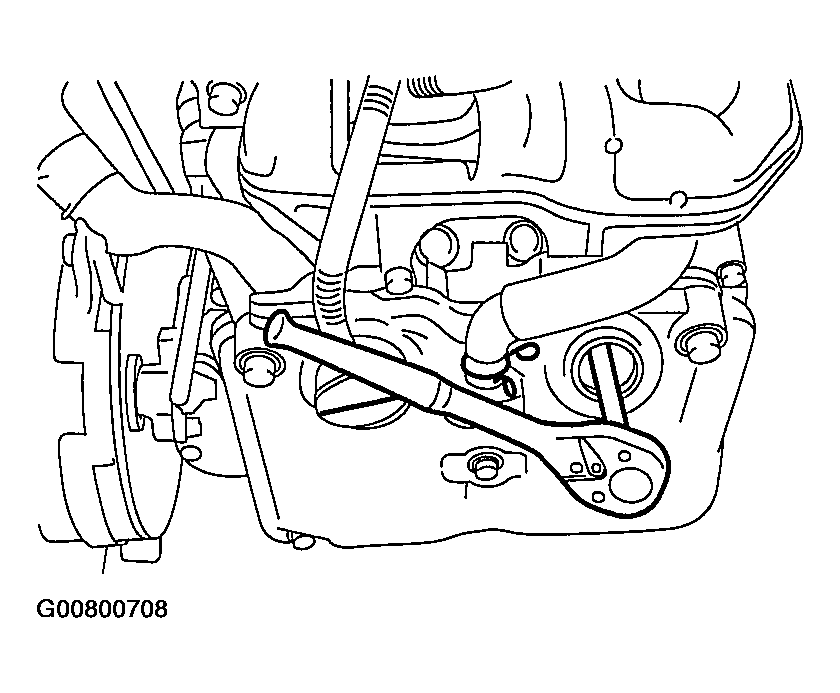

    Fig 5: Removing Spark Plugs With Spark Plug Sockets
    G00800708Courtesy of SUBARU OF AMERICA, INC.
