Spark Plug

The spark plug's thread diameter is 14 mm (0.551 in) and the gap is controlled to a value between 1.0 and 1.1 mm (0.039 and 0.043 in).

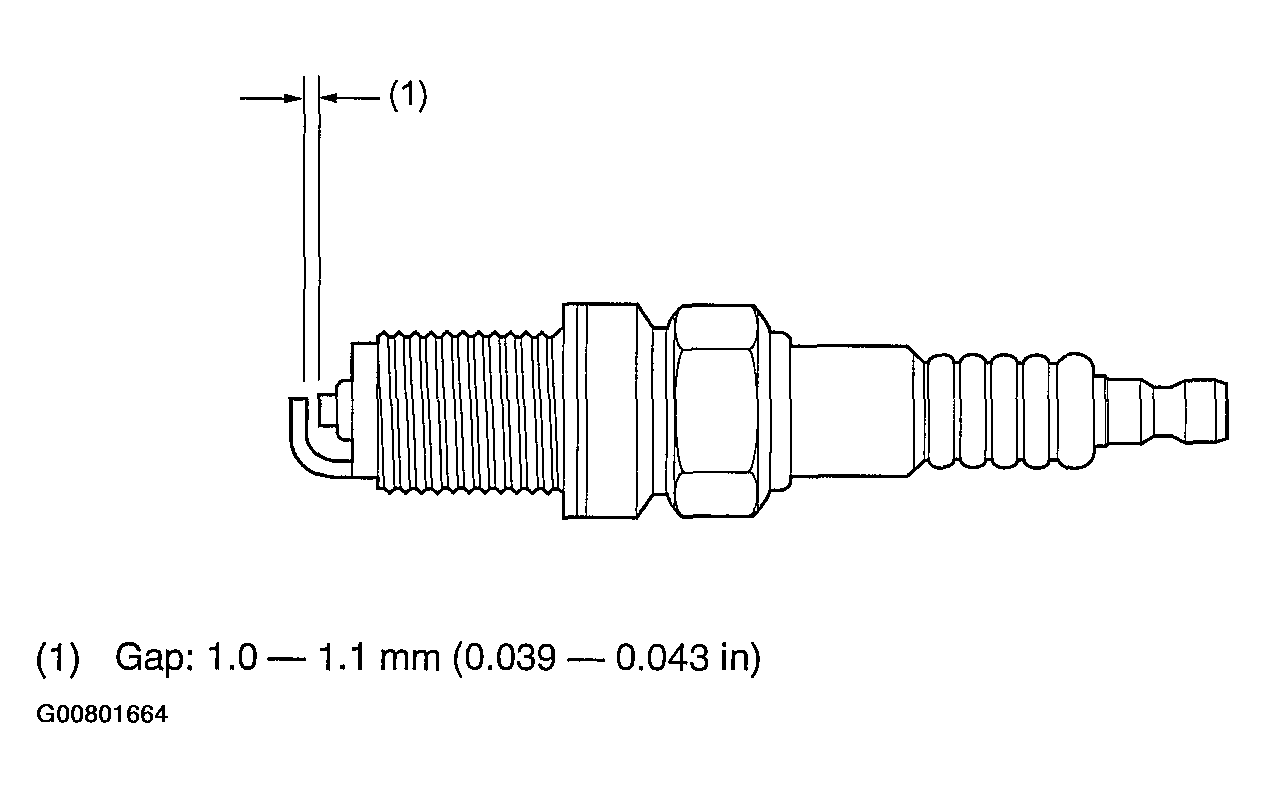

Fig 1: Identifying Spark Plug Gap
G00801664Courtesy of SUBARU OF AMERICA, INC.
