Manifold Absolute Pressure Sensor: Removal

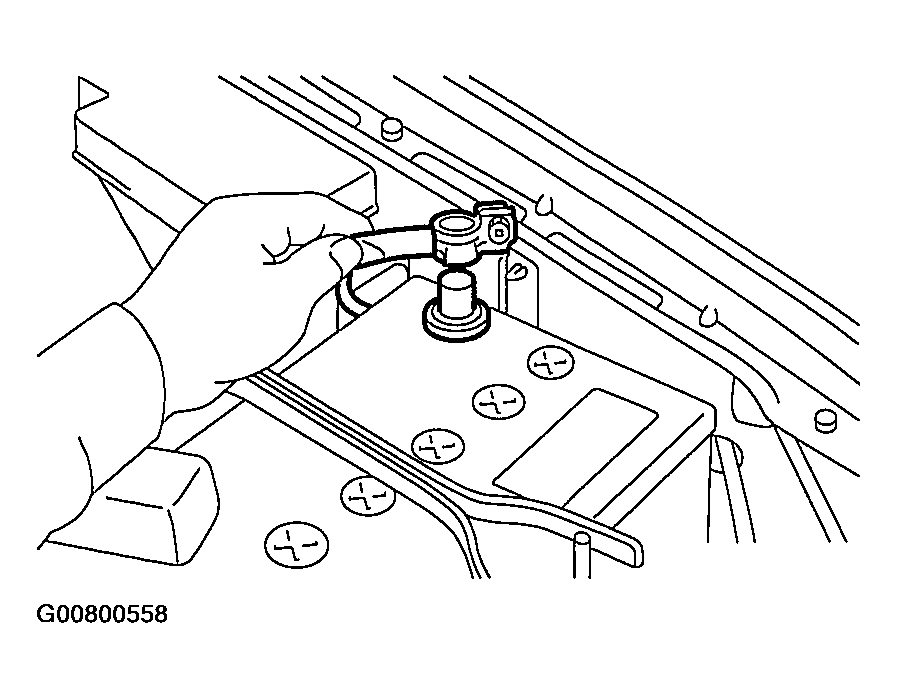

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.

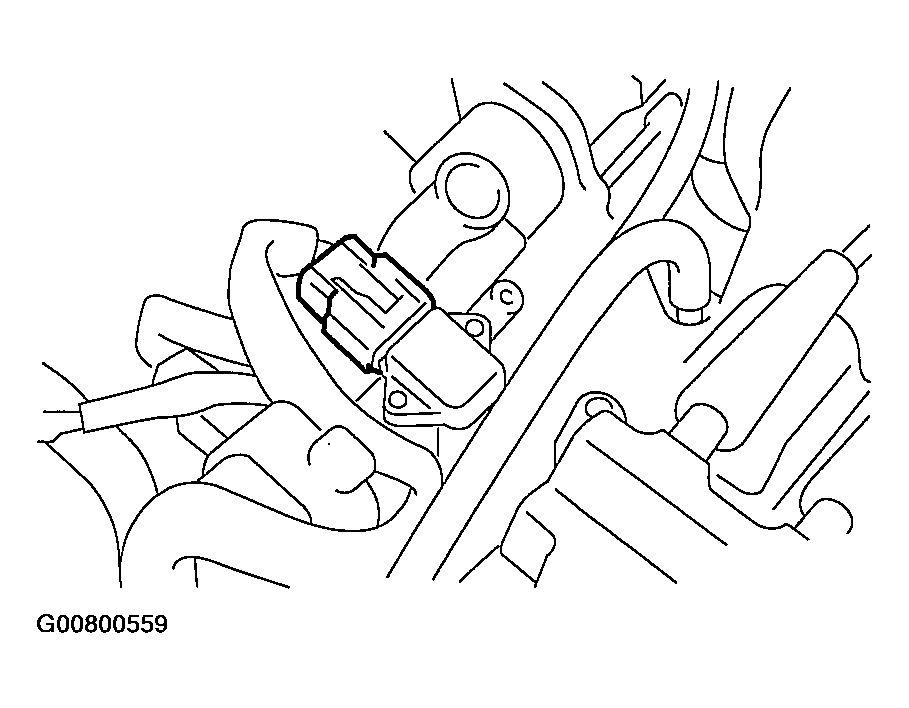

Disconnect the connector from the manifold absolute pressure sensor.

Fig 2: Disconnecting Connector From Manifold Absolute Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.

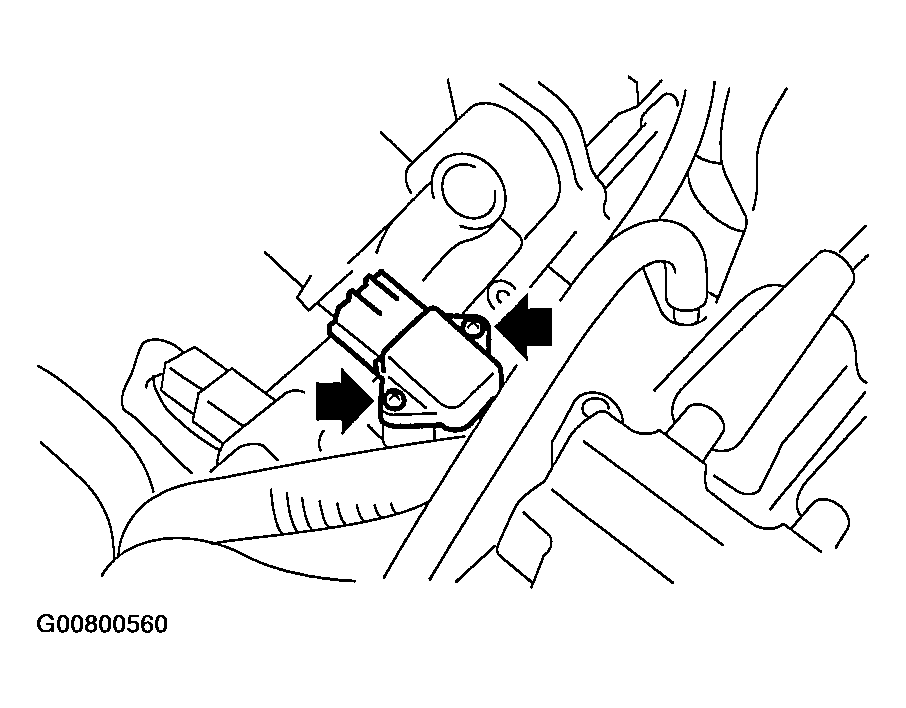

Remove the manifold absolute pressure sensor.

Fig 3: Removing Manifold Absolute Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
