Fuel Injection (Fuel Systems) (H4SO): General Description: Specifications

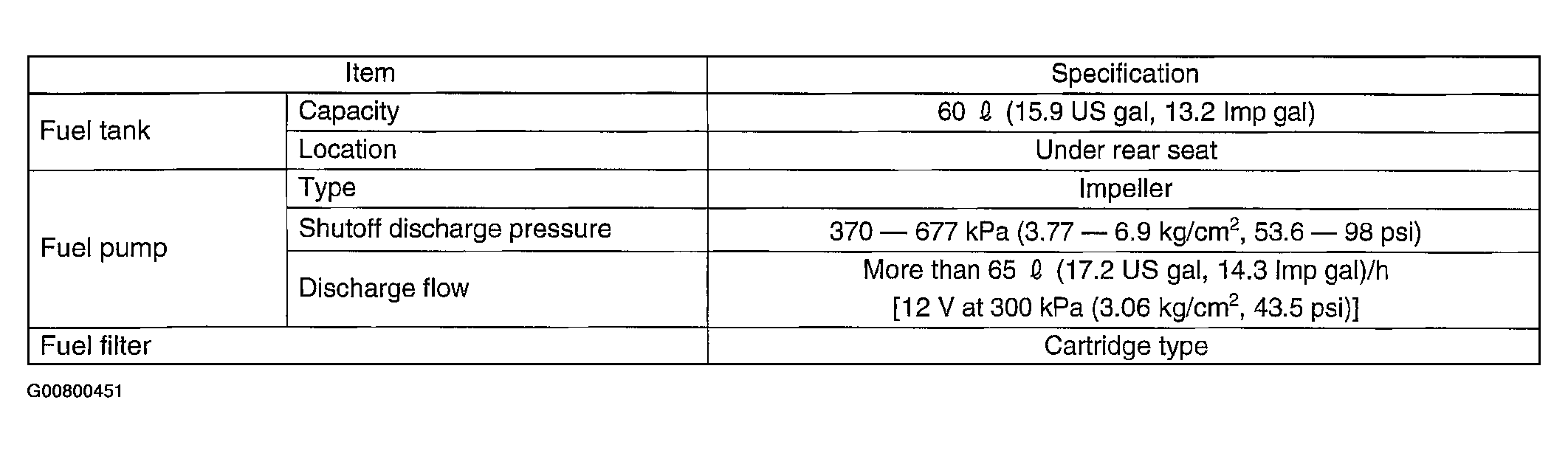

Fig 1: General Description Specifications Chart

G00800451

Courtesy of SUBARU OF AMERICA, INC.
