RH Side

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , Operation, Fuel.>
Open the fuel flap lid, and remove the fuel filler cap.
Disconnect the ground cable from battery.

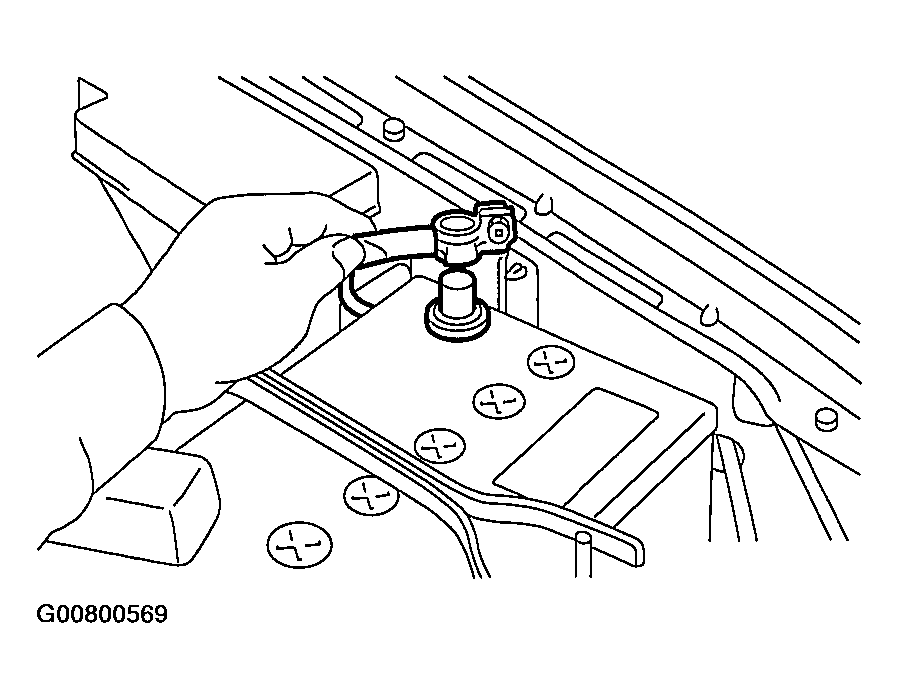

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the resonator chamber. < Ref. to REMOVAL , Resonator Chamber. >
Remove the spark plug cords from the spark plugs (#1 and #3 cylinders).

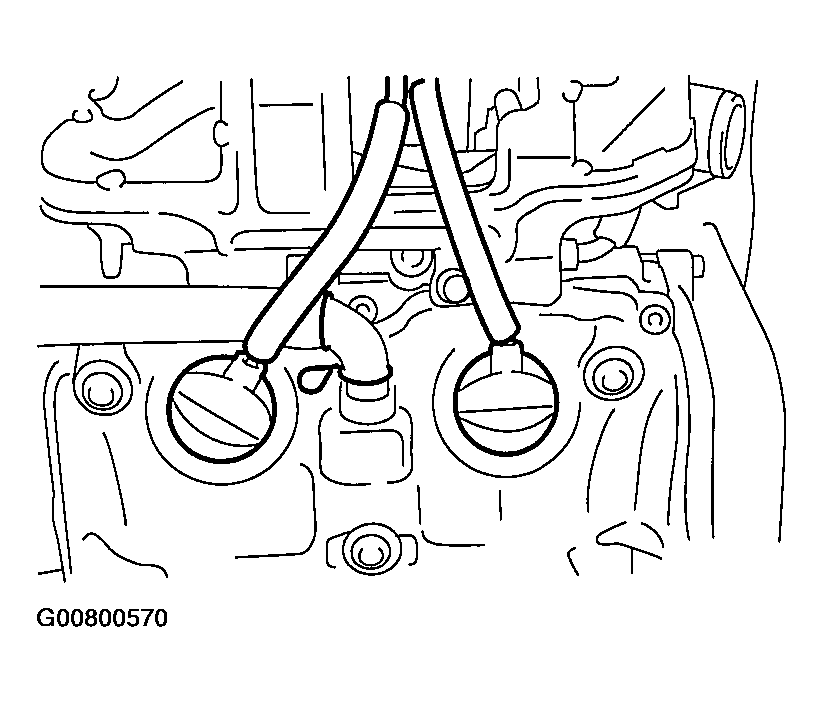

Fig 2: Removing Spark Plug Cords From Spark Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove the power steering pump and tank from the brackets.
1. Remove the front side V-belt. < Ref. to REMOVAL , V-belt. >
2. Remove the bolts which hold the power steering pipes onto the intake manifold protector.

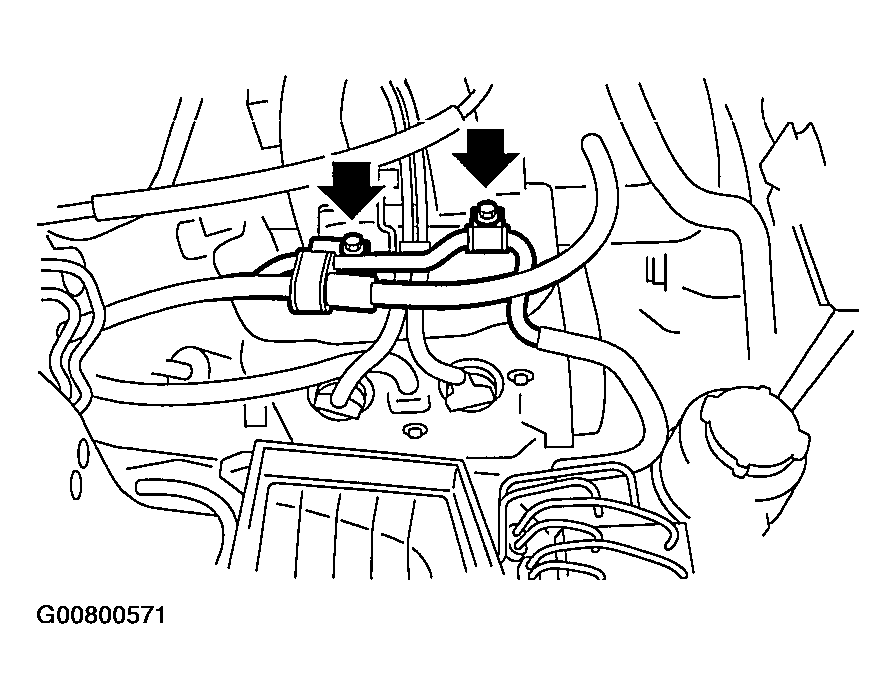

  Fig 3: Removing Bolts From Power Steering Pipes At Intake Manifold Protector
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the bolts which install the power steering pump to the bracket.

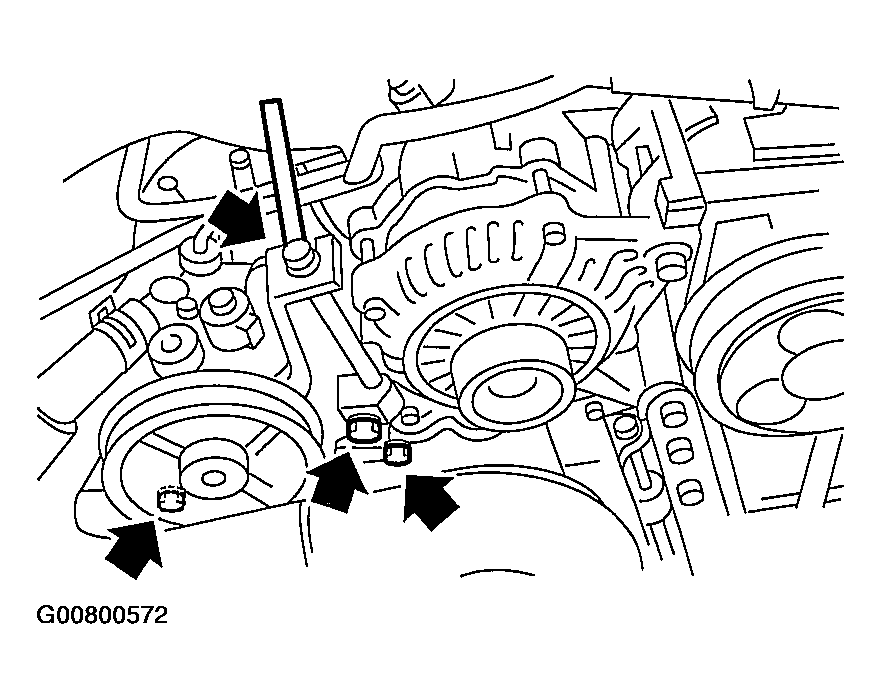

  Fig 4: Removing Bolts From Power Steering Pump To Bracket
  Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect the connector from the power steering pump switch.

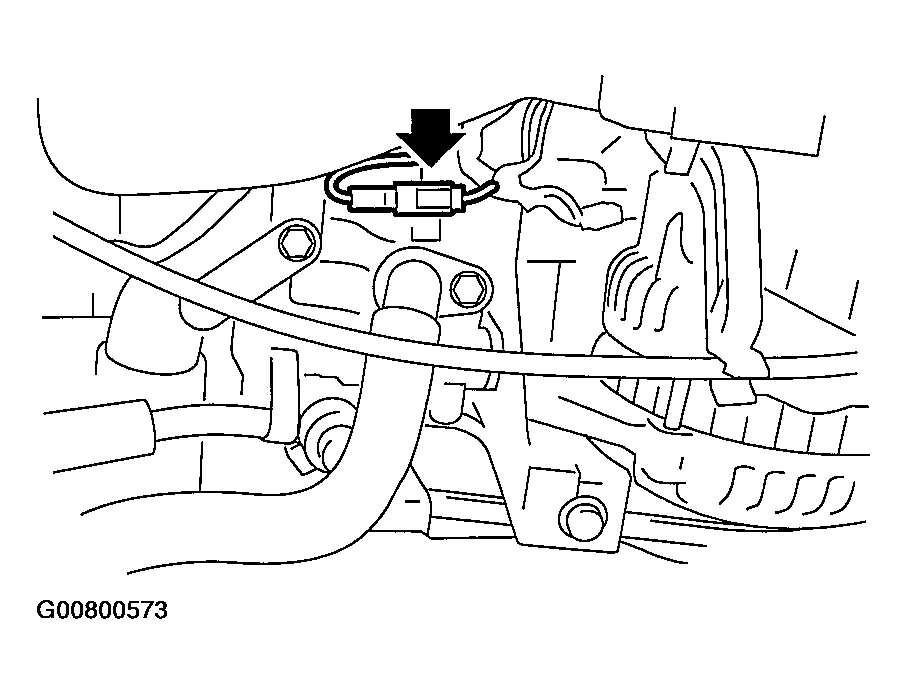

  Fig 5: Disconnecting The Connector From The Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.
5. Remove the reservoir tank from the bracket by pulling it upwards.

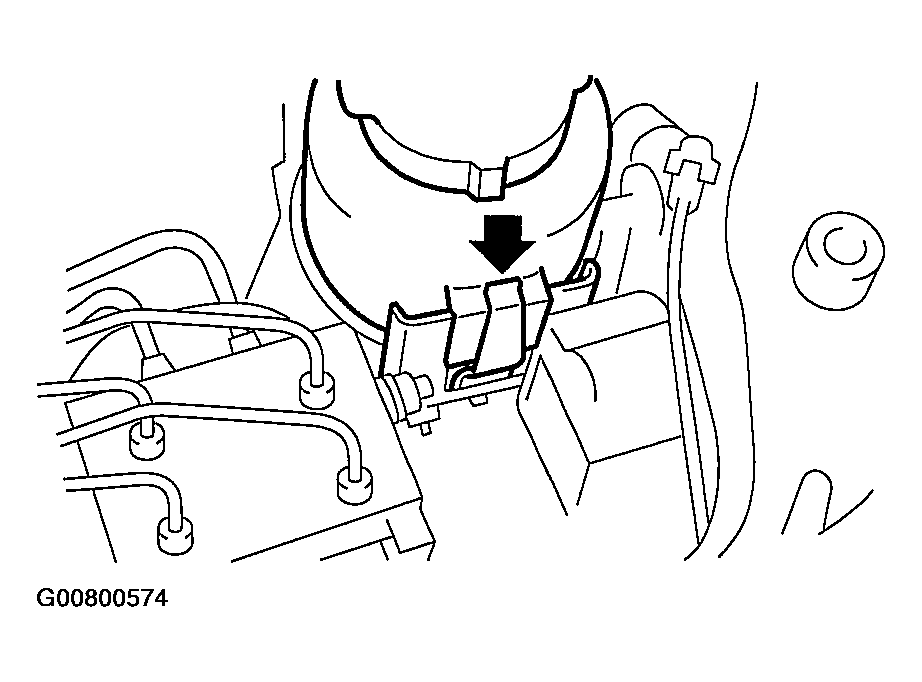

  Fig 6: Removing Reservoir Tank From Bracket
  Courtesy of SUBARU OF AMERICA, INC.
6. Place the power steering pump and tank on the right side wheel apron.

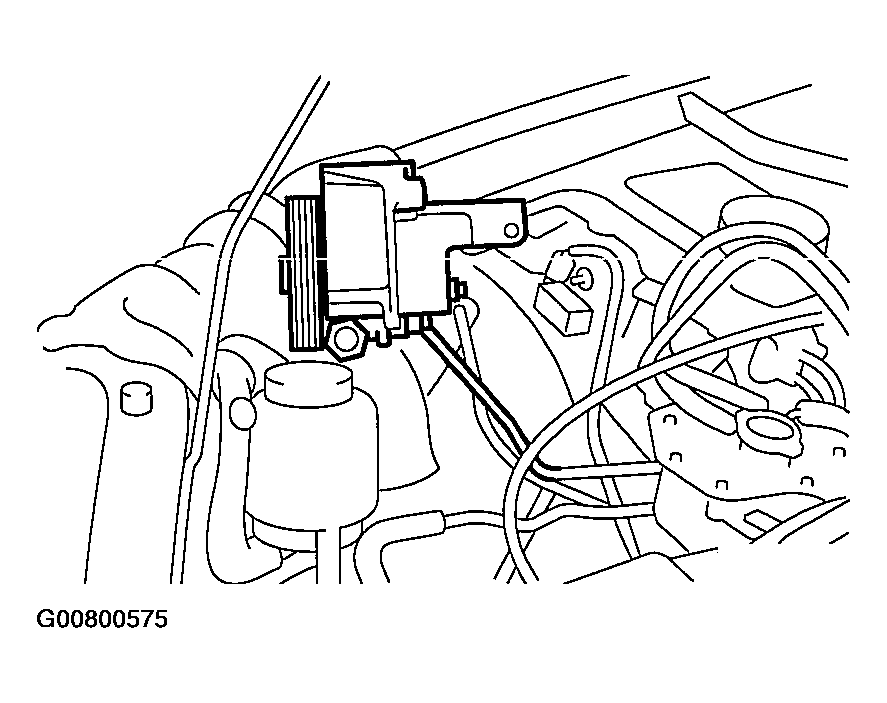

  Fig 7: Placing Power Steering Pump & Tank On Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector RH.

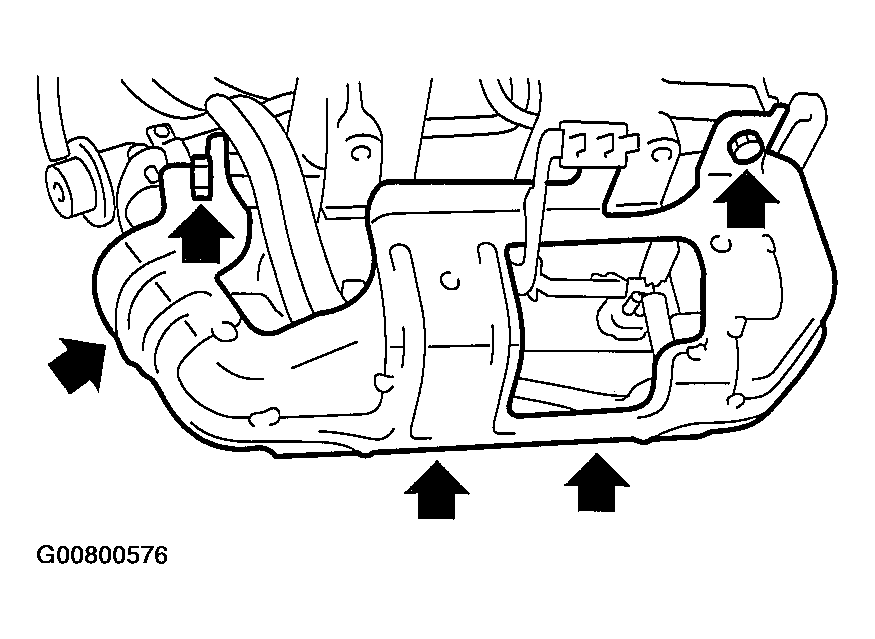

Fig 8: Removing Fuel Pipe Protector (RH Side)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors from the fuel injectors.

Fig 9: Disconnecting Connectors From Fuel Injectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds the fuel injector pipe to the intake manifold.

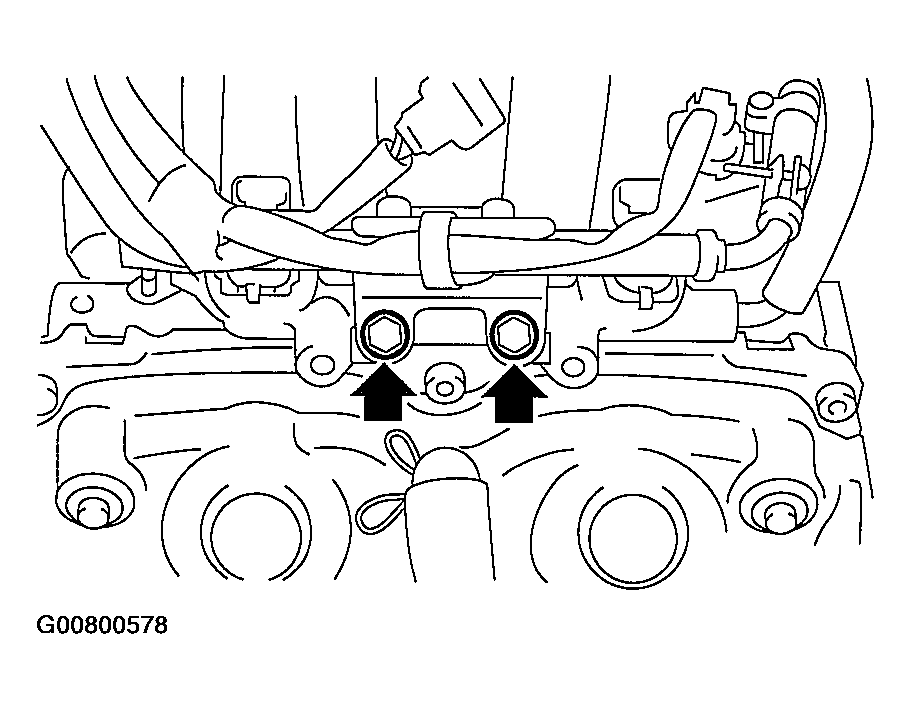

Fig 10: Removing Bolt From The Fuel Injector Pipe To Intake Manifold (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Removing Bolt From The Fuel Injector Pipe To Intake Manifold (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector from the intake manifold.
1. Remove the fuel injector securing clip.

  Fig 12: Removing Fuel Injector Securing Clip
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the fuel injector while lifting up the fuel injector pipe.

  Fig 13: Removing Fuel Injectors
  Courtesy of SUBARU OF AMERICA, INC.
