LH Side

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , Operation, Fuel.>
Open the fuel flap lid, and remove the fuel filler cap.

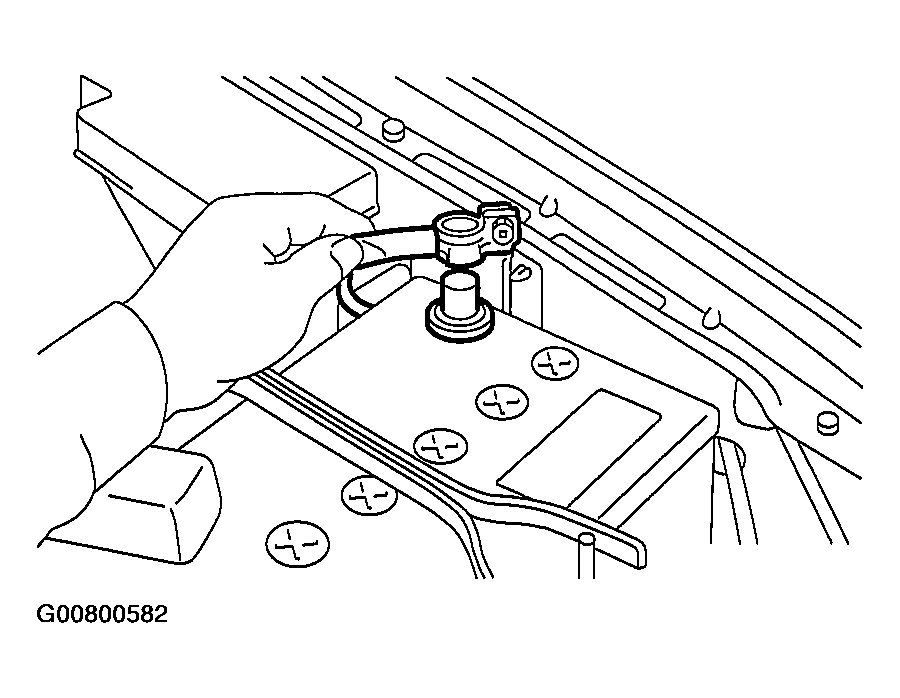

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.

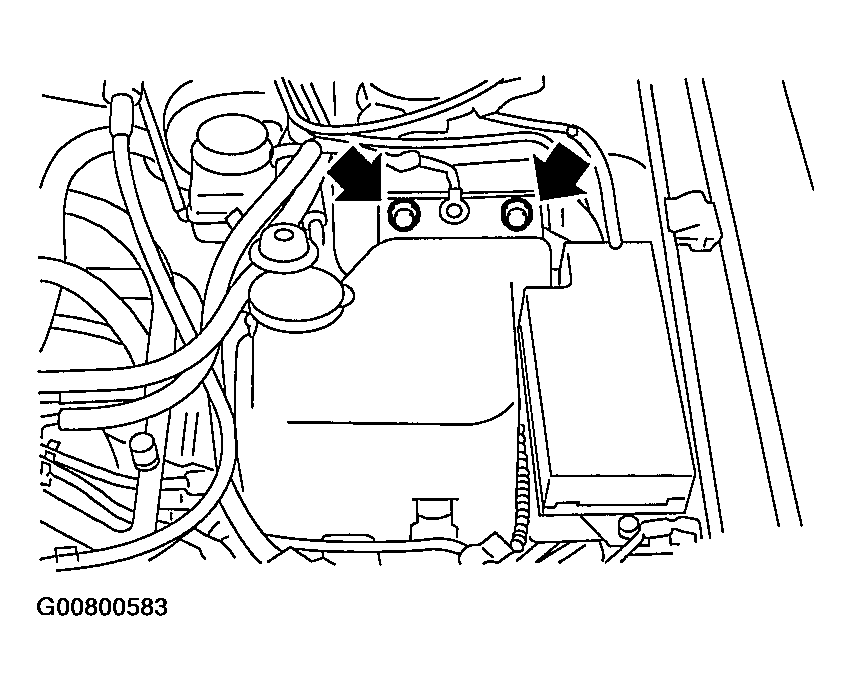

Remove the two bolts which install the washer tank on the body.

Fig 2: Removing Bolts From The Washer Tank On The Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the front window washer motor.

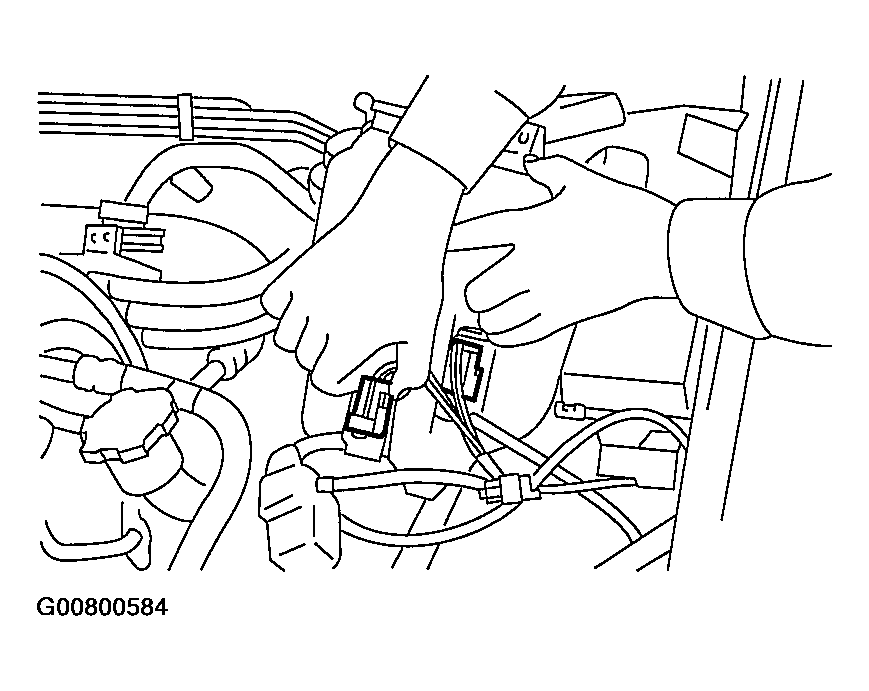

Disconnect the connector from the rear gate glass washer motor.

Fig 3: Disconnecting Connector From Rear Gate Glass Washer Motor
Courtesy of SUBARU OF AMERICA, INC.

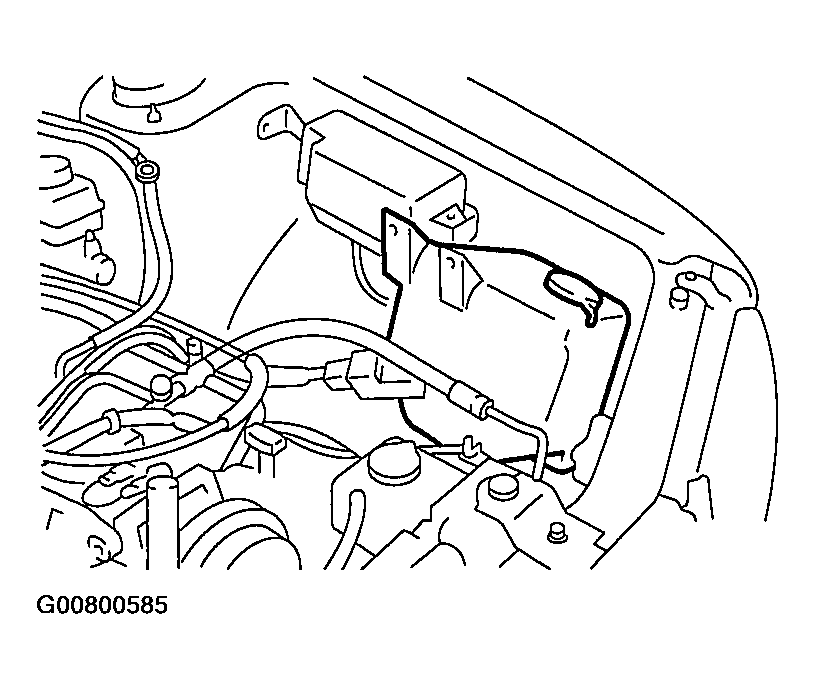

Disconnect the rear window glass washer hose from the washer motor, then plug the connection with a suitable cap.
Move the washer tank, and secure it away from the working area.

Fig 4: Disconnecting Rear Window Glass Washer Hose From Washer Motor
Courtesy of SUBARU OF AMERICA, INC.

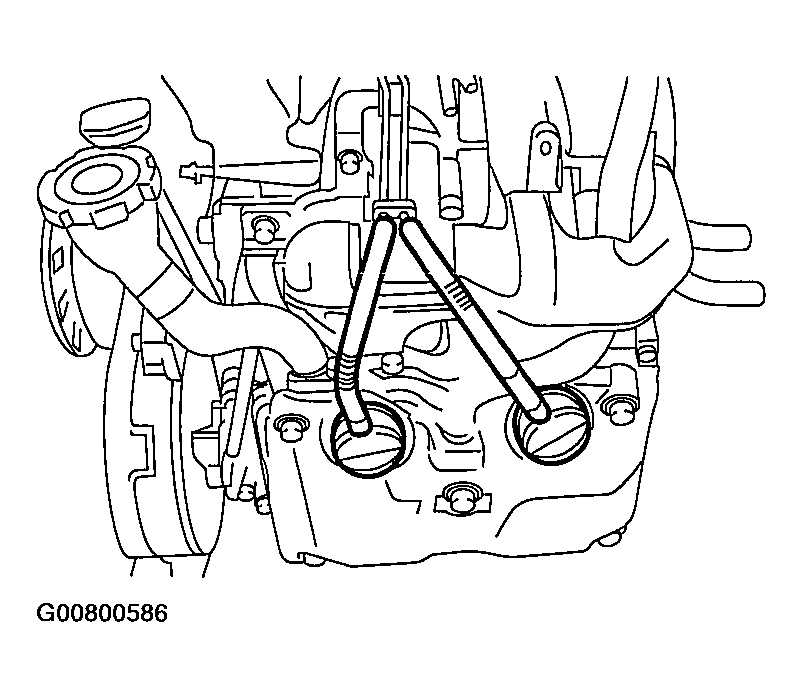

Remove the spark plug cords from the spark plugs (#2 and #4 cylinders).

Fig 5: Removing Spark Plug Cords From Spark Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe protector LH.

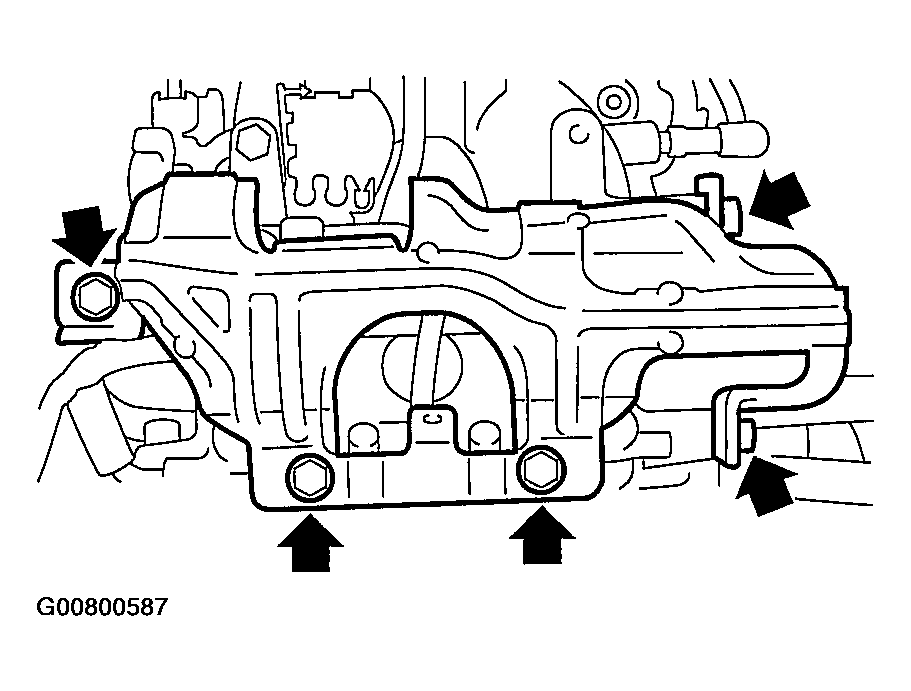

Fig 6: Removing Fuel Pipe Protector LH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors from the fuel injectors.

Fig 7: Disconnecting Connectors From Fuel Injectors
Courtesy of SUBARU OF AMERICA, INC.

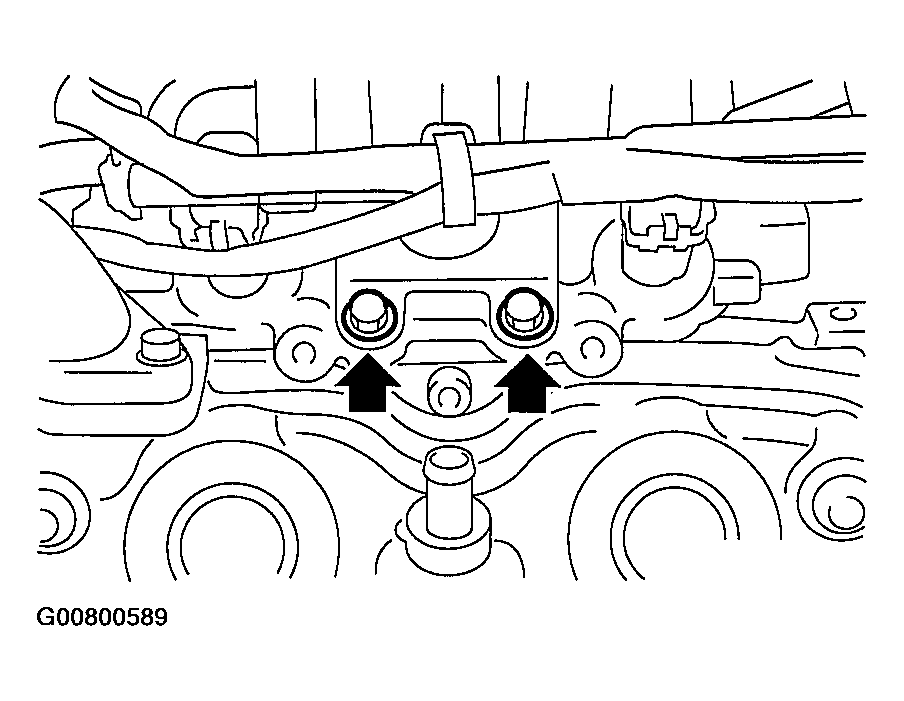

Remove the bolt which holds the fuel injector pipe to the intake manifold.

Fig 8: Removing Bolt From The Fuel Injector Pipe To Intake Manifold (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Removing Bolt From The Fuel Injector Pipe To Intake Manifold (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

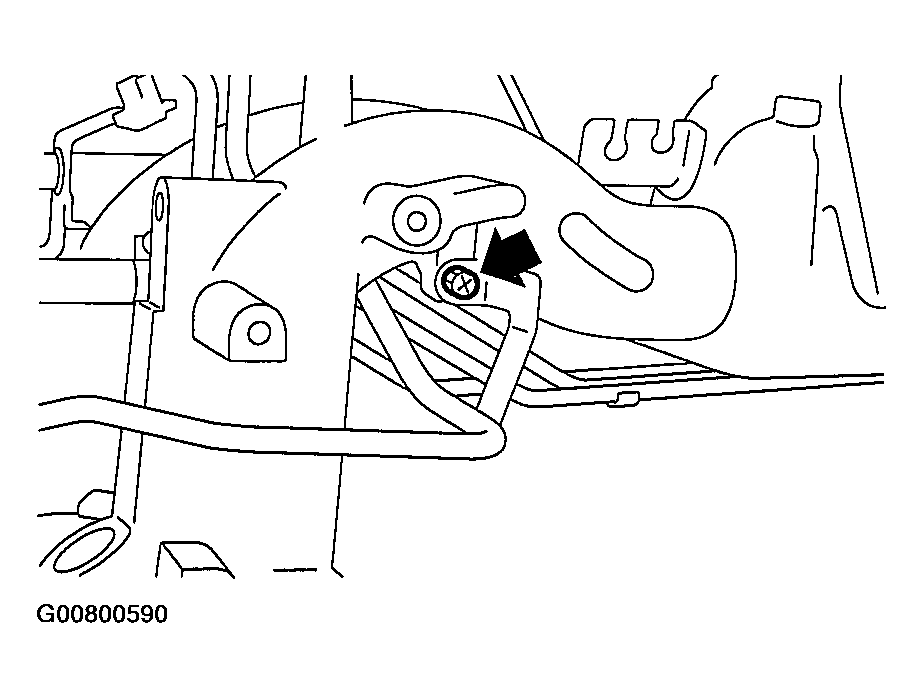

Remove the bolt which holds the fuel pipe on the left side intake manifold.

Fig 10: Removing Bolt From The Fuel Pipe On Left Side Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel injector from the intake manifold.
1. Remove the fuel injector securing clip.

  Fig 11: Removing Fuel Injector Securing Clip
  Courtesy of SUBARU OF AMERICA, INC.

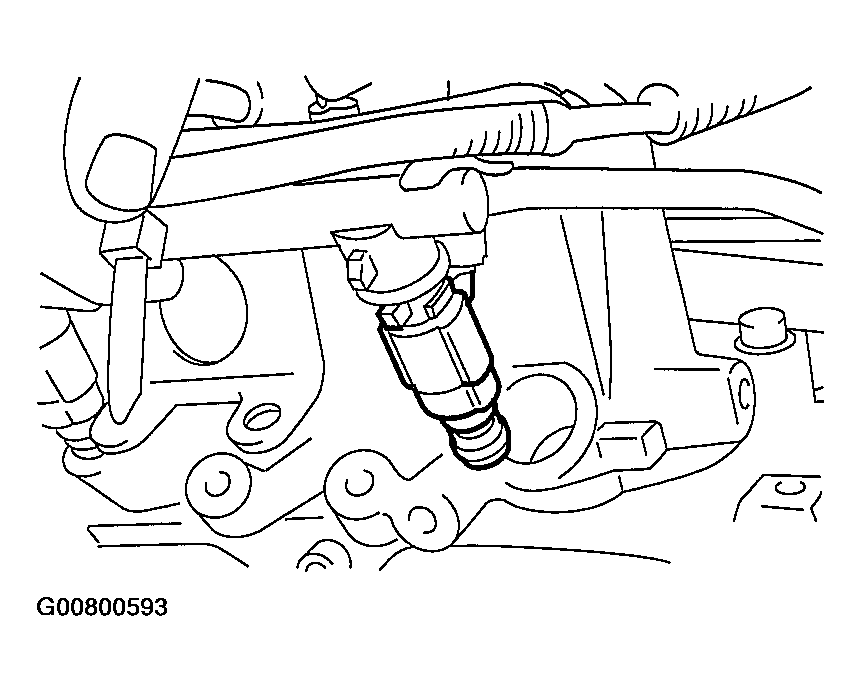

2. Remove the fuel injector while lifting up the fuel injector pipe.

  Fig 12: Removing Fuel Injector
  Courtesy of SUBARU OF AMERICA, INC.
