LH Side

Install in the reverse order of removal.

CAUTION: Replace the O-rings with new ones.

Fig 1: Replacing O-Rings

G00800599

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

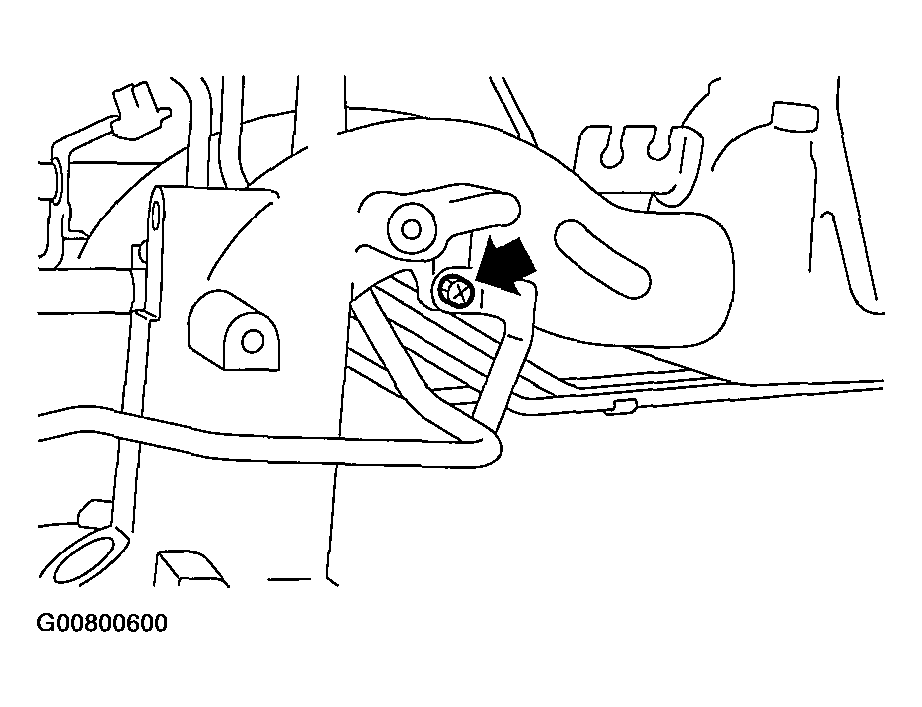

Fig 2: Tightening Bolts (LH Side) (1 Of 4)

G00800600

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

Fig 3: Tightening Bolts (LH Side) (2 Of 4)

G00800601

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

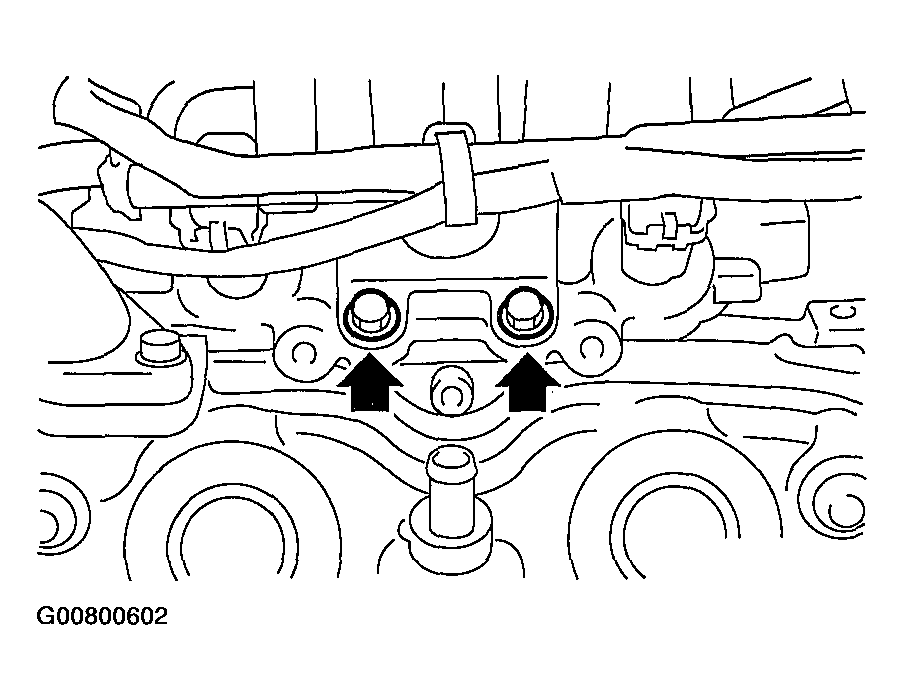

Fig 4: Tightening Bolts (LH Side) (3 Of 4)

G00800602

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

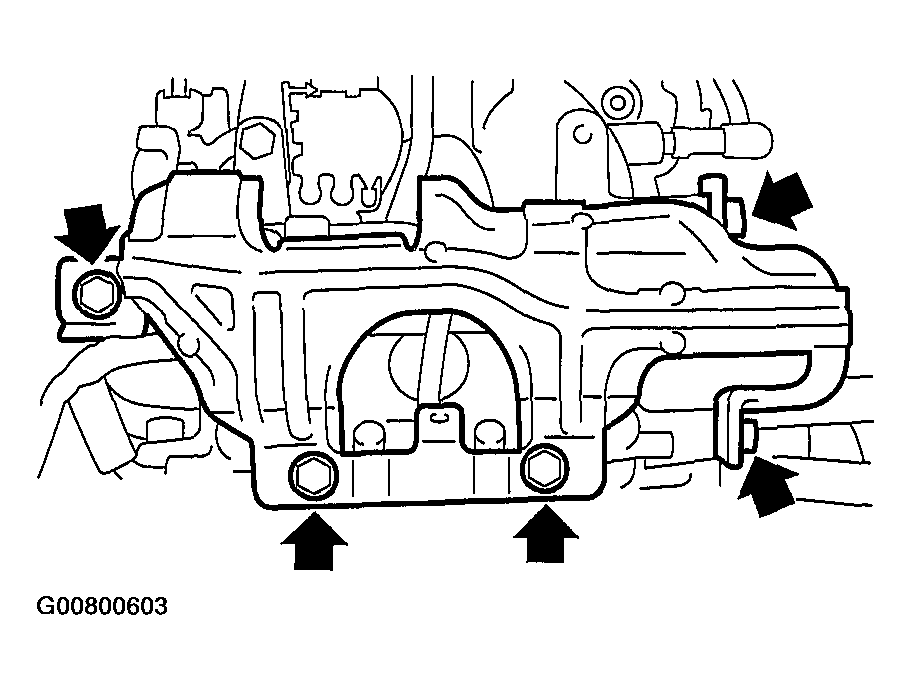

Fig 5: Tightening Bolts (LH Side) (4 Of 4)

G00800603

Courtesy of SUBARU OF AMERICA, INC.
