Fuel Filler Pipe: Assembly

Install the shut valve on the fuel filler pipe. < Ref. to INSTALLATION , Shut Valve. >
Connect the evaporation hose to the fuel filler pipe.

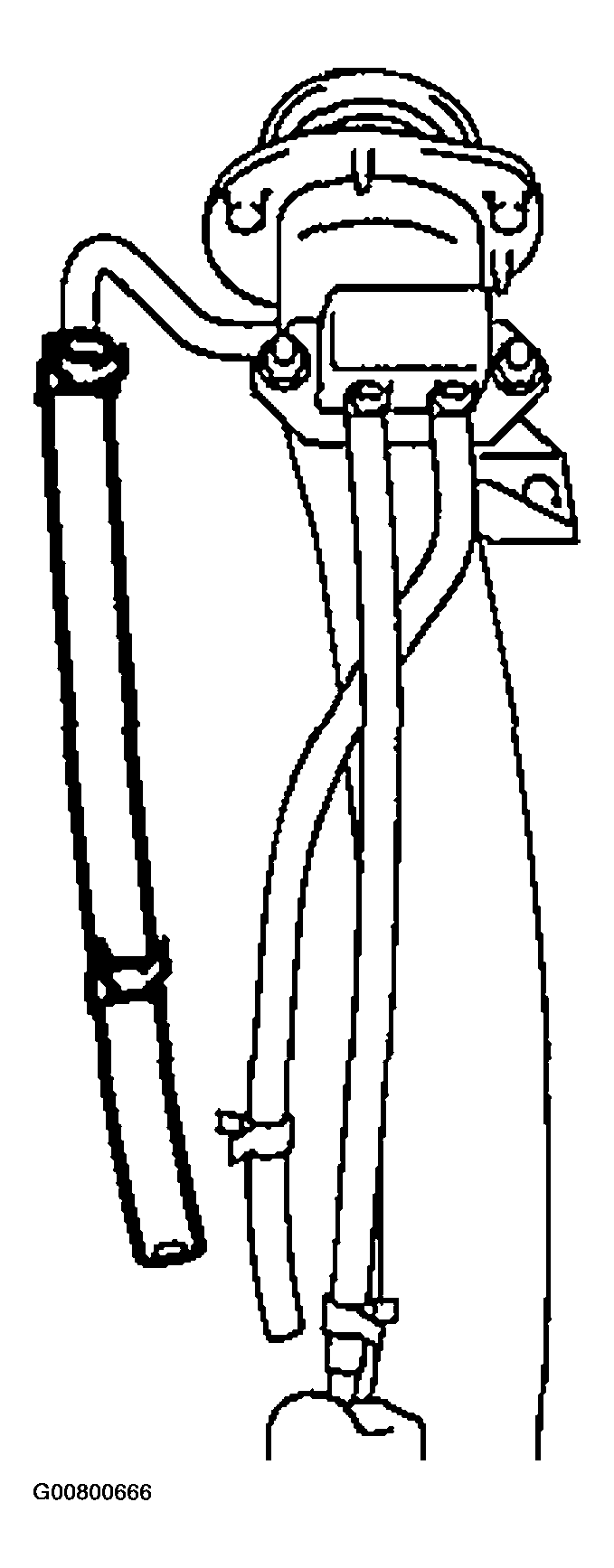

Fig 1: Connecting Evaporation Hose To Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Connect the evaporation hose to the evaporation pipe.

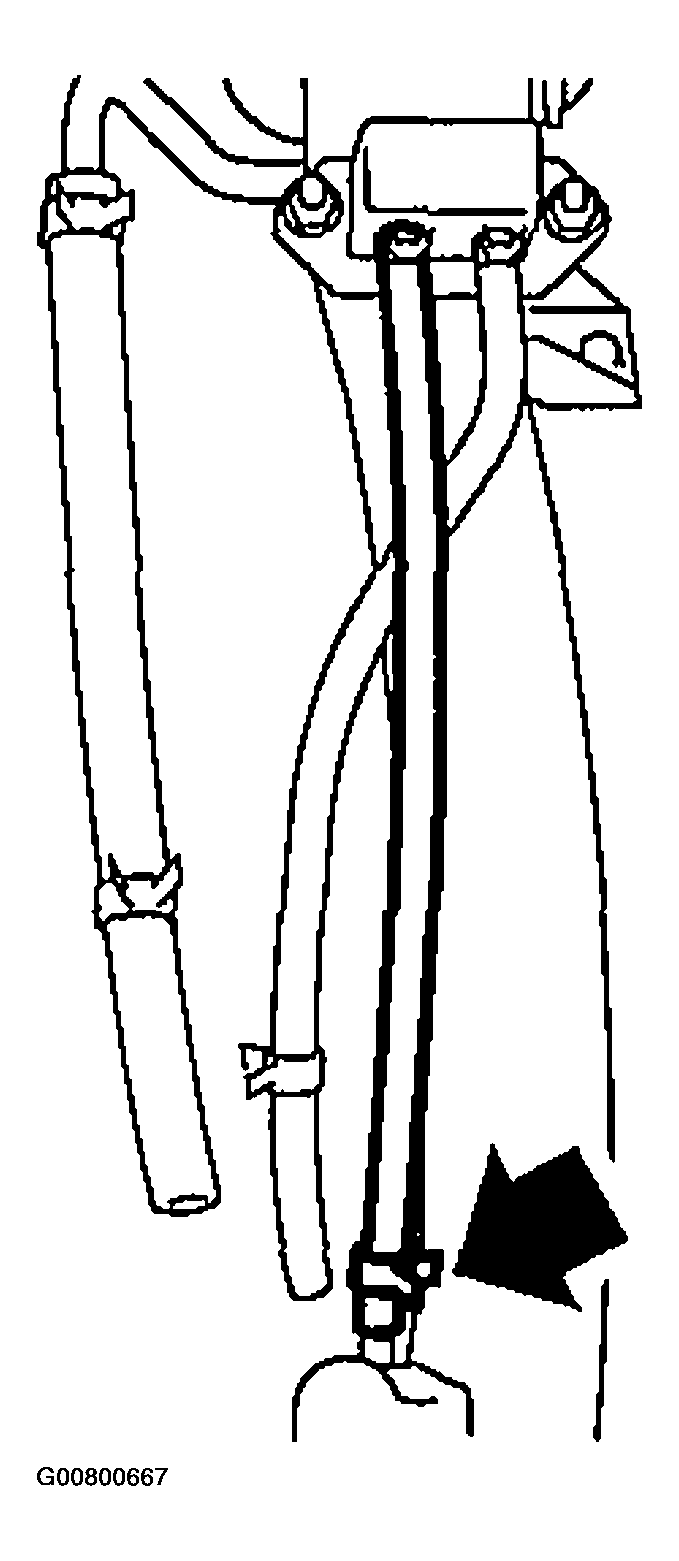

Fig 2: Connecting Evaporation Hose To Evaporation Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the evaporation pipe to the fuel filler pipe.

Fig 3: Installing Evaporation Pipe To Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
